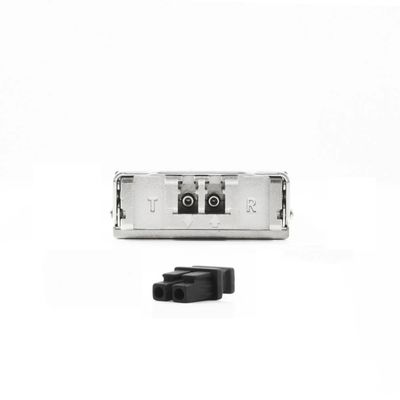

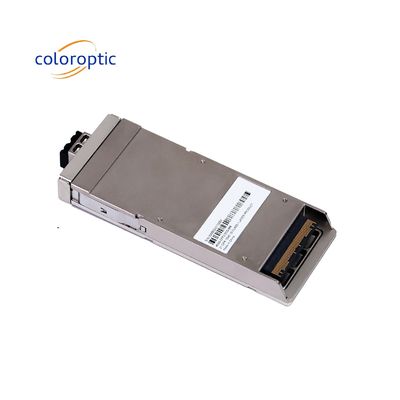

Coherent 400G CFP2 Transceiver DCO Digital Coherent Optics With Marvell DSP
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-C24HCOMC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 400G | Wavelength: | Coherent |
|---|---|---|---|
| Distance: | 80~up Km | Connector: | Duplex LC |
| Form Factor: | CFP2 | Temperature: | 0~70°C |
| DDM: | Yes | Voltage: | 3.3V |
| Protocals: | MSA | Warranty: | 3 Years |
| Highlight: | Coherent CFP2 Transceiver,400G CFP2 Transceiver |
||
Product Description
Coherent 400G CFP2 DCO (Digital Coherent Optics) Transceiver With Marvell DSP
This is a portfolio of digital coherent optical transceiver (or transponder) modules designed for 400G Ethernet and OTN links reach up to 600km over single mode fiber, operating at full C-band DWDM wavelengths with 75GHz channel spacing (up to 64 channels). These 400G coherent optical modules are the ideal solution for long-haul metro DCI and 5G backhaul applications.
Key Features
Application
Product Details
| 400G CFP2 DCO | |||||||
| Features: |
|
||||||
| 7nm Marvell DSP | |||||||
| C band:191.3 ~ 196.1THz, Flex Grid | |||||||
| Support Line side: | |||||||
|
400G PS-16QAM SDFEC |
|||||||
| Support Flexible client-side: | |||||||
| 4*OTU4/1*400GE/4*100GE for 400G 2*OTU4/2*100GE for 200G |
|||||||
| l CFP MSA IEEE802.3 Clause 45 compliant MDIO | Applications: | ||||||
| l Compliant to OIF-CFP2-DCO-01.0 | •OTN | ||||||
| l 104pin CFP2 MSA connector | •Metro | ||||||
| l 0~70℃ case temperature | |||||||
| l Hot Swappable | |||||||
| Main Parameters: | |||||||
| Parameter | Symbol | Min | Typical | Max | Units | Note | |
| Operating Case Temperature | TOP | 0 | 70 | degC | |||
| Operating Input Optical Power of Signal | Psig | -12 | 0 | dBm | |||
| Transmitter output power range | Pout | -8 | 0 | 5 | dBm | ||
| Frequency Range | f | 191.3 | 196.1 | THz | |||
| Receiver Sensitivity | SEN | -20 | dBm | ||||
| OSNR sensitivity | OSNR | 22 | dB/0.1nm | ||||
| Power Consumption | 25 | W | |||||
|
|
