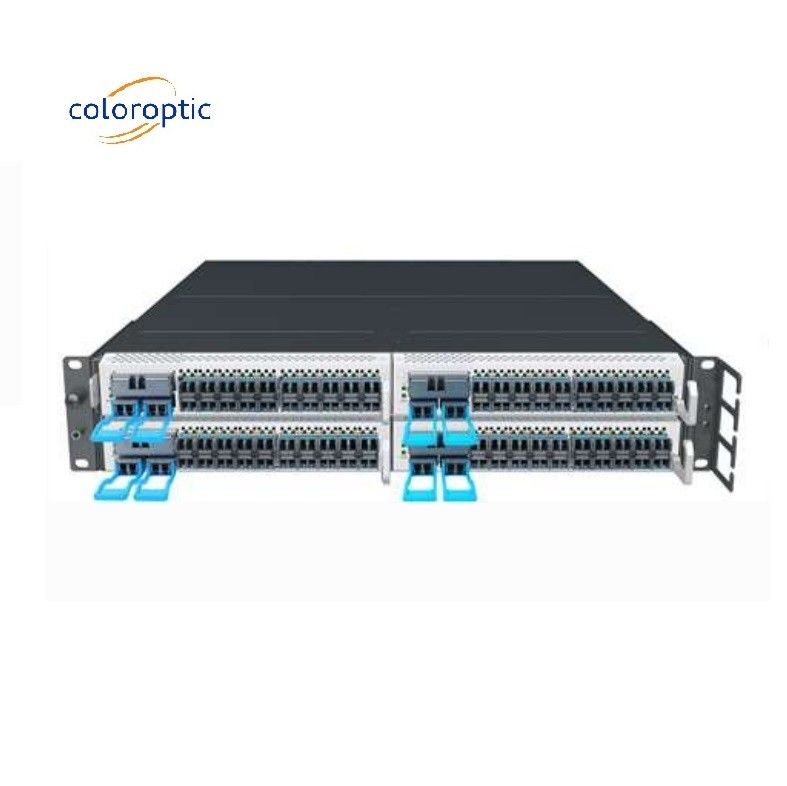

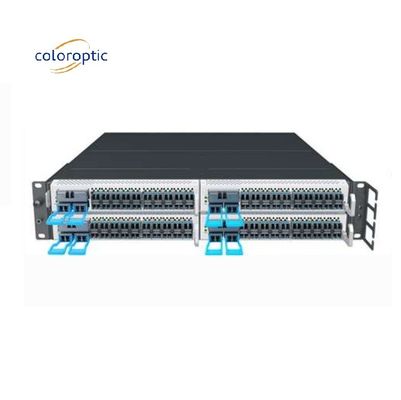

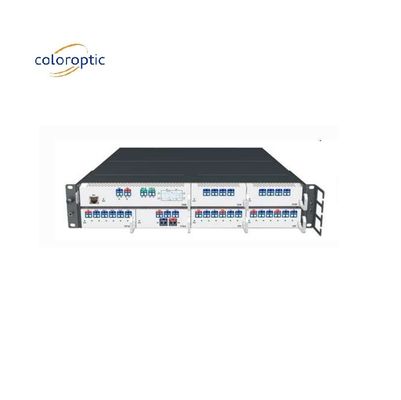

2 RU Core Network Switch QSFP28 SFP+ For Data Center Interconnection
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | CE |
| Model Number: | CO-T512 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | USD |
| Packaging Details: | Cartons |
| Delivery Time: | 5DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Height: | 2 RU | Power Supply: | AC100-240V 50/60Hz |
|---|---|---|---|
| Interfaces: | QSFP28, SFP+ | Dimensions: | 88 X 440x 480mm (h×w×d) |
| Working Temperature Range: | -5℃～+55℃ | PoE Standard: | IEEE 1588-2008； IEEE 1588-2019 |
| Management: | CLI / SNMP / TNMS | Power Over Ethernet: | Yes |
| Highlight: | 2 RU Core Network Switch,SFP+ Core Network Switch,2 RU QSFP28 Switch |
||
Product Description
Core Network Switch For Data Center Interconnection With Transponder & Optical Line Modules And Muxponder Modules
Product Description:
T512 data center interconnect and metro core network products are industry-leading, modular, disaggregated, high-capacity next-generation optical transport equipment. Its flexible networking capabilities, variety of service interfaces, multiple power suplliers and make it suitable for large, medium and small data center interconnection, metro and wide area networks, as well as enterprise networks and computing center interconnection and backup. The equipment can form point-to-point WDM transmission and single span or multi-span or regeneration networks, FOADM or ROADM linear networks as well as full-mesh ROADM networks.
Features:
- 2RU chassis with 480mm in depth, supporting 4/8 service slots. The air flow from the front to back in and backward. The same chassis for both transponders and optilcal line system.
- Supports 220V AC, high voltage DC, 48V DC power suppliers.
- Support redundancy of main control, power supply and fan.
- Single chassis support total 3.2T transmission capacity with 200G/400G per wavelength coherent optical transmission technology in the modulation format of QPSK, 16 QAM and other coding modes.
- Support 100GE, 100GE FlexE, OTU4, 10GE, OTU2, STM64, 10G WAN, 8G~32G FC and other service interfaces.
- Flexible optical layer, support 48/96 waves, FOADM, and ROADM with tunable channel spacing 50GHz/75 GHz/100 GHz.
- Support online OTDR/OCM diagnosis and 1588 clock synchronization
- Support protection of OTS, OMS, and OCH with absolute and relative threshold value
- Unified network management, providing NETCONF / CLI / TELEMETRY / OpenConfig for easy integration with 3rd party system.
Technical Parameters:
|
TECHNICAL SPECIFICATIONS Physical Dimensions
System Configuration and Modularity
Line Side Interfaces
Client Side Interfaces
Optical Line Modules
|
|
Electrical Power and FANs
Timing and Synchronization
Management and Console Ports
Regulatory and Compliance
Enviormental
|
Applications:
|
Typical application 1: Multi-span point-to-point data center interconnection
|
|
Typical application 2: Ring-based metro core network
|
Support and Services:
We provide technical support and service for Poe Switches products. Our team of experienced professionals is available to assist you with installation, maintenance, and troubleshooting. We also provide regular updates and software upgrades to ensure that your Poe Switches products are running optimally.
Our support team is available 24 hours a day, 7 days a week, to assist you with any questions or issues that may arise. We also offer remote access to our technicians to provide the fastest and most efficient support possible.
We also provide comprehensive training and educational materials to help you get the most out of your Poe Switches products. Our customer service staff is always available to answer any questions that you may have.
