100G Ethernet QSFP28 Optical Transceiver ZR4 LWDM4 80km SMF LC Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | Coloroptic |
| Certification: | CE, UL, FDA, RoHs, FC, TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 per month |
|
Detail Information |
|||
| Part Number: | QSFP28-100G-ZR4 | Vender Name: | OEM |
|---|---|---|---|
| Data Rate: | 100G | Modulation Format: | NRZ |
| Host Required: | FEC | DDM Support: | Yes |
| Wavelength(nm): | LWDM4 | Cable Type: | SMF |
| Distance: | 80km | Warranty: | 3 Years |
| Highlight: | Ethernet QSFP28 Optical Transceiver,LWDM4 QSFP28 Optical Transceiver,SMF 100G Optical Transceiver |
||
Product Description

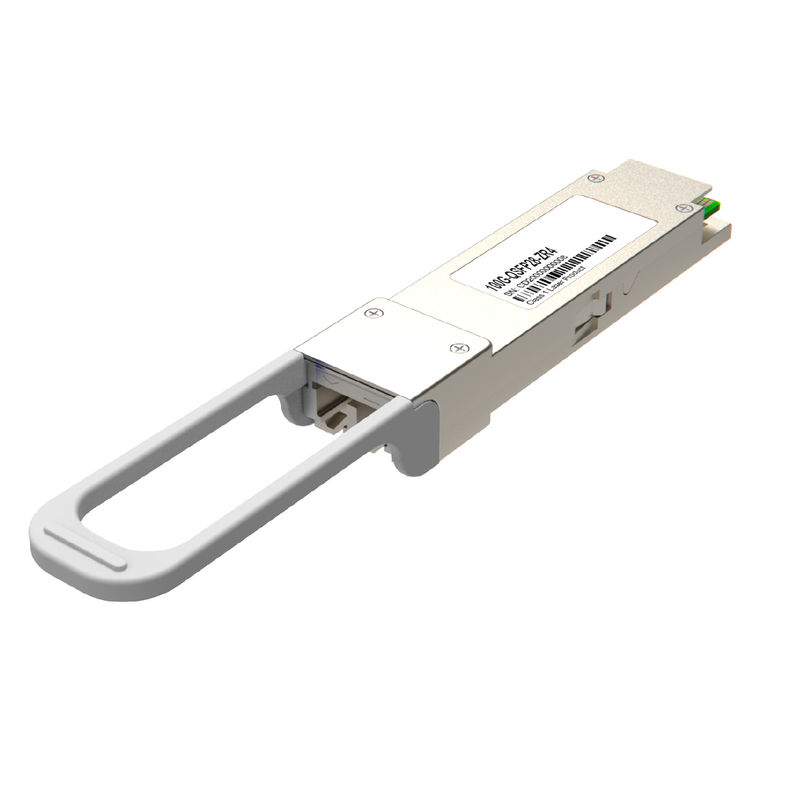

100G QSFP28 Transceivers ZR4 LWDM4 80km SMF LC connector for 100G Ethernet application
100G QSFP28 ZR4 LWDM4 80km Transceivers

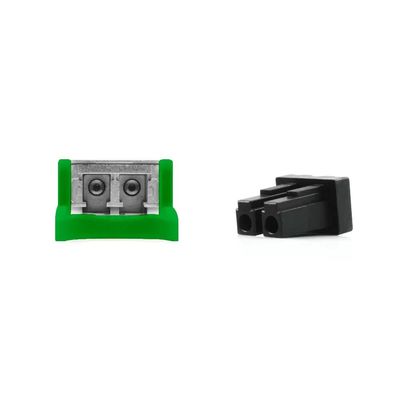

ColorOptics’ QSFP28 100G ZR4 is designed for 80km optical communication applications. This module contains 4- lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter_x001f_face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.
Product Details
| Part No. | QSP28-100-80 | Form Factor | QSFP28 |
| Data Rate | 100G/ps | Distance | 80km |
| Wavelength | LWDM4 | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Duplex LC | Voltage | 3.3V |
| Cable Type | SMF | DDM | Yes |
| Transmitter Type | LAN WDM EML | Receiver Type | PIN |
| TX Power | -1.0~+4.0dBm | Receiver Sensitivity | < -12.5dBm |
| Protocols | QSFP28 MSA | Warranty | 3 years |
Key Features
QSFP28 MSA compliant Hot pluggable 38 pin electrical interface 4 LAN-WDM lanes MUX/DEMUX design 4x25G electrical interface Maximum power consumption 6.5W LC duplex connector Supports 103.125Gb/s aggregate bit rate Up to 80km transmission on single mode fiber Operating case temperature: 0°C to 70°C Single 3.3V power supply RoHS 2.0 compliant
Application
100GBASE-ZR4 100G Ethernet Telecom networking
