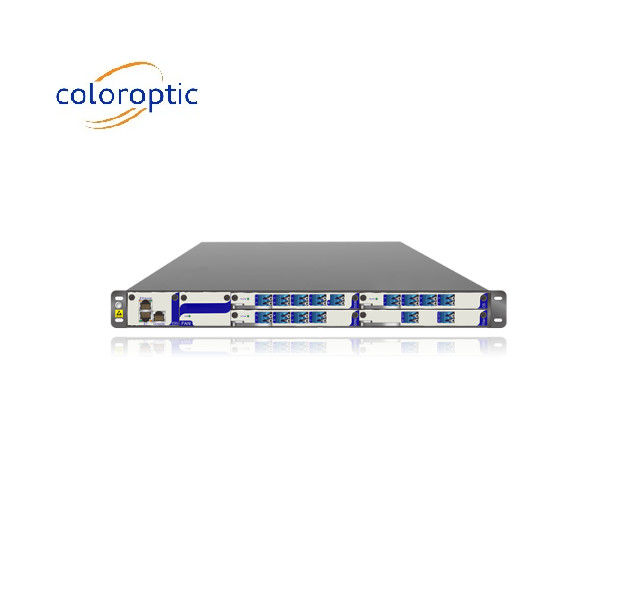

Core Network Wdm Optical Line Protection Switch Equipment For 10G Ethernet
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | CE |
| Model Number: | CO-T210 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | USD |
| Packaging Details: | Cartons |
| Delivery Time: | 10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000/month |
|
Detail Information |
|||
| Chassis: | 1RU | Network Protocols: | IEC/EN 60950-1, IEC/EN 60825 |
|---|---|---|---|
| Management: | CLI / SNMP / TNMS | Temperature Range: | -40°C To +70°C |
| Dimensions: | 482 X 350 X 44 Mm | Management Port: | RJ45 |
| Power: | AC/ DC | Application: | 10G Ethernet 40 ~ 120 Km Transmistion |
| Highlight: | Wdm Optical Line Protection Switch,Ethernet Optical Line Protection Switch |
||
Product Description
Core network T210 Series Wdm Optical Line equipment for 10G Ethernet 40 ~ 120 km transmistion
Product Description:
T210 series WDM optical line product are the industry's leading modular, highly integrated optical line transmission equipment. Its rich functional modules, flexible networking capabilities, and multi-line rate interfaces make it suitable for remote service transmission of large and small data centers, metro and wide-area carrier networks, and interconnection and backup between enterprise networks and computing centers. The product can be used to build up point-to-point wavelength-division transmission and relay networks, multi-span relay networks, and ring networks with east-west direction protection..
Features:
- 1RU in height, which support 4 service slots
- 220V AC and 48V DC power supply
- Various OEO sleds with multiple data rates and signal types
- C band line amplification for 48 channels with a variety of gain options and saturation power output
- Support bi-directional OSC
- Support fixed dispersion compensation board (40 ~ 300 KM) and tunable dispersion compensation
- Support optical line protection
- Support standalone mux/demux equipment and mux/demux cards with options of 4 channels
Technical Parameters:
|
TECHNICAL SPECIFICATIONS Physical Dimensions l T210 1U : 482 x 350 x 44 mm (W x D x H)
Service Cards l OEO sleds support 155M/622M/1G/2.5G/10G data rate l Various type of signals:STM-64, 10GE-LAN, 10GE-WAN, OTU2 / OTU2E / OTU1E l Optical amplifiers with 14, 18, 22, 25dB gain options and 20, 26dB saturation power output l Optical protection with swithing time < 10ms
Power Supply l AC power:90～264 V 50/60 Hz l DC power:-36～-72 V |
Applications:
|
TYPICAL APPLICATION: 10G DWDM
|
|
Management l RJ-45 network management interace l CLI / SNMP / TNMS Regulatory and Compliance l RoHS10/REACH/WEE l IEC/EN 60950-1, IEC/EN 60825 l EMI/EMC: EN55022/EN55024,IEC 61000-3/ IEC 61000-4 l Laser Safety: IEC 60852 Class1/2 Enviormental l Working Temperature:0℃～+50℃ / 32°F～122°F l Storage Temperature:-40℃～+70℃ / -40°F～158°F l Humidity:5%～90% |
Support and Services:
We also offer a selection of software and hardware updates, allowing you to keep your products up to date. Our software updates are available for free, and we provide timely hardware updates to ensure your product continues to perform at the highest level.
You can contact our technical support team at any time for assistance. We are committed to providing exceptional customer service and technical support to ensure your product is working properly and efficiently.
