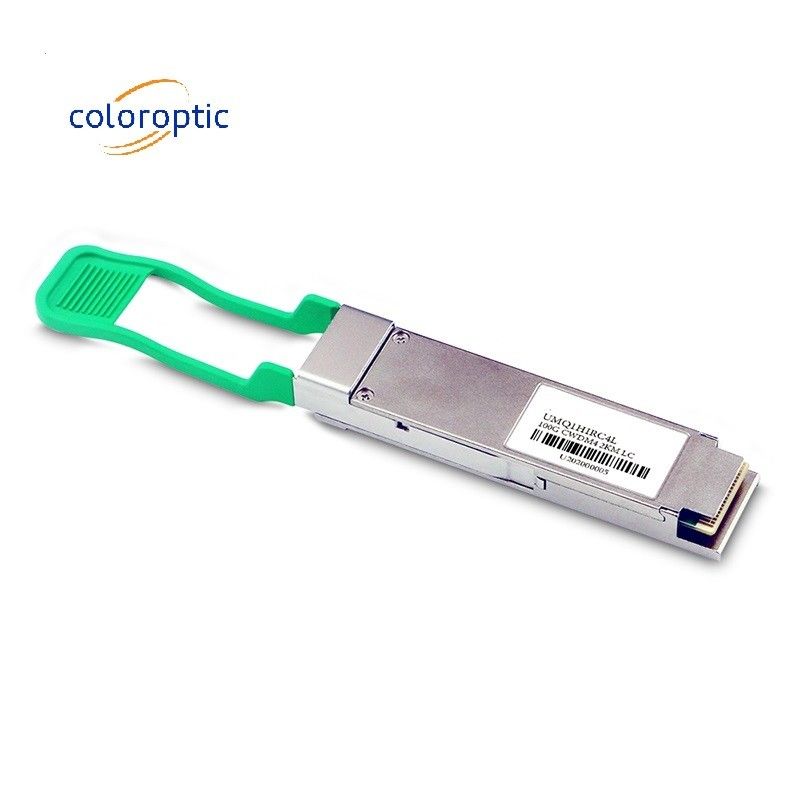

100Gb/s SFP Optical Module QSFP28 CWDM4 500m SMF Single Mode Fiber Transceiver
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-Q81HCWSC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 100G | Wavelength: | CWDM4 |
|---|---|---|---|
| Distance: | 2km | Connector: | LC |
| Form Factor: | QSFP28 | Temperature: | 0~70°C |
| DDM: | Yes | Protocals: | MSA |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Power Dissipation: | <3.5W | Application: | 100GBASE Ethernet Links |
| Highlight: | 100Gb/s SFP Optical Module,SFP Optical Module CWDM4,SMF Single Mode Fiber Transceiver |
||
Product Description
100Gb/s QSFP28 CWDM4 500m SMF LC Transceiver Module
This product is a transceiver module designed for 500m optical communication applications. The design is compliant to 100GBASE CWDM4 Open Compute Project (OCP) specification. The module converts 4 inputs channels (ch) of 25Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. Host FEC is required to support up to 500m fiber transmission. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference
Key Features
- QSFP28 MSA compliant
- 4 CWDM lanes MUX/DEMUX design
- Supports 103.1Gb/s aggregate bit rate
- Compliant to 100G CWDM4 OCP Specification
- Up to 500m transmission on single mode fiber (SMF) with FEC
- Operating case temperature: 15 to 60oC
- 4x25G electrical interface (OIF CEI-28G-VSR)
- Maximum power consumption 3.5W
- LC duplex connector
- RoHS compliant
Application
- 100G Data Center Interconnect
- 100G Ethernet
- Infiniband QDR and DDR interconnects
- Enterprise networking
Product Detail
It is uniquely serialized and data-traffic and application tested to ensure that they will integrate into your network seamlessly. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with OM3 | D | 0.002 | 2 | km | ||
| Power Consumption | 3.5 | W | ||||
| Center Wavelength | L0 | 1264.5 | 1271 | 1277.5 | nm | |
| L1 | 1284.5 | 1291 | 1297.5 | nm | ||
| L2 | 1304.5 | 1311 | 1317.5 | nm | ||
| L3 | 1324.5 | 1331 | 1337.5 | nm | ||
| Average Launch Power,each Lane | PAVG | -6.5 | 2.5 | dBm | ||
| OMA, each Lane | POMA | -4 | 2.5 | dBm | ||
| Average Receive Power,each Lane | -11.5 | 2.5 | dBm | |||
| Receive Power(OMA),each Lane | 2.5 | dBm | ||||
| Receiver Sensitivity(OMA) | SEN | -10 | dBm |
Outline Dimensions:
