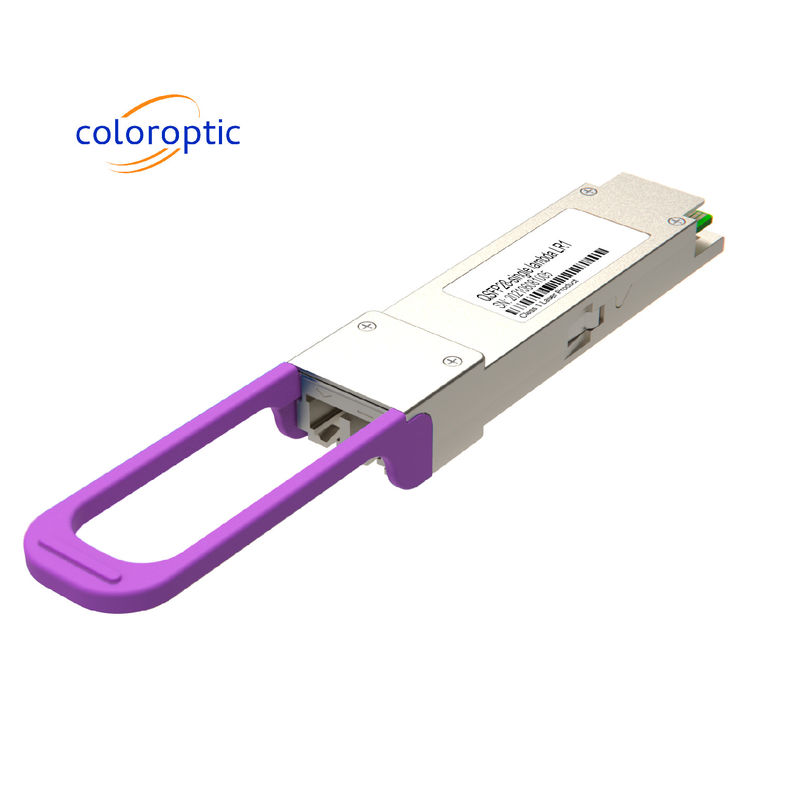

100G QSFP28 LR1 BIDI SFP Optical Module Transceiver 10KM SMF Single Fiber
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-Q81H13LB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 100G | Wavelength: | Single Lamda |
|---|---|---|---|
| Distance: | 10 Km | Connector: | Single Fiber LC |
| Form Factor: | QSFP28 | Temperature: | 0~70°C |
| DDM: | Yes | Protocals: | MSA |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Protocols:: | To IEEE 802.3ba 100GBASE-LR1 BIDI | Application: | 100GBASE-LR1 Ethernet Links |
| Highlight: | BIDI SFP Optical Module,Single Fiber SFP Optical Module,BIDI SFP Transceiver |
||
Product Description
100G QSFP28 LR1 BIDI Optical Transceiver 10KM SMF Single Fiber
100G QSFP28 BiDi LR1 single-fiber optical transceiver module is designed for 100G Ethernet links over 10km of single-mode fiber transmission. The module contains a single channel of optical signals operating at 100Gbps data rates. The module can convert four 25Gbps (NRZ) electrical signals to one 100Gbps (PAM4) optical signal or one 100Gbps (PAM4) optical signal to four 25Gbps (NRZ) electrical signals. The electrical interface of the module is compliant with OIF CEI-28G-VSR and QSFP28 MSA.
Key Features
- Supports 100GBASE-LR BIDI
- Lane signaling rate 106.25Gb/s with PAM4,111.8Gb/s compatible
- Up to 10km transmission on SMF
- EML Laser and PIN receiver
- 4x25.78Gb/s with NRZ electrical interface (CAUI-4)
- High speed I/O electrical interface
- I2C interface with integrated Digital Diagnostic monitoring
- QSFP28 MSA package with simplex LC connector
- Single +3.3V power supply
- Support HW TX_DIS and RX_LOS for telecom application
- Maximum power consumption 4 W
- Operating case temperature: 0 to +70 °C
- Compliant to 802.3cu, SFF-8636&SFF-8679 standard
- Complies with EU Directive 2015/863/EU
Application
Product Detail
Outline Dimensions:
Innovations
The manufacturing environment is strictly compliant with most advanced technological standards, ensuring our products a long term reliability.
Quality & Assurance
Our Cutting-Edge test equipment verifies that each of our products meets our high-quality standards
Customization
Thanks to the specialists of our Engineering Department, we have full control over both the hardware and the software of all our transceivers. Need your personal labelling? No problem, just ask and we provide!
Multi-Compatibility
ColorOptic offers a true cost-effective solution for all major platforms including the original vendor firmware.
Technical Support
Any issues with your equipment? We are already dispatching an engineer to your premises to fix it. We are 7x24 hours online supports.
| 3 years |
