SMF Optical Module Transceiver 10GBase-DWDM SFP+ C-Band 100GHz Duplex LC
Product Details:
| Place of Origin: | China |
| Brand Name: | ColorOptic |
| Certification: | ROHS, CE |
| Model Number: | CO-ST10DWZC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 pieces/month |
|
Detail Information |
|||
| Connector: | Dual LC | Operating Temperature: | 0℃ To 70℃ |
|---|---|---|---|
| Availability: | In Stock | Wavelength: | C Band |
| Interface Type: | DWDM | Transmission Distance: | 80Km |
| Weight:: | 0.10 LBS | Media Type: | Single-mode |
| Highlight: | SMF Optical Module Transceiver,Optical Module Transceiver Duplex LC |
||
Product Description

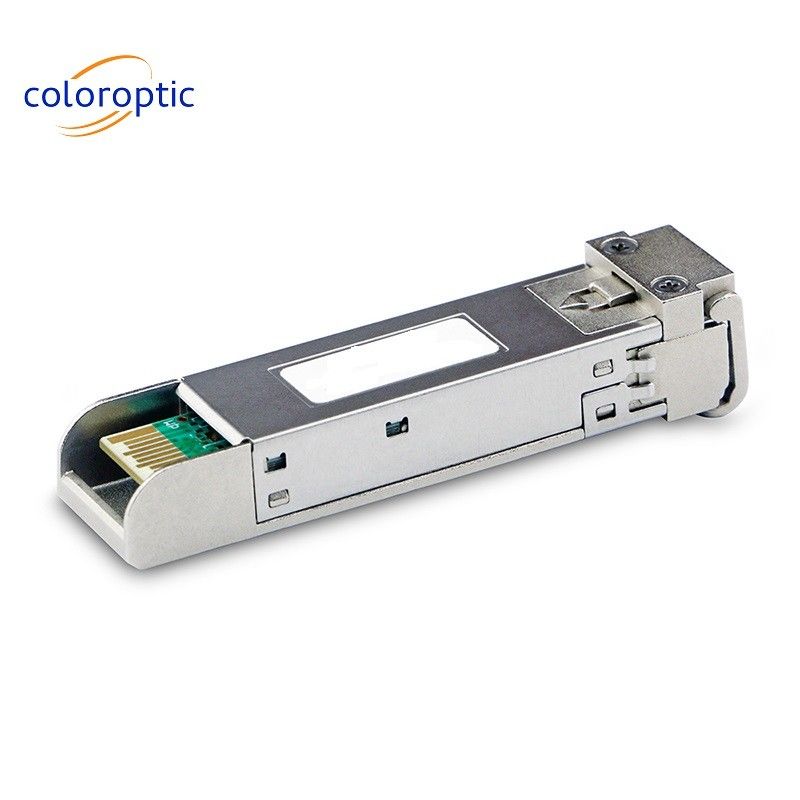

Cisco DWDM-SFP10G-xx.xx-80 Compatible 10GBase-DWDM SFP+ C-Band 80km Duplex LC SMF Optical Transceiver Module
Product Description:
The ColorOptic's SFP+ 10G-ZR-DWDM-80KM SFP+ transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 80km of G.652 single mode fiber. They are compliant with SFF-8431, SFF-8432 and 10GBASE ZR/ZW; support 4x, 8x and 10x Fibre Channel. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
The transceivers are RoHS compliant per Directive 2011/65/EU. The high performance cooled C band DWDM EML transmitter and high sensitivity APD receiver provide superior performance for Ethernet applications at up to 80km links.
Features:
- Up to 10Gb/s data links

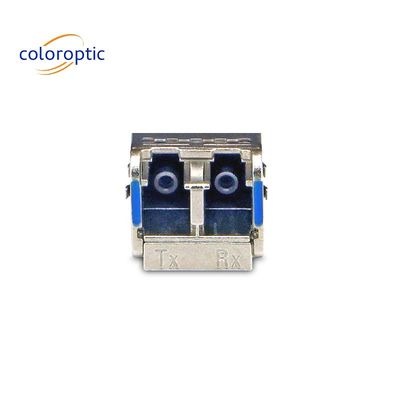

- Duplex LC connector
- Hot-pluggable SFP footprint
- 100GHz ITU Grid, C Band DWDM EML laser transmitter
- Compliant with SFF-8431 SFF-8432 and IEE802.3ae
- Single power supply 3.3V
- RoHS-6 compliant (lead-free)
- 80km link length
- Operating temperature range(Case Temperature):
C Grade 0◦C to 70◦C
I Grade −40◦C to 85◦C
Technical Parameters
| Form Factor: | SFP+ |
| TX Wavelength: | C-Band 100GHz |
| Reach: | 80Km |
| Cable Type | SMF |
| Rate Category: | 10GBase |
| Interface Type: | ZR |
| DDM: | Yes |
| Connector Type: | Dual LC |
| TX Power Min/Max | 0 to 5.0 dBm |
| RX Power Min/Max | -23.0~-5.0 dBm |
Applications:
- 10GBASE-ZR/ZW Ethernet
- 10G Fibre Channel
- SONET OC-192/SDH STM-64
- DWDM Networks
