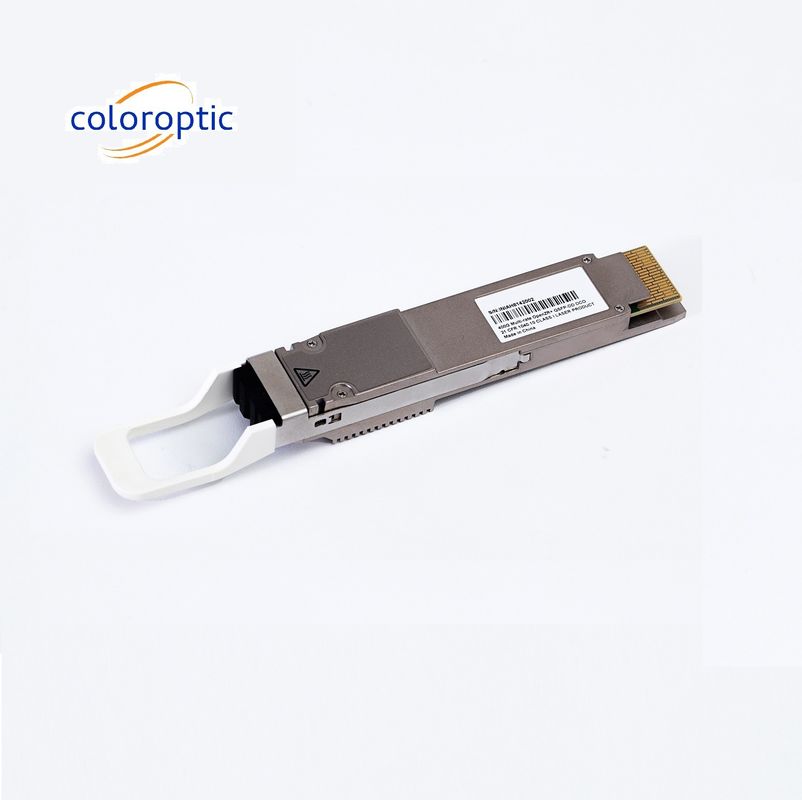

400G OpenZR+ QSFP-DD DCO Coherent Optical Module SCFEC & CMIS 5.0
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-QD4HCOZC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 400G | Wavelength: | Coherent |
|---|---|---|---|

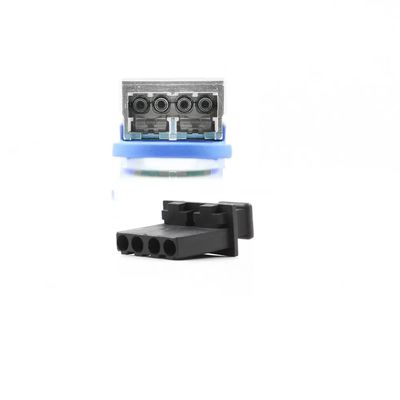

| Distance: | 480 Km | Connector: | Duplex CS |
| Form Factor: | QSFP-DD | Temperature: | 0~70°C |
| DDM: | Yes | Protocals: | MSA |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Protocols:: | CMIS5.0, OIF Coherent CMIS1.1, OpenZR+ | Modulation Format: | DP-16QAM CFEC |
| Highlight: | OpenZR+ Coherent Optical Module,400G Coherent Optical Module |
||
Product Description
400G OpenZR+ QSFP-DD DCO w/7nm Marvell DSP & Flex Grid, SCFEC & CMIS 5.0
This is 400G QSFP56-DD ZR+ transceiver module is capable of transmission distances up to 480km and compliant to the OIF 400G ZR standard,and compliant to the Open ZR+ standard,it using the Silicon Photonics (SiPho) based optical engine and the latest DSP generation that enables 400G coherent transmission. The QSFP-DD form factor and CMIS5.1 support makes them suitable for transmission applications using Ethernet switch equipment.
Key Features
Application
Product Details
| 400G QSFP-DD ZR DCO | |||||||
| Features: |
|
||||||
| 7nm Marvell DSP | |||||||
| C band:191.3 ~ 196.1THz, Flex Grid | |||||||
| Support Line side: | |||||||
|
DP-16QAM OFEC |
|||||||
| Support Flexible client-side: | |||||||
| 400GAUI-8/4*100GAUI-2 | |||||||
| Compliant to CMIS5.0 | Applications: | ||||||
| Compliant to OIF Coherent CMIS1.1 | •OTN | •DCI | |||||
| l Standard QSFP-DD type 2 form factor | •Metro | ||||||
| l 76pin QSFP-DD MSA connector | |||||||
| l 0~70℃ case temperature | |||||||
| l Hot Swappable | |||||||
| Main Parameters: | |||||||
| Parameter | Symbol | Min | Typical | Max | Units | Note | |
| Operating Case Temperature | TOP | 0 | 70 | degC | |||
| Operating Input Optical Power of Signal | Psig | -12 | 0 | dBm | |||
| Transmitter output power range | Pout | -10 | -6 | ||||
| Frequency Range | f | 191.3 | 196.1 | THz | |||
| Receiver Sensitivity | SEN | -20 | dBm | ||||
| OSNR sensitivity | OSNR | 24 | dB/0.1nm | ||||
| Power Consumption | 21 | W | |||||
