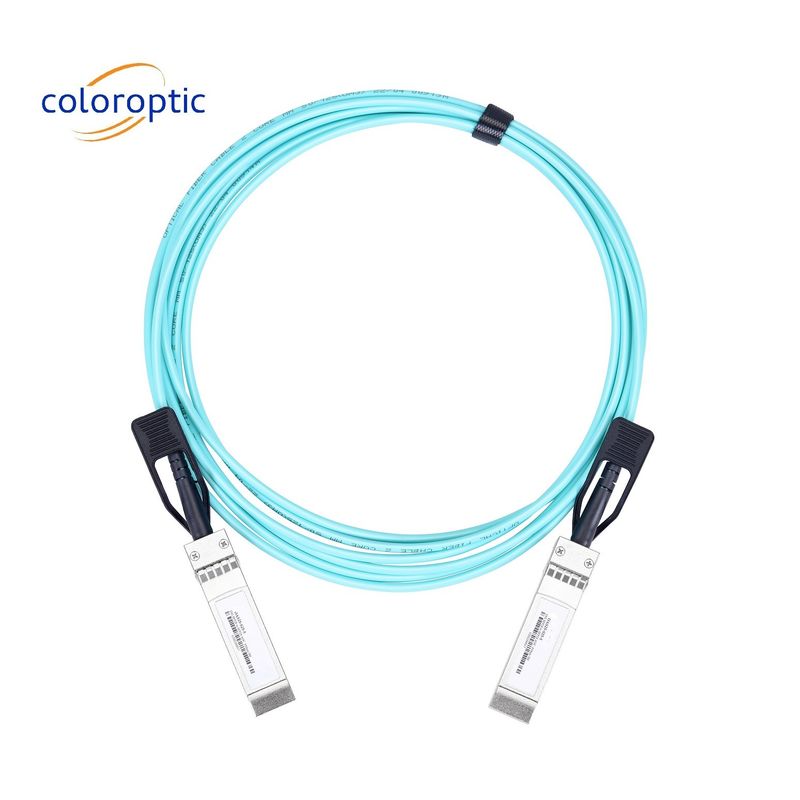

25G SFP28 To 25G SFP28+ AOC DAC Cable 3.3V For Infinibanda EDR Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | Coloroptic |
| Certification: | CE, UL, FDA, RoHs, FC, TUV |
| Model Number: | C-ACS25-S25-x |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 per month |
|
Detail Information |
|||
| Cable Type: | AOC | Data Rate: | 25G To 25G |
|---|---|---|---|
| Length: | 1~70m | Standard: | SFF-8431 SFF-8432 SFP+ MSA |
| Jacket: | PVC | Warrenty: | 3 Years |
| Highlight: | AOC DAC Cable 3.3V,EDR AOC DAC Cable |
||
Product Description
AOC Cable 25G SFP28 To 25G SFP28 +3.3V Power Supply Infiniband EDR Applications
General Description
The Color Optic C-ACS25-S25 is a single-Channel, Pluggable, Fiber-Optic SFP28 for 25 Gigabit Ethernet and Infiniband EDR Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 25.78125 Gbps up to 70m using OM3 fiber or 100m using OM4 fiber. This module is designed to operate over single mode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 20 contact edge type connector. The optical interface uses duplex LC receptacle. This module incorporates Color Optic proven circuit and technology to provide reliable long life, high performance, and consistent service..
Key Features
- Supports 25Gbps data rate
- 850nm VCSEL laser and PIN photo-detector
- Electrical interface compliant to SFF-8431
- 850nm VCSEL laser and PIN photo-detector
- Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
- Digital diagnostics functions are available via the I2C interface
- Operating case temperature
- Commercial: 0°C to +70 °C
- +3.3V single power supply
- Power consumption less than 1W
- RoHS compliant
Application
- 25GBASE-SR Ethernet
- 32G Fiber Channel
