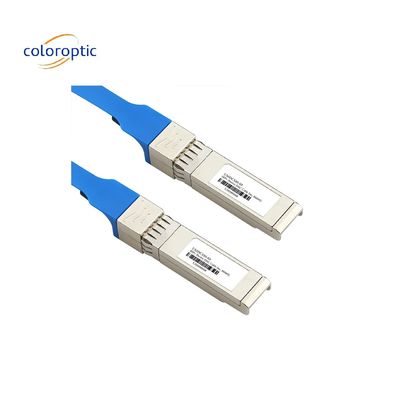

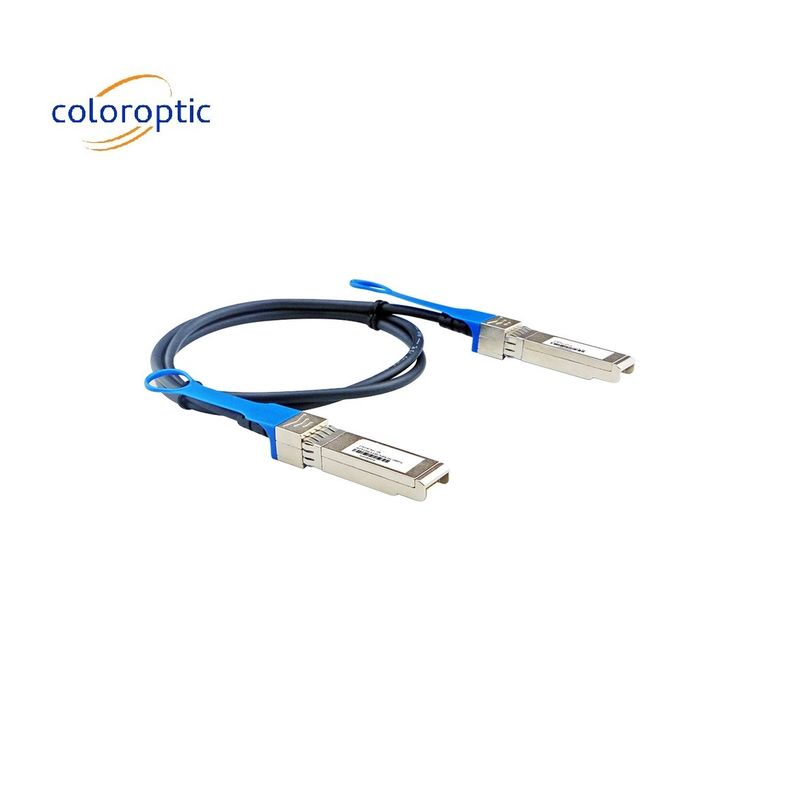

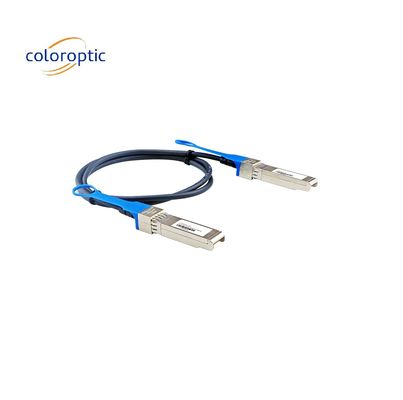

Active Optical Passive DAC Direct Attach Copper Cable SFP+ 10G To SFP+ 10G
Product Details:
| Place of Origin: | China |
| Brand Name: | Coloroptic |
| Certification: | CE, UL, FDA, RoHs, FC, TUV |
| Model Number: | C-DCS10T10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 10 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5000 per month |
|
Detail Information |
|||
| Cable Type: | Active Optical Cable | Data Rate: | 10G To 10G |
|---|---|---|---|
| Length: | 0.5~10m | AWG: | 24/30 |
| Jacket: | PVC | Warrenty: | 3 Years |
| Highlight: | Passive Direct Attach Copper Cable,Active Direct Attach Copper Cable,Optical Passive DAC Cable |
||
Product Description
DAC Direct Attach Copper Passive Cable SFP+ 10G To SFP+ 10G For 10G Fiber Channel Application
Color Optic’s 10G SFP+ passive cable uses shielded high-speed differential cables, compliant with 10 Gigabit Ethernet standards and SFP Multi-Source Agreement (MSA) standards, supports 10G trans- mission rates, and is backward compatible with 1G rates.SFP+ passive cable is the preferred solution for short-distance applications. It is widely used for data transmission between data centers and cab- inets or adjacent cabinets. Its biggest feature is low cost, ultra-low power consumption (less than 0.1 watt) and high reliability.
Product Details
| Parameter | Symbol | Min | Typ | Max | Unit | Remarks |
| Data Rate | DR | 10.3125 | Gb/s | 1 | ||
| Bit Error Rate | BER | 10−12 | ||||
| Operating Temperature | TC | 0 | 70 | ◦C | 2 | |
| Storage Temperature | TSTO | -40 | 85 | ◦C | 3 | |
| Input Voltage | VCC | 3.14 | 3.30 | 3.46 | V | 4 |
Key Features
-
Up to 10 Gb/s bi-directional data links
- Compliant with 10GFC
- Compliant with SFF-8431
- AC coupled inputs and outputs
- 100 Ohm differential impedance
- Enhanced EMI design
- Single power supply 3.3V
- RoHS Compliant
- Operating temperature range: 0◦C to 70◦C
Applications
- 10G Ethernet
- 10G Fiber Channel
- Serial Data Transmission
