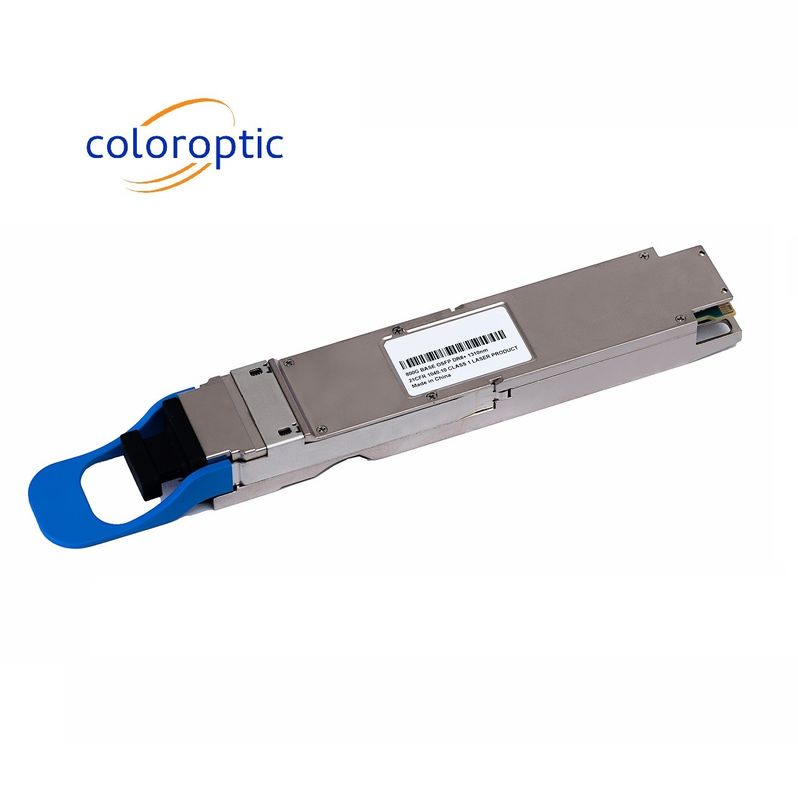

2.5W OSFP Module 800G DR 1310nm 500M With MPO-16 Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | ColorOptic |
| Certification: | ROHS, CE |
| Model Number: | CO-OS8H13D8C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 8 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Power Consumption: | 2.5W | Reach Distance: | 500m |
|---|---|---|---|
| Relative Humidity: | 5% To 95% | Storage Temperature: | -40℃ To 85℃ |
| Wavelength: | 1310nm | Data Rate: | 800Gbps |
| Connector: | MPO-12/16 | Application: | Data Center Interconnect |
| Highlight: | OSFP Module 1310nm,500M OSFP Module,2.5W OSFP 800G |
||
Product Description
OSFP Module 800G (8*100G) DR 1310nm 500M With MPO-16 Connector Compliant To OSFP MSAs
Product Description:
The OSFP Module 800G (8*100G) DR is a high-performance networking module designed for data centers and telecommunications networks. With its impressive capacity of 800G, it offers enhanced data transmission capabilities for demanding applications.
Featuring eight individual channels, each capable of transmitting data at a rate of 100G, this module provides efficient and reliable connectivity for large-scale data transfers. The DR (Double Re-Use) designation indicates that the module can be reused multiple times, making it a cost-effective solution for network expansion and scalability.
The OSFP Module 800G (8*100G) DR is built with advanced technology to ensure low latency, high bandwidth, and optimal performance. It is compatible with industry-standard networking equipment and can seamlessly integrate into existing network infrastructure.
Features:
- Product Name: OSFP Module
- Compatibility: IEEE802.3ae
- Connector: MPO-16
- Relative Humidity: 5% To 95%
- Reach distance: 500m
- Data Rate: 800Gbps
- CMIS: Compliant with the CMIS interface standard
Technical Parameters:
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with SMF | D | 2 | km | |||
| Power Consumption | 16 | W | ||||
| Center Wavelength | λC | 1304.5 | 1310 | 1317.5 | nm | |
| Average Launch Power, each Lane -> OMA | PAVG | -0.2 | 4.2 | dBm | ||
| Average Receive Power, each Lane -> OMA overload | 4.2 | dBm | ||||
| Receiver Sensitivity (OMAouter), each Lane | SEN |
