12 Cores MPO Fiber Patch Cable For Data Center Cabling Interconnection
Product Details:
| Place of Origin: | China |
| Brand Name: | Coloroptic |
| Certification: | CE, UL, FDA, RoHs, FC, TUV |
|
Detail Information |
|||
| Connctor: | MPO | Fiber Cores: | 12 |
|---|---|---|---|
| Jecket: | LSZH PVC | Length: | 10m |
| Warrenty: | 1 Year | Color: | Yellow |
| Highlight: | 12 Cores MPO Fiber Patch Cable,Data Center MPO Fiber Patch Cable |
||
Product Description
12 Cores MPO Patchcord Fiber Cable For Data Center Cabling Interconnection
MPO pre terminated cable is conducive to the rapid deployment of data center and fiber infrastructure environment. Across the M-DA, H-DA and E-DA inter module box or fan out cable connection, its efficient plug and play architecture greatly reduces the initial installation and maintenance costs.
We hearing pre terminated cable with cable and MPO components of high quality, low insertion loss, high return loss can fully meet the requirements of high-speed network demanding.
Features:
1, High Performance m IL & RL
2, 4, 8, 12 and 24 fiber connector terminations and assemblies
3, Deslgned for tow loss and standard loss SM and MM applications
4, Economical solution for mass-termmation of fiber
5, Suitable for MPO/MTP application
6, Ruggedized round cable, oval cable and bare ribbon options available
7, color coded housings available to differentiate fiber type, polish type and/or connector grade
Applications:
1, Optical switching interframe connect ons
2, High fiber density card edge access
3, Array trunk cables
4, Datacenter cabling
Associated Standards:
1, Meets IEC Standard 61754-7 & JIS C5982
2, Structured cabling per TIA-568-C
3, Parallel Optics
4, Optical Internetworking Forum (OIF) Compliant
5, Infiniband Compliant
6, Infiniband
7, 10G Fiber Channel Compliant
8, 40G and tOOG IEEE 802. 3
9, QSFP

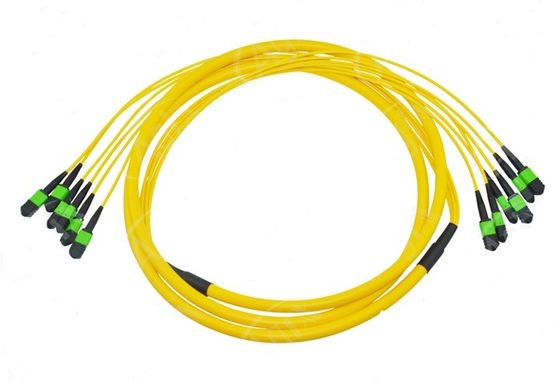

Mpo Harness & Fanout cable Assemblies
Coloroptic's MpO Fan-out Cable Assemblies are designed for high density applications with require high performance and speedy
without onsite termination.
Technical index:
| Fiber type | single mode | multimode | |
| insertion loss | typical(dB) | 0.35 | 0.35 |
| Maximum(dB) | 0.75 | 0.60 | |
| Return loss (dB) | ≥60(APC) | ≥20(PC) | |
| ≥50(PC) | |||
| Male / female | Male head: needle mother: no needle | ||
| Durability (dB) | ≤0.2 200Secondary docking | ||
| working temperature (℃) | －40 ～+85 | ||
| Test wavelength (nm) | 1310 | 850 | |
| Fibers | 12 | 24 | 48 | 72 | 96 | 144 |
| Branch length(cm) | 30~150 | |||||
| Maximum mounting tension(N) | 500 | 500 | 700 | 700 | 700 | 700 |
| Minimum bending radius (static)mm | 10Optical fiber diameter | |||||
| Minimum bending radius (dynamic)mm | 20Optical fiber diameter | |||||
| working temperature(℃): | -20℃～+60℃ | |||||
