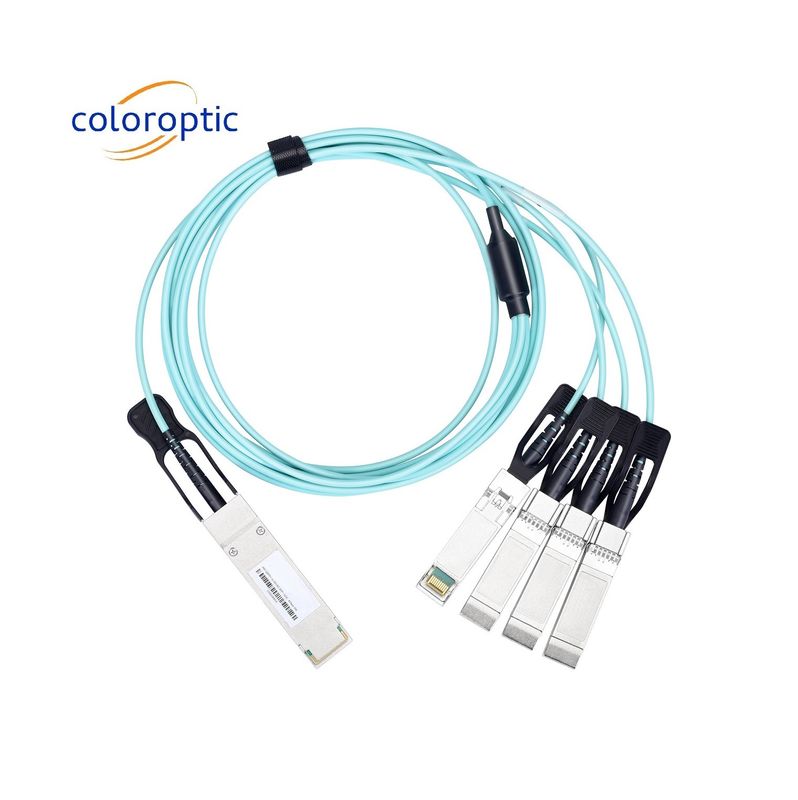

Active AOC DAC Cable 40G QSFP+ To 4 SFP+ 10G Optical Breakout Cable 24AWG
Product Details:
| Place of Origin: | China |
| Brand Name: | Coloroptic |
| Certification: | CE, UL, FDA, RoHs, FC, TUV |
| Model Number: | C-ACQ40-4S10-x |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 per month |
|
Detail Information |
|||
| Cable Type: | AOC | Data Rate: | 40G To 4*10G |
|---|---|---|---|
| Length: | 1~50m | AWG: | 24AWG |
| Jacket: | PVC | Warrenty: | 3 Years |
| Highlight: | Active AOC DAC Cable,Optical AOC DAC Cable,AOC Optical Breakout Cable |
||
Product Description
AOC active Cable 40G QSFP+ to 4 SFP+ 10G beak out Low Power Consumption Infiniband QDR/DDR/SDR
General Description
The Color Optic CO-ACQ40-4S10-x is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Cable (AOC) to 4× SFP+ Active Optical Cable break-out solution. This Breakout cable is intended for 40G to 4×10G applications.
This AOC is a high performance cable for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 4 x 10G QDR applications and are backwards compatible to the 4 × 5G IB DDR and 4 × 2.5G IB single IB SDR applications.
This product is leveraged from Color Optic QSFP+ to QSFP+ Active Optical Cable product and SFP+ Active Optical Cable product. Where applicable, consult these respective datasheets.
This AOC incorporates Color Optic's proven integrated circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
Key Features
QSFP+ AOC end:
- Compliant to the 40GBASE-SR4 and XLPPI Specification per IEEE 802.3ba-2010 and supporting 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
- Compliant to the industry standard SFF-8436 QSFP+ Specification
- Power Level 1: Max Power < 1.5 W
- Operate at 10.3125 Gbps per channel with 64b/66b encoded data for 40GbE application and at 10 Gbps with 8b/10b compatible encoded data for 40G-IB-QDR application
Each 4×SFP+ end:
- Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module.
- Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor “IPF”
- Maximum power dissipation 0.35W per end
Active Optical Cable Assembly:
- Proven High Reliability 850 nm technology: VCSEL transmitter and PIN receiver
- Commercial operating case temperature range: -5ºC to 70ºC
- RoHS-6 Compliant
- Hot pluggable for ease of servicing and installation
- Two Wire Serial interface
- Utilizes optical fiber for high density and thin, lightweight cable management64b/66b encoded data for 40GbE application and at 10
Application
- 40GbE and 10GbE break-out applications for Datacom switch and router connections
- 40G to 4×10G density applications for Datacom and Proprietary protocol applications
- Datacenter
Product Details
| Absolute Maximum Ratings | ||||
| Parameter | Symbol | Min | Max | Unit |
| Storage Ambient Temperature | TSTG | -40 | 85 | ℃ |
| Operating Case Temperature | Tc | -5 | 70 | ℃ |
| Operating Humidity | HO | 5 | 85 | % |
| Power Supply Voltage | Vcc | -0.3 | +3.6 | V |
| Input Voltage | Vin | -0.3 | Vcc+0.3 | V |
| Recommended Operating Conditions | |||||
| Parameter | Symbol | Min | Typical | Max | Unit |
| Power Supply Voltage | Vcc | 3.135 | 3.3 | 3.465 | V |
| Data Rate,each Lane | 10.3125 | 11.3 | Gbps | ||
| Data Speed Tolerance | ∆DR | -100 | +100 | ppm | |
| Link Distance with OM3 fiber | D | 0 | 100 | m | |
| Control Input Voltage High | 2 | VCC+0.3 | V | ||
| Control Input Voltage Low | -0.3 | 0.8 | V | ||
| I2C Serial Interface frequency | fs | 400k | Hz | ||
| Power Supply Noise | 50 | mVpp | |||
| Receiver Differential Data Output Load | 100 | mVpp | |||
