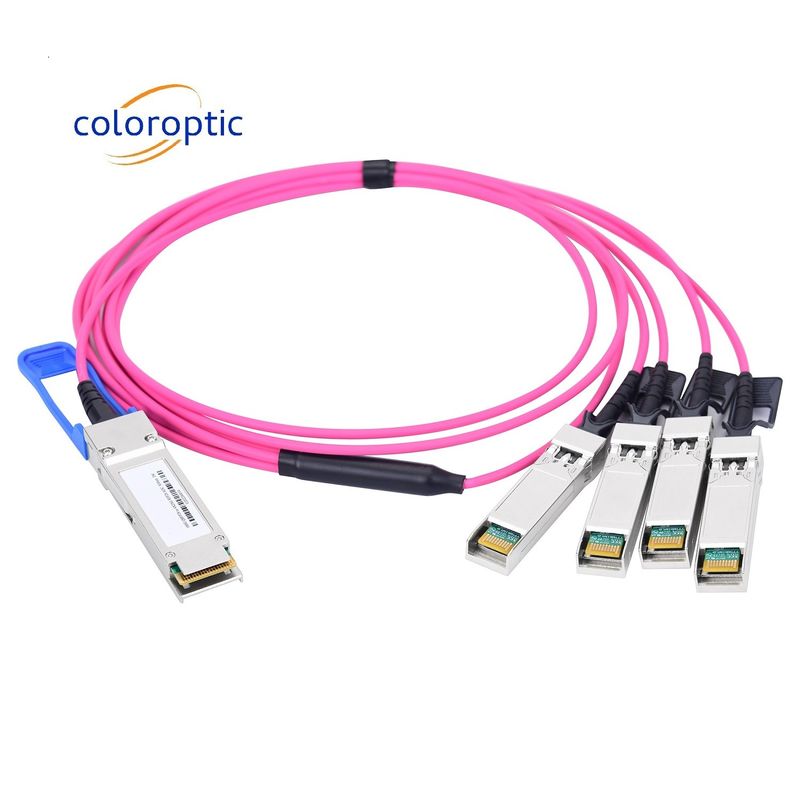

Breakout AOC Active Optical Cable 100G QSFP28 To 4 SFP28 25G Low Power Consumption
Product Details:
| Place of Origin: | China |
| Brand Name: | Coloroptic |
| Certification: | CE, UL, FDA, RoHs, FC, TUV |
| Model Number: | C-ACQ100-4S25-x |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 per month |
|
Detail Information |
|||
| Cable Type: | AOC | Data Rate: | 100G To 4*25G |
|---|---|---|---|
| Length: | 1~50m | AWG: | 24AWG |
| Jacket: | PVC | Warrenty: | 3 Years |
| Highlight: | Breakout Active Optical Cable,AOC Active Optical Cable |
||
Product Description
AOC active Cable 100G QSFP28 to 4 SFP28 25G beak out Low Power Consumption Infiniband application
General Description
The Color Optic CO-ACQ100-4S25-x is QSFP28 4-channel active optical cables (AOC) for 100G Ethernet (100GbE) applications. This full-duplex optical assembly offers 4 independent transmit and receive channels, each capable of up to 25Gbps for an aggregate bandwidth of 100Gbps. The 100G QSFP28 AOC cables can be used as a direct replacement for traditional QSFP28 DAC (direct attach copper cables) and QSFP28 transceivers of short reach while providing lighter weight, improved signal integrity, lower cost, and performance value. The optical end is never exposed to a data center environment and therefore does not require cleaning or special handling. They are designed expressed for high speed, high density and low power consumption for today’s data center networking applications.
Key Features
- Hot-pluggable QSFP28 form factor
- 4 high-speed full duplex channels
- Supports 103.1Gb/s aggregate bit rate
- 4x25Gbps 850nm VCSEL laser
- QSFP28 MSA compliant
- Operating environment temperature -5 ~ 70℃
- Low power dissipation:<3.5W per cable end(<2.5W with CDRs off)
- Available in lengths of 1 to 100 meters
- RoHS-6 compliant
Application
- 1000GbE and 25GbE break-out applications for Datacom switch and router connections
- 100G to 4×25G density applications for Datacom and Proprietary protocol applications
- 100 Gigabit Ethernet links
- Infiniband interconnect
- Data center cabling infrastructure
- High density connections between networking equipment
Product Details
| Recommended Operating Conditions | |||||
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Case Temperature | Tc | 0 | +70 | °C | |
| Supply Voltage | Vcc | 3.14 | 3.3 | 3.46 | V |
| Supply Current | Icc | 300 | mA | ||
| Bit Rate | BR | 25.78 | Each channel | ||
| Electrical Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Transmitter Characteristics | ||||||
| Signaling rate, each lane | DRpl | 25.78125 | Gb/s | 1 | ||
| Center Wavelengthe | λ | 840 | 850 | 860 | nm | |
| RMS Spectral Width | 0.6 | nm | ||||
| Average launch power, each lane | Pavg | -8.4 | 2.4 | dBm | ||
|
Optical modulation amplitude, each lane (OMA) |
OMA | -6.4 | 3 | dBm | ||
| Extinction ratio | ER | 2 | dB | |||
|
Average Launch Power of OFF Transmitter, per Lane |
RIN | -30 | dBm | |||
| Encircled Flux | FLX |
>86% at 19 um <30% at 4.5 um |
dBm | |||
| Optical return loss tolerance | 12 | dB | ||||
|
Transmitter eye mask {X1, X2, X3, Y1, Y2, Y3} |
{0.3,0.38,0.45,0.35,0.41,0.5} | 2 | ||||
| Receiver Characteristics | ||||||
| Receive Rate for Each Lane | DRpl | 25.78125 | Gb/s | 3 | ||
| Four Lane Wavelength Range | λ | 840 | 850 | 860 | nm | |
| Overload Input Optical Power | Pmax | 3.4 | dBm | |||
|
Average Receive Power for Each Lane |
Pin | -10.3 | 2.4 | dBm | 4 | |
| Receiver Sensitivity(OMA)per lane | Psens | -5.2 | dB | |||
| Recevier Reflectance | Rfl | -12 | dB | |||
|
Receiver Eye MaskDefinition {X1, X2, X3, Y1, Y2,Y3} |
{0.28,0.5,0.5,0.33,0.33,0.4} | 5 | ||||
| Los De-Assert | Pd | -13 | dBm | |||
| Los Assert | Pa | -30 | dBm | |||
| Loss Hysteresis | Pd-Pa | 0.5 | dBm | |||
