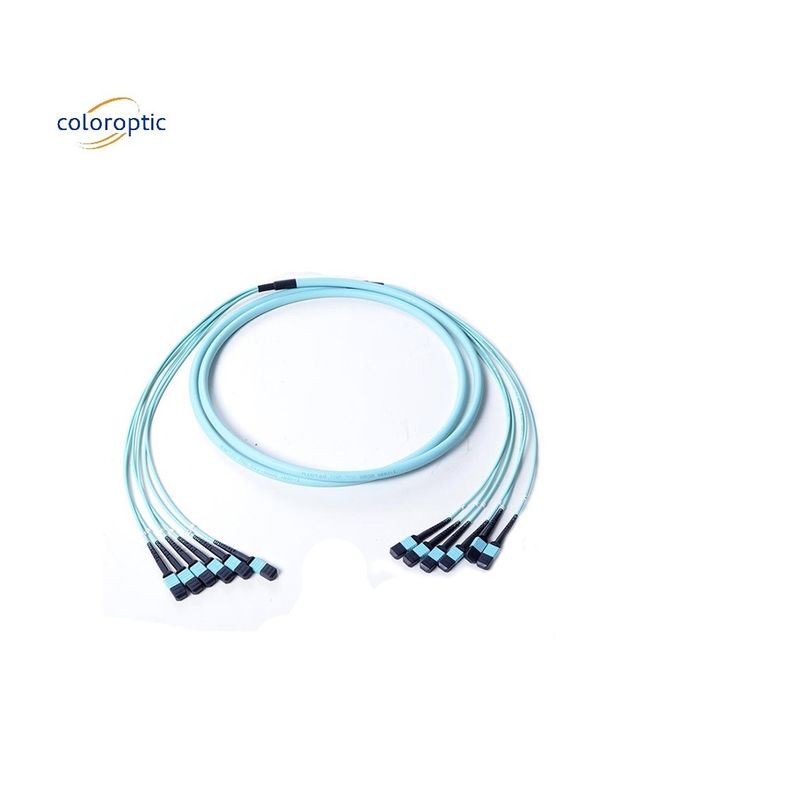

Aqua Color MPO Patch Cord 1m Cable Length Fiber Mode Great Offer
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Model Number: | CO-1X1CP |
|
Detail Information |
|||
| Core Count: | 12 | Color: | Aqua |
|---|---|---|---|
| Cable Type: | Patch Cord | Cable Length: | 1m |
| Connector Polishing: | PC | Operating Temperature: | -20℃~70℃ |
| Storage Temperature: | -40℃~85℃ | Fiber Grade: | G652D |
| Highlight: | Aqua Color MPO Patch Cord,MPO Patch Cord 1m |
||
Product Description
OM3 Insertion Loss≤0.2dB with MPO and Fiber Mode Great Offer
Product Description:
MPO Patch Cord is a high performance patch cord that is used for data center and telecom applications. It is designed for maximum durability and reliability, with a fiber grade of G652D and fiber mode of OM3. Its insertion loss is less than 0.2dB, and its polarity is A-B, making it an ideal choice for high speed networks. The patch cord is designed for long-term use, with a durability of 1000 times. It is the perfect choice for any data center or telecom application that requires reliable and high performance patch cord.
Features:
- Product Name: MPO Patch Cord
- Fiber Mode: OM3
- Durability: ≥1000 Times
- Connector Type: MPO
- Fiber Count: 12
- Polarity: Standard
- Jacket Material: PVC
Technical Parameters:
| Parameter | Value |
|---|---|
| Multi-fiber Push On | - |
| Fiber Count | 12 |
| Cable Type | Patch Cord |
| Insertion Loss | ≤0.2dB |
| Color | Aqua |
| Connector Type | MPO |
| Fiber Grade | G652D |
| Fiber Mode | OM3 |
| Return Loss | ≥20dB |
| Durability | ≥1000 Times |
| Connector Polishing | PC |
Applications:
The Color Optic CO-1X1CP Multi-fiber Push On (MPO) Patch Cord is the ideal choice for the most demanding data center applications. This patch cord is made from the highest quality components and offers reliable performance at operating temperatures from -20℃ to 70℃. It is designed with a robust PVC/LSZH jacket material for maximum durability and is capable of withstanding more than 1000 insertion/removal cycles. Furthermore, the CO-1X1CP provides superior optical performance with a precision PC connector polishing. This makes it the perfect solution for high density and high speed data center networks.
Customization:
Customized MPO Patch Cord by Color Optic with Model Number CO-1X1CP from China. Features include PC connector polishing, 12 core count, PVC jacket material, cable length, ≥1000 times durability, ≥20dB return loss and Insertion Loss.
Packing and Shipping:
The MPO Patch Cord is packaged and shipped in a secure cardboard box, with the following features:
- It is designed to protect the product from external forces by providing cushion and shielding.
- It is made of recyclable materials, and is easy to store and transport.
- It is labelled with the appropriate shipping information.
