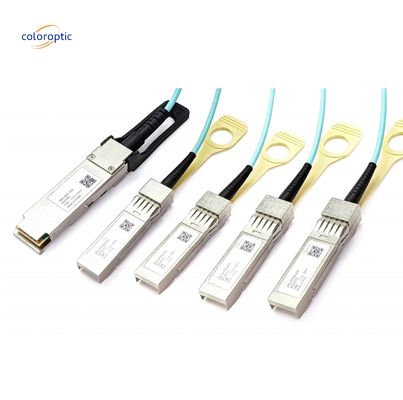

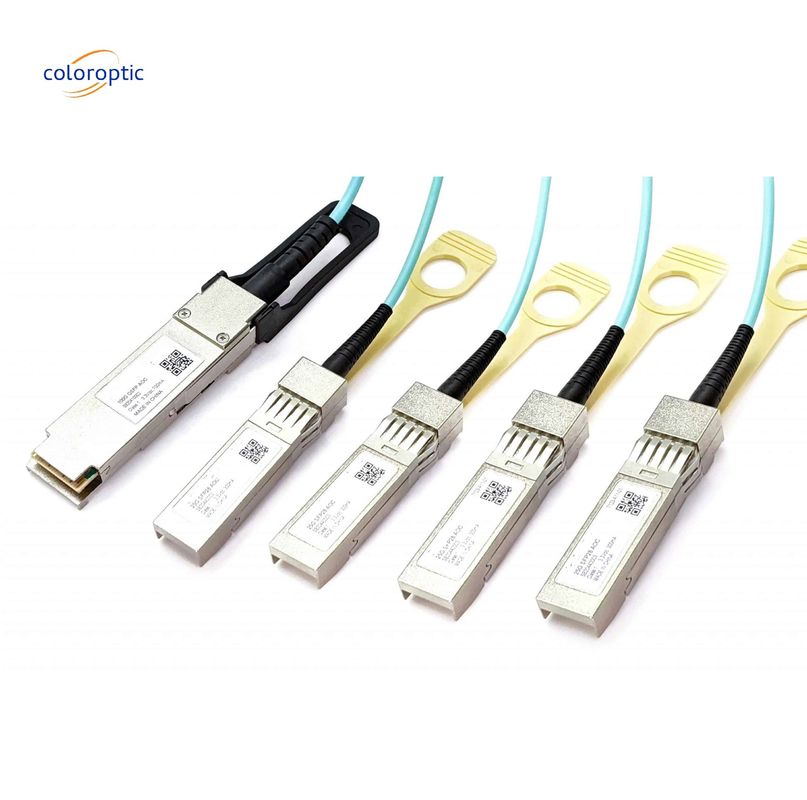

InfiniBand And Ethernet Active Optical Cable 100G QSFP28 Breakout To 4xSFP28 AOC
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | CE |
| Model Number: | CO-1HOT425O |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | USD |
| Packaging Details: | carton |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Pieces per week |
|
Detail Information |
|||
| Cable Jacket: | TPE | Transfer Speed: | QSFP28 To Four SFP28 AOC |
|---|---|---|---|
| Compatibility: | IEEE Compliant | Connector Plating: | Nickel Plated |
| Cable Weight: | 44g | Product Name: | AOC Cable |
| Material: | LSZH | Cable Diameter: | 4.8mm |
| Highlight: | QSFP28 to 4xSFP28 Active Optical Cable,100G QSFP28 Active Optical Cable,QSFP28 to 4xSFP28 AOC Cable |
||
Product Description
The 100G to 4x25G fanout active optical cable (AOC) is for short-range data communication and interconnect applications. The AOC has one QSFP28 end connected to four SFP28 ends. Each channel operates up to 25Gb/s, and up to 100m using OM3 fiber.
Features
- QSFP28 to four SFP28 AOC assembly
- Each QSFP28 lane connected to a separate SFP28 device
- Each bi-directional lane supports 25.78125Gb/s and is IEEE compliant
- Enabled by 850nm VCSEL
- Operating case temperature 0°C – 70°C
- Hot pluggable
- Low power consumption
- Transmission distance up to 100m with OM3 MM fiber
- Laser eye safety Class 1
Technical Parameters:
- Data Rate: 100G and 25G
- Supply voltage: 3.3V
- Power consumption: QSFP28=1.8W, SFP28=0.6W
- Temp: 0°C – 70°C
- Reach: 100m with OM3 fiber
Applications:
- 25Gb Ethernet agregation
- Server to switch connectivity
- Datacenter interconnects
