Polarity
| Type A | Made to order. Chat to us below. |
| Type B | Made to order. Chat to us below. |
 |

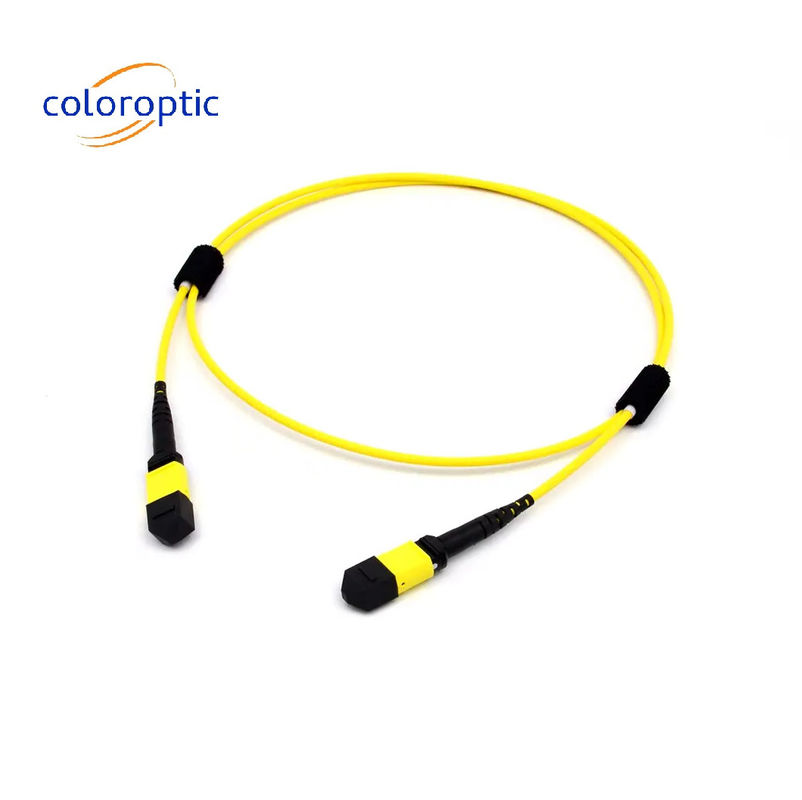

Multi Mode fiber MTP MPO 16 FIBRE OM5 (50/125) PATCH CABLE for SR8 400G QSFP-DD and OSFP 400G SR8 PAM4
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE, FCC |
| Model Number: | CO805-EFEF-16CCA-PC-001-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50000 pieces/month |
|
Detail Information |
|||
| Jacket Material: | PVC | Connector Type: | MPO |
|---|---|---|---|
| Insertion Loss: | ≤0.2dB | Cable Type: | Patch Cord |
| Connector Polishing: | PC | Operating Temperature: | -20℃~70℃ |
| MTP Genders: | Female To Female | Core Count: | 16 |
Product Description
Product Description:

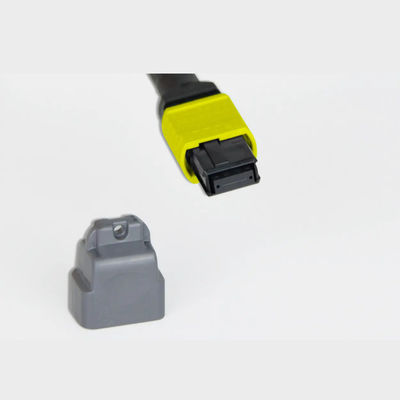

MTP (MPO) Patch Cables for 400G SR8
Complete Connect’s CO800 Series MTP® (MPO) contains a full range or patch cords, breakouts, conversion cables and trunks for SR8 connectivity over multimode or PSM8 over singlemode fibre.
QSFP+ and QSFP-DD direct connect
MTP® (MPO) 16 fibre patch cables are mainly used to directly connect between QSFP+ (or QSFP-DD) transceivers or to connect these transceivers to MTP® (MPO) trunks. Polarity B MTP® (MPO) patch cables and with female connectors will enable a direct connection for SR4 transmission between two QSFP+ (QSFP-DD) type transceivers.
Patch to MTP® (MPO) trunk cables
We also stock MTP® (MPO) patch cables that can connect to MTP® (MPO) trunks/backbones. These will typically also be polarity B but will have different gender connectors (male to female).
The polarity and gender of your patch cords will depend on your network layout and type of MTP® (MPO) adaptor used.
.
Features:
| Glass Core | Corning® Clearcurve® OM5 |
| Standards | IEC 60793-2-10 Type A1.a3 ITU G651.1 |
| OMB @ 850 nm | 3500 MHz⋅km to IEC 60793-1-41 |
| OMB @ 1300 nm | 500 MHz⋅km to IEC 60793-1-41 |
| Att. @ 850 nm | ≤ 2.3 dB/km |
| Att. @ 1300 nm | ≤ 0.6 dB/km |
| EMB | 4700 MHz⋅km to IEC 60793-1-49 |
Technical Parameters:
| Product Series | CO800 SR8 |
| Polarity | Type B – 400G direct connect |
| Cable | 16 fibre micro core cable for internal use |
| Cable Diameter | 3 mm |
| Glass Cores | Corning Clearcurve® OM5 |
| MTP (MPO) End 1 | MTP ELITE® 16 fibre APC with offset key |
| MTP (MPO) End 2 | MTP ELITE® 16 fibre APC with offset key |
| Insertion Loss | < 0.12 dB mean; < 0.25 @ <97% |
| Return Loss | ≥ 25 dB |
| Product Warranty | 30 years |
Applications:
- 400G SR8 (QSFP-DD)
- 800G SR4 (QSFP112)
- 800G DR4, FR4 (OSFP )
Note: These transceivers all require a type B cable with female MTP® (MPO) connector
Customization:
MTP® (MPO) Connectors
| Gender | Male or female |
| Housing Colour | Red. Blue. Violet. Green |
| Push Pull Tabs | One end or both ends |
Cable
| Cable Diameter | 4.5 mm dual sheath |
| Sheath Colour | Red. Blue. Green |
| Labels | Bespoke wrap around or tags |
Support and Services:
The MPO Patch Cord is designed to deliver high-density and high-speed data transmission for a variety of applications, including data centers, high-performance computing networks, and enterprise environments. Our product is thoroughly tested to ensure it meets industry standards for performance and reliability.
Technical support for the MPO Patch Cord includes troubleshooting assistance, guidance on best practices for installation and maintenance, and help with compatibility and interoperability issues. Our knowledgeable support team is well-versed in the technical aspects of MPO technology and can provide detailed advice on how to optimize your network's performance using our patch cords.
Services for the MPO Patch Cord include a comprehensive warranty, which covers any defects in materials or workmanship. Should you encounter any issues with your product, we are committed to providing a prompt resolution. Additionally, we offer optional services such as on-site support and customized product training to ensure you get the most out of your purchase.
Our commitment to customer satisfaction means that we are constantly improving our products and support offerings. We welcome feedback and inquiries from our customers, as it helps us to serve you better. Rest assured that our team is here to provide you with the quality support and service you need to maintain a robust and efficient network.
