| Bit Error Rate | 5 X 10-5 |
| Differential Impedance | 100 Ohm |
| Storage Temperature | – 40 to + 85 ° C |
| Input Voltage | Min 3.15 V to max 3.46 V. Typ 3.3 V |
 |

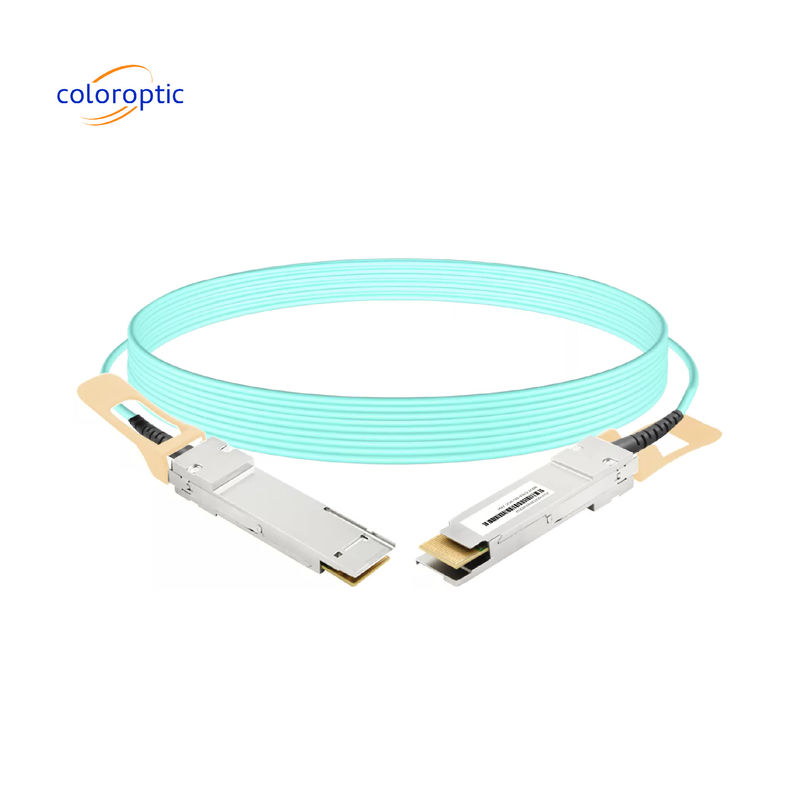

QSFP28 100G AOC for Arista 100G Switch and Router Ports Lower power, low error bit rate. High bend radius
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE, FCC |
| Model Number: | CO805-EFEF-16CCA-PC-001-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 100 Gb/s | Per Channel: | 25.78 Gb/s |
|---|---|---|---|
| Active: | Yes | Ethernet: | 100G IEEE 802.3 |
| Infiniband: | EDR | Operating Temperature: | -20℃~70℃ |
| Power: | +3.3V | Length: | 1m To 30m |
Product Description
Product Description:
Cost effective direct 100G equipment connections
Complete Connect’s QSFP28 100G Active Optical Cables (AOC) cable assemblies offer customers a high performance, cost effective I/O solution for 100G Ethernet and 25G Fibre Channel applications.
AOC QSFP28 cables offer the lowest cost connectivity for 100GBASE-SR4 as well as a high port density and low power requirement. For short distances AOC cables offer a lower cost alternative to QSFP28 transceivers and fibre patch cables.
Pre-coded
Each AOC cable is programmed prior to dispatch with correct code to ensure it is compatible with the brand of equipment. All Complete Connect QSFP28 AOC cables are fully tested for compatibility prior to dispatch and are MSA (Multi Source Agreement) compliant.
.
Features:
- 100G Ethernet
- 4 X 25G NRZ channel
- QSFP+ form factor (SFF-8636)
- Coded to equipment brands
- Power +3.3V
Technical Parameters:
| Product Series | CO800 SR8 |
| Polarity | Type B – 400G direct connect |
| Cable | 16 fibre micro core cable for internal use |
| Cable Diameter | 3 mm |
| Glass Cores | Corning Clearcurve® OM5 |
| MTP (MPO) End 1 | MTP ELITE® 16 fibre APC with offset key |
| MTP (MPO) End 2 | MTP ELITE® 16 fibre APC with offset key |
| Insertion Loss | < 0.12 dB mean; < 0.25 @ <97% |
| Return Loss | ≥ 25 dB |
| Product Warranty | 30 years |
Applications:
- IEEE 802.3 100GBASE-SR4
- 25G Fibre Channels
- SFF-8636
- ROHS compliant
- QSFP28 MSA
Customization:
Support and Services:
The MPO Patch Cord is designed to deliver high-density and high-speed data transmission for a variety of applications, including data centers, high-performance computing networks, and enterprise environments. Our product is thoroughly tested to ensure it meets industry standards for performance and reliability.
Technical support for the MPO Patch Cord includes troubleshooting assistance, guidance on best practices for installation and maintenance, and help with compatibility and interoperability issues. Our knowledgeable support team is well-versed in the technical aspects of MPO technology and can provide detailed advice on how to optimize your network's performance using our patch cords.
Services for the MPO Patch Cord include a comprehensive warranty, which covers any defects in materials or workmanship. Should you encounter any issues with your product, we are committed to providing a prompt resolution. Additionally, we offer optional services such as on-site support and customized product training to ensure you get the most out of your purchase.
Our commitment to customer satisfaction means that we are constantly improving our products and support offerings. We welcome feedback and inquiries from our customers, as it helps us to serve you better. Rest assured that our team is here to provide you with the quality support and service you need to maintain a robust and efficient network.
