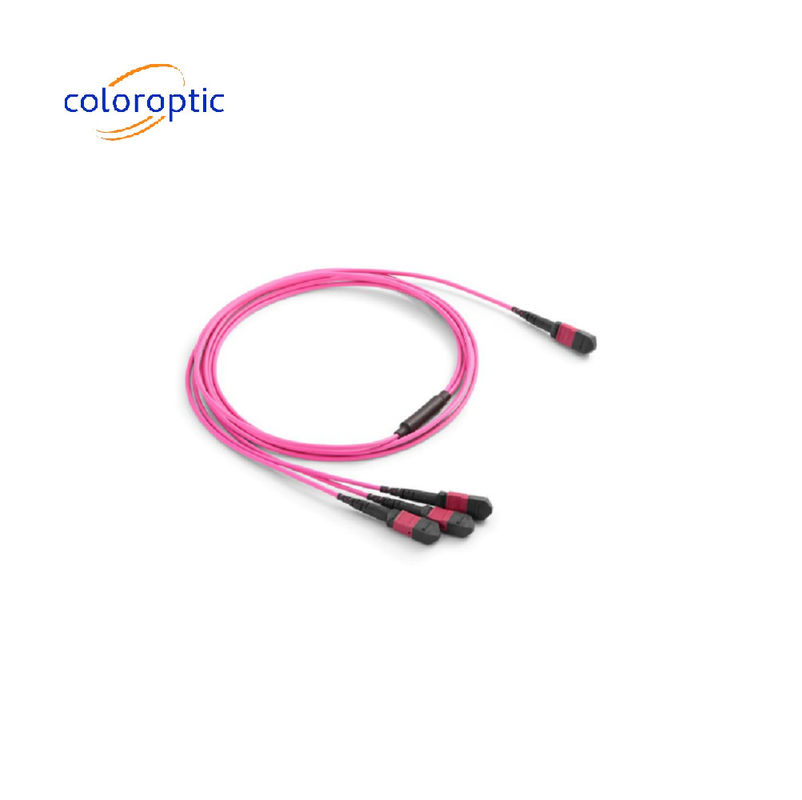

MTP / MPO Multimode Single Mode Fiber Patch Cable 40G / 100G Compatible OM3 / OM4
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Model Number: | 111 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | USD |
| Packaging Details: | Spool |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000 pieces/month |
|
Detail Information |
|||
| Cable Type: | Shuffle Cable | Fiber Grade: | G652D/G657A1/G657A2 |
|---|---|---|---|
| Cable Length: | Customized | Cable Color: | Aqua/ Black/ Blue/ Green/ Orange/ Red/ White/ Yellow |
| Return Loss: | ≥20dB | Fiber Mode: | Singlemode/Multimode |
| Cable Diameter: | Customized | Fiber Count: | 12F, 16F, 24F, 32F, 48F |
| Highlight: | MPO Single Mode Fiber Patch Cable,MTP Single Mode Fiber Patch Cable,MTP Multimode Fiber Patch Cable |
||
Product Description
MTP/MPO Patch Cord shuffle cable, 40G/100G Compatible, OM3/OM4
Product Description:
MTP Patch Cord, MTP/MPO Shuffle cable is also used for connecting MTP modules together as apermanent link, and be used with plug and-play modules or MTP/MPO connector panels to achieve multi-levelconnection of the extension of the pre-terminated trunk cable can also be extended by MTP/MPO panel withplug-and play module. They are used to interconnect cassettes, panels or ruggedized MTP/MPO fanouts.spanning M'DA, H'DA and E'DA zones. The difference is that its optical fiber routing is formulated according tothe requirements of the optical connection at the construction site, which can realize special optical fiberrouting diferent from the conventional polarity, reducing network installation or reconfiguration time andcost.
MTP Patch Cord is an ideal choice for high-speed data transmission in harsh environments. It is highly compatible with other optical fiber cables, and can be used with a wide range of optical components and connectors. With its excellent performance and cost-effective design, MTP Patch Cord is a great solution for short-distance transmission.
Applications:
- Data Centers
- 40/100G applications
- Storage area network- fiber channel
- Parallel optics
- InfiniBand
- The internal connector application in fiber equipment.
Customization:
- Low insertion loss and high return loss
- High precision MPO/MTP connector
- PC UPC APC end face polish
- Up to 288 fibers-ideal for high density applications
- 100% factory terminated and tested
- Pulling eyes are provided as an option to protect the fiber ends during installation.
- Save installation and reconfiguration time
- Customized length available
- ROHS Compliant
- TIA/EIA-568.3-D
- EIA/TIA-604-5
- IEC-61754-7
- IEC61753-1
- GR-1435-CORE
Specification:
| Construction | Description |
| Fiber Count | 12-288 Fibers |
| Fiber Mode | Single mode:G652/G657 Multimode:OM1OM2 0M3;OM4 |
| Fiber Brand | SMF-28 Ultra opticalfiberCorning ClearCurve" multimode fiber |
| Cable Jacket Material | Low Smoke Zero Halogen (LSZH), PVC, |
| Cable Jacket Ratings | Riser(OFNR) Plenum(OFNP) |
| Cable Jacket Color | G652/G657: Yellow OM1/0M2:Orange OM3:Aqua OM4: Aqua/Magentaor Customized |
| Polarity | Customized |
| Ferrule | 12F, 16F, 24F, 32F, 48F |
| Connector Type | MTP Female , Male /MPO Female, male |
| Connector Brand | US Conec MTP, Senko MPO, Nissin MPO, Sanwa MPO,FURUKAWA MPO |
| Connector Color | Customized |
| Boot Color | Green/Black/ or Customized |
| Pulling eye | Customized |
| Operating Temperature | -20Cto +70°C |
| Storage Temperature | 40Cto+85C |
Packing and Shipping:
Packaging and Shipping of MTP Patch Cord:
The MTP Patch Cord is packaged in anti-static bags and then placed in a box. The box is then wrapped in bubble wrap for an extra layer of protection. The box is then shipped to its destination using an appropriate shipping carrier.
FAQ:
Q: What is MTP Patch Cord?
A: MTP Patch Cord is a patch cord produced by Color Optic with the model number 111. It is made in China.
Q: What are the features of the MTP Patch Cord?
A: The MTP Patch Cord is a high-performance patch cord with a low insertion loss and high return loss, which provides stable transmission performance of optical signals.
Q: What material is used in the construction of the MTP Patch Cord?
A: The MTP Patch Cord is made from high-quality plastic and metal, providing excellent durability and reliability.
Q: What is the length of the MTP Patch Cord?
A: The MTP Patch Cord is available in lengths from 1m to 20m.
Q: What is the warranty period for the MTP Patch Cord?
A: The MTP Patch Cord comes with a one-year warranty.
