High Speed Networking MTP Patch Cord MPO / MTP Harness Cable
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-MPOTLC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 6000 pieces/month |
|
Detail Information |
|||
| Operating Temperature: | -20℃~+70℃ | Insertion Loss: | ≤0.2dB |
|---|---|---|---|
| Durability: | ≥1000 Times | Cable Color: | Aqua/ Black/ Blue/ Green/ Orange/ Red/ White/ Yellow |
| Fiber Grade: | G652D/G657A1/G657A2 | Return Loss: | ≥20dB |
| Fiber Mode: | Single Mode/Multimode | Product Name: | MTP Patch Cord |
| Highlight: | Networking MTP Patch Cord,High Speed MTP Patch Cord,MPO MTP Harness Cable |
||
Product Description

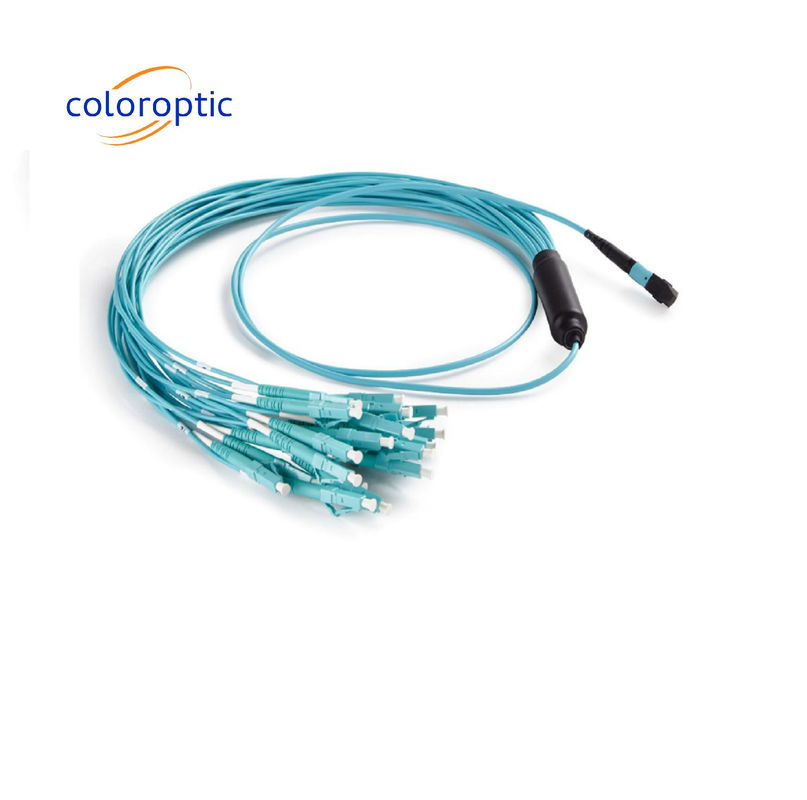

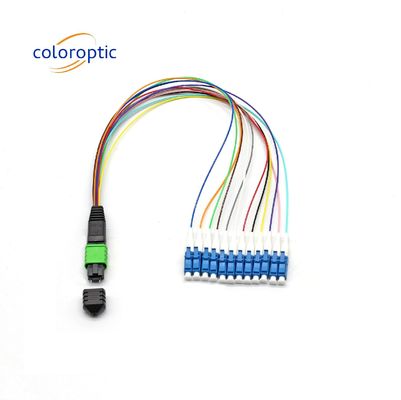

MTP Patch Cord for High-Speed Networking MPO/MTP® HARNESS CABLE
Product Description:
The single-mode and multimode MPO products are multi fiber connectors used in high-density backplane and Printed Circuit Board(PCB) applications in data and telecommunications system. The MPO connector offers up to 12 times the density of standard connectors, providing significant space and cost savings. MPO patch cord utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combination of 4,8,12 or 24 fibers. MTP®/MPO multi-fiber trunk cables are usually in mini-round cables and ribbon cables, with fanout kits broken down into 2~24 fiber 0.9mm or 2.0mm tails with connector LC, SC, ST, FC, etc. Cable total length, fanout length, connector type are customiz.
Application:
- Asynchronous Transmission Mode(ATM);
- Gigabit Ethernet;
- Active Deviced/Transceiver Interface;
- CATV, Video and Multimedia;
- Premise Installations;
- Telecommunication Networks;
- Parallel optical interconnect between PC Cards and patch panels;
- Interconnection for O/E module
Features:
- Precision molded MT ferrule;
- Reduction of installation time;
- Excellent optical and mechanical properties;
- 100% tested;
- Compliance with the 40 and 100Gbps protocols
| Product Description | |
| Connector A | MTP/F/PC: MTP Female,PC polish; MTP/F/APC: MTP Female,APC polish; MTP/M/PC: MTP Male,PC polish; MTP/M/APC: MTP Male,APC polish |
| Connector B | LC/UPC/DX;LC/APC/DX;LC/UPC/SX;LC/APC/SX;LCP/UPC;LCP/APC;SC/UPC/DX;SC /APC/DX;SC/UPC/SX;SC/APC/SX;FC/UPC;FC/APC;ST/UPC |
| Fiber Mode | OM1, OM2, OM3, OM4, OS2,G657A1 |
| Fiber Count&Type | 12R: 12F Ribbon; 12BR: 12F Bare Ribbon; 12B: 12F Mini Round Cable |
| Fanout Type | B2.0: 2.0 fan-out with split |
| Length | 1.5M/0.6M: Cable total length1.5M, fan-out length 0.6M |
| Cable Jacket Materials | LSZH |
| Cable Jacket Color | Aqua (OM3,OM4) Orange (OM1,OM2), Yellow (SM) |
| Polarity | A: Type A; B: Type B; C: |
