Passive Optical MTP Patch Cord Single Mode Cable 1M - 50M Length
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-MT12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Operating Temperature: | -40℃~+80℃ | Connector Type: | MTP/MPO |
|---|---|---|---|
| Cable Color: | Aqua/ Black/ Blue/ Green/ Orange/ Red/ White/ Yellow | Durability: | ≥1000 Times |
| Insertion Loss: | ≤0.2dB | Storage Temperature: | -40℃~+85℃ |
| Cable Type: | Ribbon/Round | Cable Length: | 1M-50M |
| Highlight: | Passive MTP Patch Cord,MTP Patch Cord Single Mode,MTP Optical Patch Cord |
||
Product Description

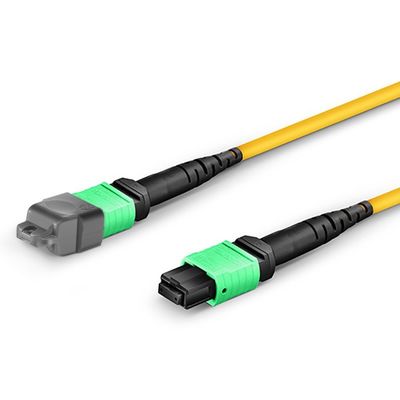

MTP Patch Cord MPO-12/APC-To-MPO12/APC Passive Optical Single Mode Cable
Product Description:
MPO-12/APC-to-MPO12/APC (8 fibers) passive optical single mode cable, is designed for linking InfiniBand and Ethernet multimode twin-port OSFP and single-port OSFP and QSFP112 transceivers together.The Multiple Push On, 12 fiber, Angled Polished Connectors (MPO-12/APC) uses 8 active fibers to transmit light, and 4inactive fibers as strength members. The APC end has a 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting the signal quality.
Twin-port OSFP 800Gb/s transceivers support two 4-channel fibers which are linked to other twin-port OSFP, single port OSFP or QSFP112 400Gb/s transceivers.
The fibers are “crossover”, Type-B cables that enable directly attaching two transceivers together and aligning the transmit laser fiber on pin 1 to “crosses over” and align with pin 12 of the opposite fiber end transceiver photodetector.
Typical usecase is linking twin port OSFP switches to each other, and to ConnectX-7 network adapters and/or BlueField-3 Data Processing Units (DPUs) in compute and storage servers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability. Mellanox optical solutions provide short, medium, and long reach scalability for all topologies, utilizing innovative optical technologies to enable high signal integrity and reliability.
.
Applications:

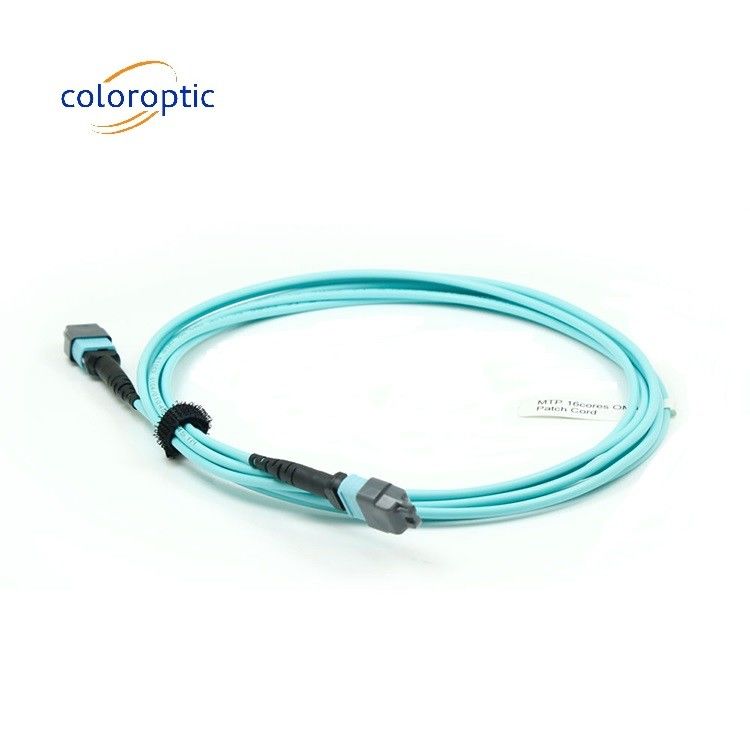

Color Optic MTP Patch Cords CO-MT12 are designed for Parallel Optics applications, such as 40/100G Ethernet and data centers. It is compliant with IEC 61754-7/ TIA 604-5 standards and provides superior performance. The MTP/MPO patch cord features high return loss and low insertion loss.
Customization:
Key Features
- Flexible round outer jacket for easy installation
- Push-pull latching for quick release
- Female-to-Female connectors
- 50/125 µm Multimode fibers
- 50m max reach
- Telcordia GR-1435 complian
- IEC Standard Connectors:
- MPO: IEC 61754-7 and ANSI/TIA/EIA 604-5-199OFNR/LSZH (low smoke zero halogen) jacket
- Supports InfiniBand, Ethernet and NVLink protocols
Applications
-
Optical short-reach high speed links in data centers
-
Data processing and storage systems
