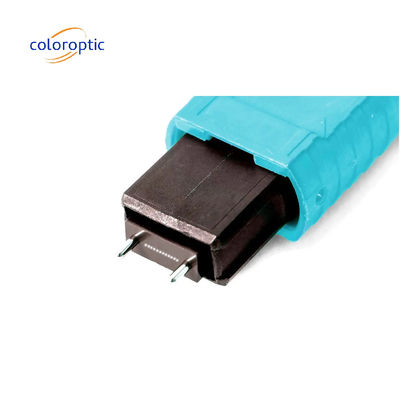

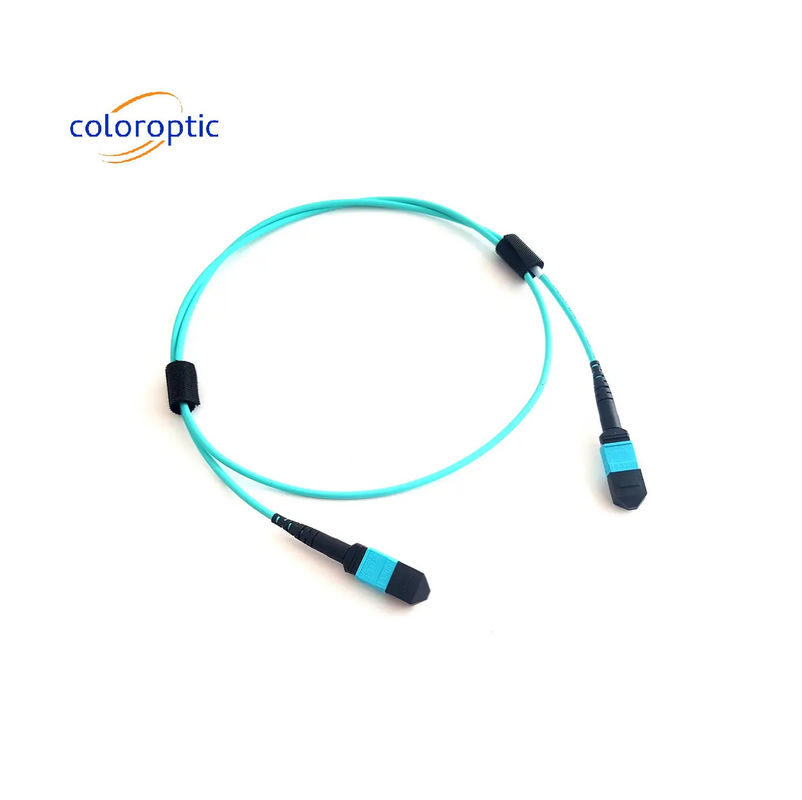

12 core Effortless Connectivity with MTP reg MPO network patch cord for SR4 and PSM4 Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-404-EFEF-12CCA-PC-001-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 7 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 50000 pieces/month |
|
Detail Information |
|||
| Color: | Aqua | MTP Genders: | Female To Female |
|---|---|---|---|
| Operating Temperature: | -20℃~70℃ | Insertion Loss: | ≤0.2dB |
| Return Loss: | ≥20dB | Core Count: | 12 |
| Cable Length: | 1m | Jacket Material: | PVC |
Product Description
Supporting SR4 40G and 100G and SR4.2 400G over multimode fibre
Complete Connect’s M400 Series MTP® (MPO) contains a full range or patch cords, breakouts, conversion cables and trunks for SR4 connectivity over multimode or PSM4 over singlemode fibre.
QSFP+, QSFP28 QSFP-DD direct connect
MTP® (MPO) 12 fibre patch cables are mainly used to directly connect between QSFP type SR4 or SR4.2 transceivers or to connect these transceivers to MTP® (MPO) trunks. Polarity B MTP® (MPO) patch cables with female connectors will enable a direct connection for SR4 transmission between two QSFP type transceivers.
Patch to MTP® (MPO) trunk cables
We also stock MTP® (MPO) patch cables that can connect to MTP® (MPO) trunks/backbones. These will typically also be polarity B but will have different gender connectors (male to female).
The polarity and gender of your patch cords will depend on your network layout and type of MTP® (MPO) adaptor used.
Product Description:
| Product Series | M400 |
| Polarity | Type B (Type A also in stock) |
| Cable | 12 fibre micro core cable for internal use |
| Cable Diameter | 3 mm |
| Glass Cores | Corning Clearcurve® OM4 |
| MTP (MPO) End 1 | MTP Elite® 12 fibre UPC |
| MTP (MPO) End 2 | MTP Elite® 12 fibre UPC |
| Insertion Loss | Typical < 0.12 dB | 97% of channels ≤ 0.25 dB |
| Return Loss | ≥ 25 dB |
| Product Warranty | 25 years |
.
Features:
-
Glass Core Corning® Clearcurve® OM4 Standards IEC 60793-2-10 Type A1.a3
ITU G651.1OMB @ 850 nm 3500 MHz⋅km to IEC 60793-1-41 OMB @ 1300 nm 500 MHz⋅km to IEC 60793-1-41 Att. @ 850 nm ≤ 2.3 dB/km Att. @ 1300 nm ≤ 0.6 dB/km EMB 4700 MHz⋅km to IEC 60793-1-49
Technical Parameters:
| Property | Value |
|---|---|
| Fiber Mode | OM3 |
| Core Count | 12 |
| Color | Aqua |
| Cable Length | 1m |
| Connector Polishing | PC |
| Connector Type | MPO |
| Fiber Grade | G652D |
| Storage Temperature | -40℃~85℃ |
| Operating Temperature | -20℃~70℃ |
| Jacket Material | PVC |
| Insertion Loss | ≤0.35dB |
| Polarity | Type-A |
| Cable Length | ±0.1m |
| Durability | 500 times |
Applications:
- 40G SR4 (QSFP+)
- 100G SR4 (QSFP28)
- 200G SR4 (QSFP-DD)
- 400G SR4.2 (QSFP-DD)
-
Transceiver to transceiver connection
These transceivers all require a type B cable with female MTP® (MPO) connector.
Customization:
MTP® (MPO) Connectors
| Housing | Red. Blue. Violet. Green |
| Easy Release | One end or both ends |
| MTP® PRO | With separate pins included |
Cable
| Diameter | 4.5 mm dual sheath |
| Colour | Red. Blue. Green |
| Labels | Bespoke wrap around or tags |
Packing and Shipping:
MPO Patch Cord Packaging and Shipping:
MPO patch cords are packaged in cartons, boxes, plastic bags, or other suitable containers. The packaging material should be non-corrosive, non-toxic, and waterproof. The products must be clearly marked with product specifications, product name, origin, and manufacturer.
The shipping of MPO patch cords must be in accordance with the international transportation regulations and the relevant national and international requirements. The delivery should be arranged in a timely manner and the goods should be shipped in an intact and safe condition.
