| Glass Core | Corning® SMF-28® Ultra |
| Standards | IEC 60794-3, ITU G657.A1 |
| Att. @ 1310 nm | ≤ 0.32 dB/km |
| Att. @ 1490 nm | ≤ 0.21 dB/km |
| Att. @ 1550 nm | ≤ 0.18 dB/km |
| Att. @ 1625 nm | ≤ 0.20 dB/km |
 |

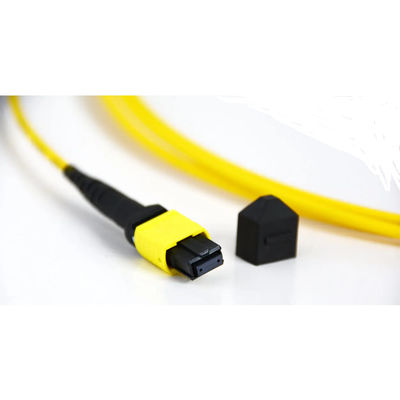

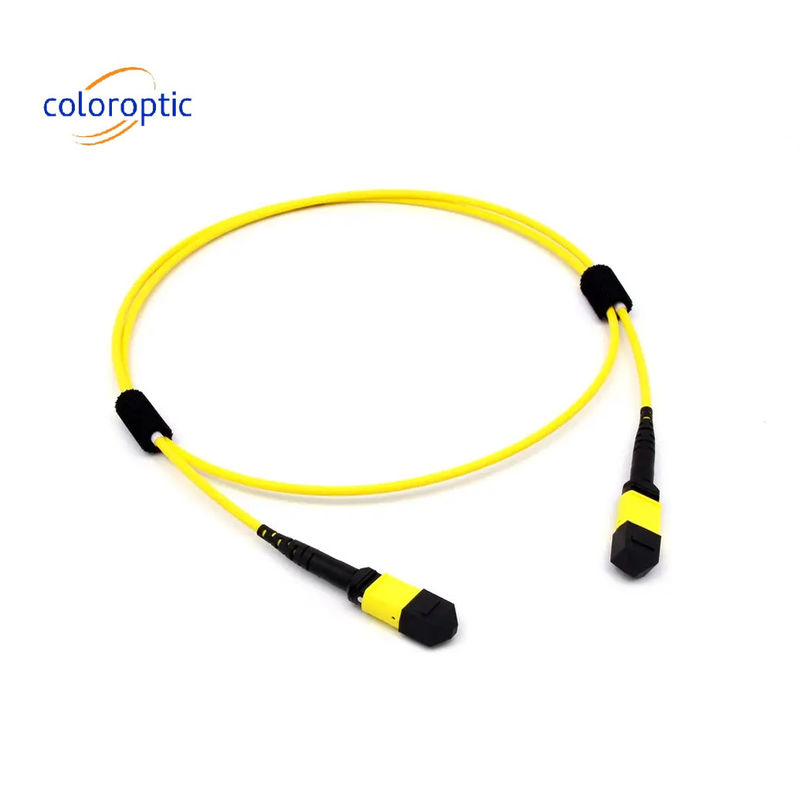

Mtp(Mpo) Singlemode 16 FIBRE G657.A1 (9/125) PATCH CABLE for PSM8 400G APC connector
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE, FCC |
| Model Number: | CO803-EFEF-16CCA-PC-001-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50000 pieces/month |
|
Detail Information |
|||
| Jacket Material: | PVC | Connector Type: | MPO |
|---|---|---|---|
| Insertion Loss: | ≤0.2dB | Cable Type: | Patch Cord |
| Connector Polishing: | PC | Operating Temperature: | -20℃~70℃ |
| MTP Genders: | Female To Female | Core Count: | 12 |
Product Description
Product Description:
MTP (MPO) Patch Cables for 400G SR8
CO800 Series
Complete Connect’s CO800 Series MTP® (MPO) contains a full range or patch cords, breakouts, conversion cables and trunks for SR8 connectivity over multimode or PSM8 over singlemode fibre.
QSFP+ and QSFP-DD direct connect
MTP® (MPO) 16 fibre patch cables are mainly used to directly connect between QSFP+ (or QSFP-DD) transceivers or to connect these transceivers to MTP® (MPO) trunks. Polarity B MTP® (MPO) patch cables and with female connectors will enable a direct connection for SR4 transmission between two QSFP+ (QSFP-DD) type transceivers.
Patch to MTP® (MPO) trunk cables
We also stock MTP® (MPO) patch cables that can connect to MTP® (MPO) trunks/backbones. These will typically also be polarity B but will have different gender connectors (male to female).
The polarity and gender of your patch cords will depend on your network layout and type of MTP® (MPO) adaptor used
.
Features:
MTP® Connector
| Ferrule | MT Elite® |
| IL (typical) | ≤ 0.12 dB |
| IL (<97%) | ≤ 0.25 dB |
| Return Loss | > 60 dB |
Technical Parameters:
| Product Series | CO800 PSM8 |
| Polarity | Type B – 400G direct connect |
| Cable | Internal use 16 core micro cable |
| Cable Diameter | 3 mm |
| Glass Cores | Corning® SMF-28® Ultra G657.A1 singlemode |
| MTP (MPO) End 1 | MTP ELITE® 16 fibre |
| MTP (MPO) End 2 | MTP ELITE® 16 fibre |
| Insertion Loss | < 0.45 dB |
| Return Loss | ≥ 60 dB |
| Product Warranty | 30 years |
Applications:
- 400G SR8 (QSFP-DD)
- 800G PSM4
- 800G DR4 (OSFP)
- 400G DR8 (QSFP-DD)
Note: These transceivers all require a type B cable with female MTP® (MPO) connector
Customization:
Polarity
| Type A | Made to order |
| Type C | Made to order |
MTP (MPO) Connectors
| Gender | Male or female |
| Housing Colour | Red blue violet green |
| Easy Release Tabs | One end or both ends |
Cable
| Cable Diameter | 4.5mm dual sheath |
| Sheath Colour | Red blue Green |
| Labels | Bespoke wrap around or tags |
