400G QSFP-DD FR4 CWDM4 2km Transceiver Module Duplex LC Connector
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Packaging Details: | Dimensions (LxWxH ) : 128*18.35*11.89 |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 50000 piece per month |
|
Detail Information |
|||
| Date Rate: | 400G | Wavelength: | CWDM |
|---|---|---|---|
| Connector: | Duplex LC | Net Weight: | 0.058kg |
| Highlight: | 400G QSFP-DD FR4 CWDM4,2km QSFP DD Module,CWDM4 QSFP DD Module |
||
Product Description

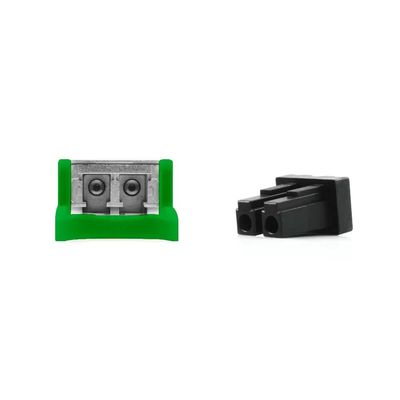

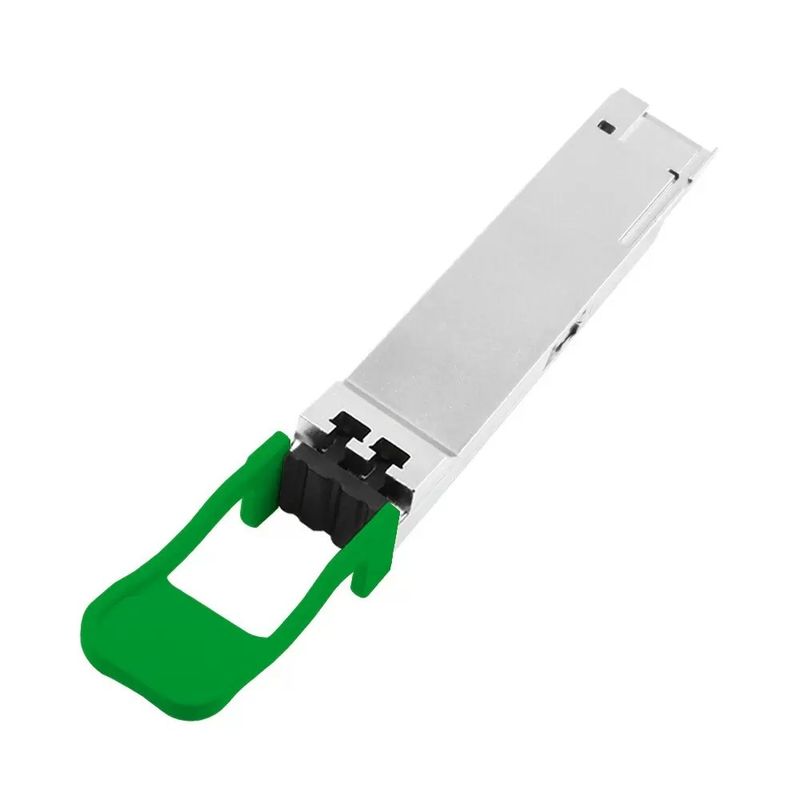

400G QSFP-DD FR4 CWDM4 2km LC Transceivers
Optical module designed for 2km optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals and multiplexes them into a single channel for 400Gb/s optical transmission.The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2.
Key Features
Hot-pluggable QSFP-DD form factor full-duplex transceiver module 4-channel cooled CWDM EML TOSA and PIN ROSA Data rate up to 106.25Gbps (53.125GBd PAM4) per channel Retimed 400GAUI-8 electrical interface Compliant with QSFP-DD MSA, CMIS 4.0 and IEEE 802.3cu 400GBASE-FR4 Reach up to 2km over SMF with KP4-FEC Duplex LC receptacle 10W maximum power dissipation Case operating temperature range: C-Temp Single 3.3V power supply Built-in digital diagnostic functionality RoHS compliant (lead free)
Application
400G Ethernet IEEE 802.3cu 400GBASE-FR4 Data Center Intraconnection
Product Details
| Part No. | QDD-400C431-02CL | Form Factor | QSFP-DD |
| Data Rate | 400G | Distance | 2KM |
| Wavelength | CWDM4 | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Duplex LC | Voltage | 3.3V |
| Cable Type | SMF | DDM | Yes |
| Transmitter Type | CWDM EML | Receiver Type | PIN |
| TX Power | -3.3~+3.5dBm | Receiver Sensitivity | < -7.7dBm |
| Protocols | QSFP-DD MSA | Warranty | 3 years |
