400G FR4 OSFP Module 2km Supports InfiniBand And Ethernet With MPO-12/APC
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-OP4H13FC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 400G | Wavelength: | 1310 |
|---|---|---|---|
| Distance: | 2 Km | Connector: | Duplex LC |
| Form Factor: | OSFP | Temperature: | 0~70°C |
| DDM: | Yes | Warranty: | 3 Years |
| Label: | Can Be Customized | Protocols:: | OSFP MSA |
| Modulation Format: | PAM4 | Application: | Data Center Interconnect |
| Highlight: | InfiniBand OSFP Module,400G OSFP Module |
||
Product Description
OSFP Module 400G FR4 2km Supports InfiniBand And Ethernet With MPO-12/APC

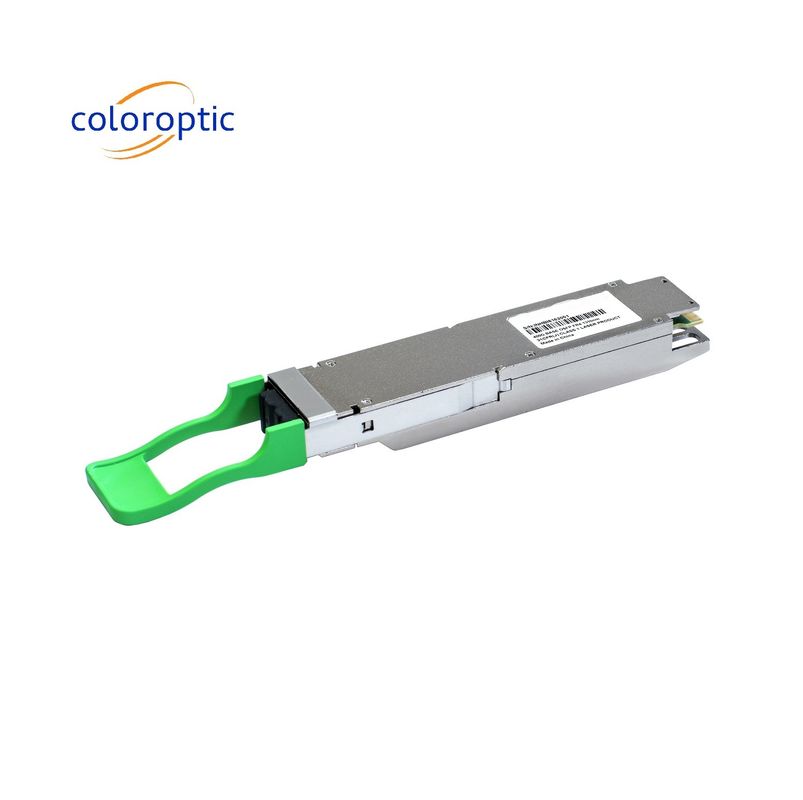

This product is a 400Gb/s Octal Small Form-factor Pluggable (OSFP) optical module designed for 2km optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals, and multiplexes them into a single channel for 400Gb/s optical transmission. Reversely, on the receiver side, the module optically demultiplexes a 400Gb/s optical input into 4 channels of CWDM optical signals, and converts them to 8 channels of 50Gb/s (PAM4) electrical output data.

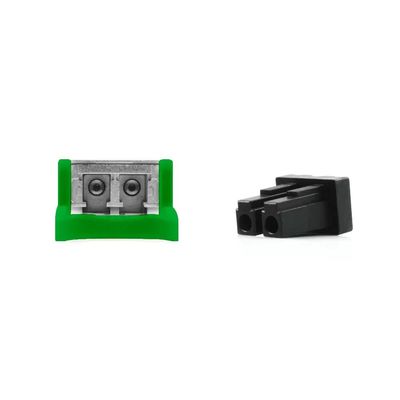

The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex LC connector for the optical interface and a 76-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. Host FEC is required to support up to 2km fiber transmission.
Key Features
- OSFP MSA compliant
- 4 CWDM lanes MUX/DEMUX design
- 100G Lambda MSA 400G-FR4 Specification compliant
- Up to 2km transmission on single mode fiber (SMF) with FEC
- Operating case temperature: 0 to 70oC
- 8x53.125Gb/s electrical interface (400GAUI-8)
- Data Rate 106.25Gbps (PAM4) per channel.
- Maximum power consumption 12W
- Duplex LC connector
- RoHS compliant
Application
- 400G Ethernet
- Infiniband interconnects
- Datacenter Interconnect
- Enterprise networking
