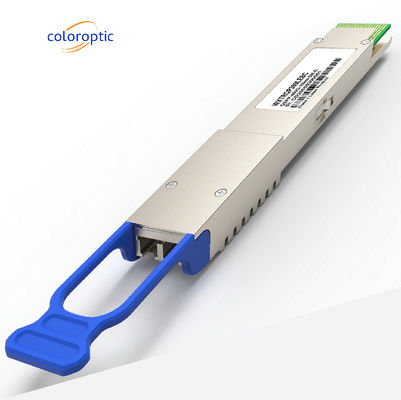

OSFP 400G CWDM4 Transceiver 10km With LC Connector For Infiniband And Ethernet
Product Details:
| Place of Origin: | China |
| Brand Name: | ColorOptic |
| Certification: | ROHS, CE |
| Model Number: | CO-OS4HCWLC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 8 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Media Type: | Single-mode | Operating Temperature: | 0℃ To 70℃ |
|---|---|---|---|
| Wavelength: | CWDM4 | Compatibility: | IEEE802.3ae |
| Connector: | MPO-12/16 | Dimension: | 70mm*42mm*18mm |
| Form Factor: | OSFP Module | Power Consumption: | 2.5W |
| Highlight: | CWDM4 Transceiver 10km,400G CWDM4 Transceiver,OSFP 400G CWDM4 |
||
Product Description
OSFP 400G Transceiver CWDM4 10km With LC Connector Supports Infiniband And Ethernet
Product Description:
The CO-OS4HCWLC OSFP 400G transceiver CWDM4 10km is a high-speed optical module designed for data center and telecommunications applications. It uses Coarse Wavelength Division Multiplexing (CWDM) technology to transmit four channels of 100G data over a single-mode fiber optic cable.
Here are the specifications for the OSFP 400G transceiver CWDM4 10km:
Data Rate: 400Gbps
Wavelength: 1271nm, 1291nm, 1311nm, 1331nm
Maximum Reach: 10 kilometers
Fiber Type: Single-mode
Connector Type: OSFP
Operating Temperature Range: 0°C to 70°C
Power Consumption: ≤12W
Digital Diagnostics Monitoring (DDM): Yes
This transceiver is compliant with the OSFP MSA (Multi-Source Agreement) and supports Ethernet, InfiniBand, and other industry-standard protocols. It is ideal for high-density data center applications that require high bandwidth and long-distance transmission.
Technical Parameters:
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance | D | 0.02 | 10 | km | ||
| Power Consumption | 12 | W | ||||
| Center Wavelength | L0 | 1264.5 | 1271 | 1277.5 | nm | |
| L1 | 1284.5 | 1291 | 1297.7 | nm | ||
| L2 | 1304.5 | 1311 | 1317.5 | nm | ||
| L3 | 1324.5 | 1331 | 1337.5 | nm | ||
| Average Launch Power,each Lane | PAVG | -3.4 | 5.3 | dBm | ||
| OMA, each Lane | POMA | -0.4 | 5.1 | dBm | ||
| Damage Receiver power | 5.5 | dBm | ||||
| Receiver Saturation | OVERLOAD | 4.5 | ||||
| Receiver Sensitivity(OMA) | SEN | -6.1 | dBm | BER=2E-4, 26.5625Gbps, PRBS31,max (-6.1 ,SECQ -7.5) |
Applications:
The ColorOptic CO-OS4HCWLC is an OSFP Module designed for NDR networking. The module is SFF-8636 based and is specifically designed for use in OSFP switches. It offers data rates of up to 800Gbps and is IEEE802.3ae compliant. It can operate in relative humidity levels of between 5% and 95%, and in temperatures of between 0℃ and 70℃. It is also suitable for storage in temperatures ranging from -40℃ to 85℃.
