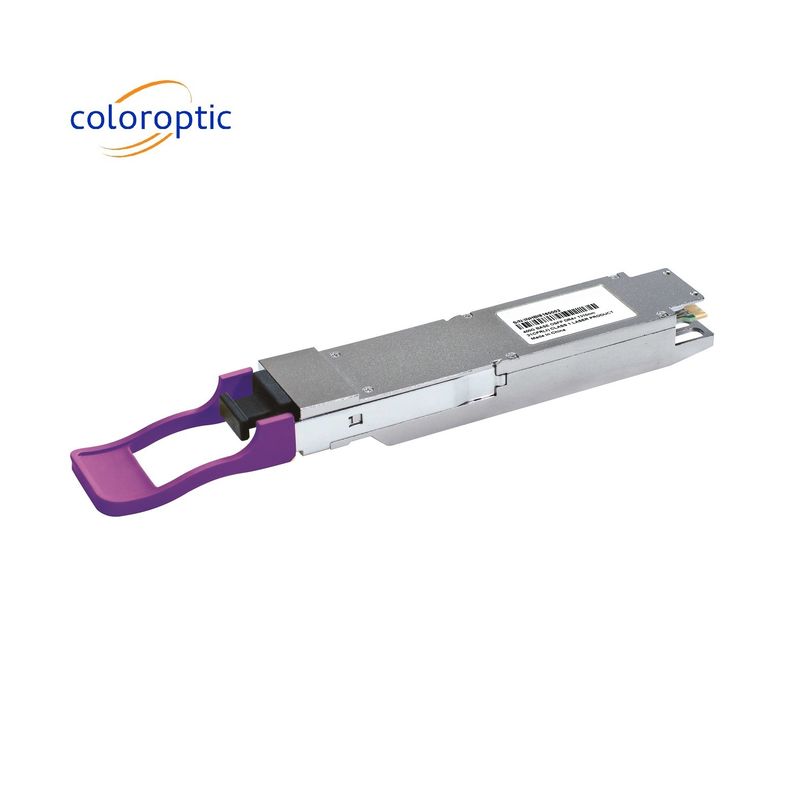

1310nm OSFP Module 400G DR4 With 500m Reach Compliant To Latest QSFP MSAs
Product Details:
| Place of Origin: | China |
| Brand Name: | ColorOptic |
| Certification: | ROHS, CE |
| Model Number: | CO-OS4H13DR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 8 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 400Gbps | Reach Distance: | 500m |
|---|---|---|---|
| Form Factor: | OSFP Module | Operating Temperature: | 0℃ To 70℃ |
| Fiber Type: | Single-mode | Storage Temperature: | -40℃ To 85℃ |
| Connector: | MPO-12/16 | Application: | Data Center Interconnect |
| Highlight: | 1310nm OSFP Module,OSFP Module 500m Reach,OSFP 400G DR4 |
||
Product Description
OSFP Module 400G DR4 1310nm With 500m Reach Distance Compliant To Latest QSFP MSAs
Product Description:
The OSFP Module 400G DR4 is a specification for a high-speed optical transceiver module. It supports a data rate of 400Gbps and utilizes the DR4 (Duplex Receptacle 4-lane) optical interface. This module is designed for use in data centers and other high-performance networking applications..
Features:
The basic features of the OSFP Module 400G DR4 include:
- Data rate: 400Gbps
- Optical interface: DR4 (Duplex Receptacle 4-lane)
- Transmission distance: up to 500 meters over multimode fiber
- Hot pluggable
- Low power consumption
- Compliant with industry standards and MSA specifications
Technical Parameters:
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with OM3 | D | 2 | 500 | m | ||
| Power Consumption | 10 | W | ||||
| Center Wavelength | λC | 1304.5 | 1310 | 1317.5 | nm | |
| Average Launch Power, each Lane |
PAVG | -2.9 | 4 | dBm | ||
| Outer Optical Modulation Amplitude (OMAouter), each Lane |
POMA | -0.8 | 4.2 | dBm | ||
| Average Receive Power, each Lane |
-5.9 | 4 | dBm | |||
| Receiver Sensitivity (OMAouter), each Lane |
SEN | max(-3.9,SECQ-5.3) | dBm |
Applications:
The ColorOptic CO-OS4H13DR 400G DR4 is commonly used in data centers and high-performance networking environments. It is specifically designed for applications that require high-speed connectivity and reliable data transmission. Some typical applications of the OSFP Module 400G DR4 include cloud computing, artificial intelligence, big data analytics, and high-performance computing. Its versatility and compatibility make it suitable for various networking applications that demand high bandwidth and low latency.
FAQ:
- Q: What is ColorOptic OSFP Module?
A: ColorOptic OSFP Module (model number CO-OS4H13DR) is a small form-factor pluggable transceiver, which is designed for high speed communication and data transmission. It is manufactured by ColorOptic, a Chinese company. - Q: What are the features of ColorOptic OSFP Module?
A: ColorOptic OSFP Module (model number CO-OS4H13DR) features a high speed data rate of up to 10 Gbps, a power consumption of up to 1.8 W, and a low power standby mode. It is also compatible with digital optical monitoring and power monitoring.
