400Gb/S OSFP SR8 100m OM3 MMF Module With FEC / MPO-16 Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-OS4H85SC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 400G | Wavelength: | 850nm |
|---|---|---|---|
| Distance: | 100m | Connector: | MPO-16 |
| Form Factor: | OSFP | Temperature: | 0~70°C |
| DDM: | Yes | Warranty: | 3 Years |
| Label: | Can Be Customized | Protocols:: | MSA |
| Application: | Data Center Interconnect | Technology: | Parallel Optics |
| Highlight: | OSFP MMF Module,OM3 MMF Module |
||
Product Description
400Gb/S OSFP SR8 100m MMF OM3 Module With FEC & MPO-16 Connector

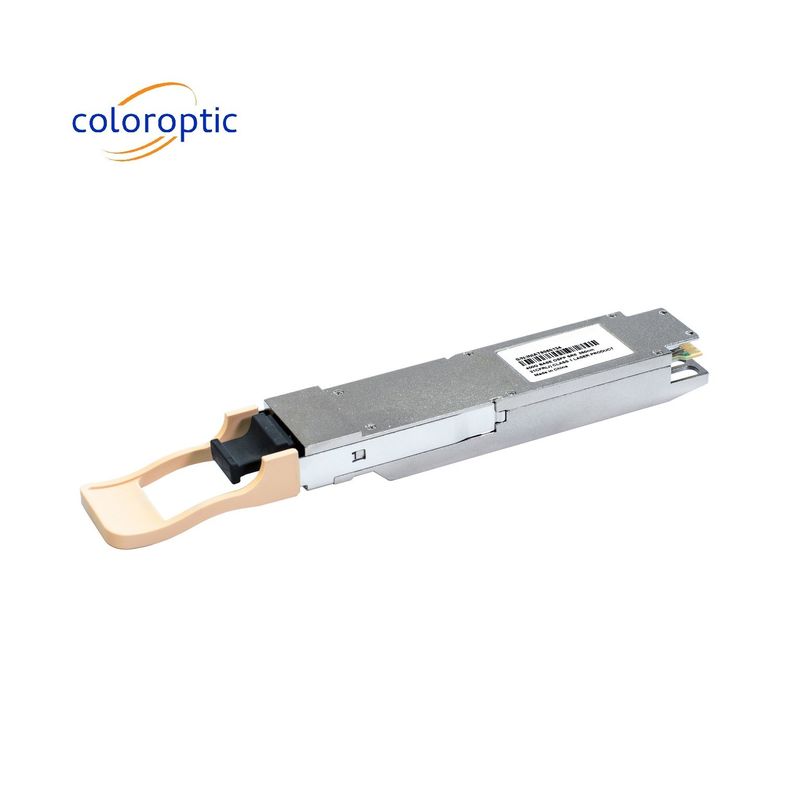

This product is a parallel 400Gb/s Octal Small Form-factor Pluggable (OSFP) optical module. It provides increased port density and total system cost savings. The OSFP full-duplex optical module offers 8 independent transmit and receive channels, each capable of 53.125Gb/s operation for an aggregate data rate of 400Gb/s on 100 meters of OM3 multi-mode fiber.

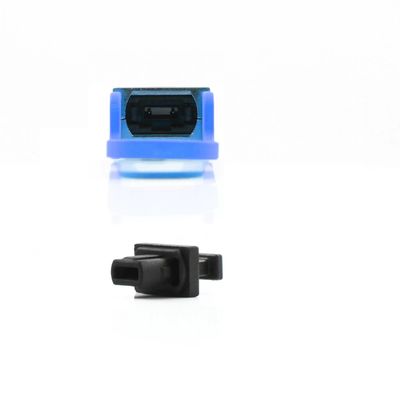

An optical fiber cable with an MTP/MPO-16 connector can be plugged into the OSFP SR8 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through an OSFP MSA-compliant edge type connector.
Key Features
- OSFP MSA compliant
- 8 parallel lanes on 850nm center wavelength
- Compliant to IEEE 802.3bs Specification
- Up to 100m transmission on multi-mode fiber (MMF) OM3 with FEC
- Operating case temperature: 0 to 70oC
- 8x53.125Gb/s electrical interface (400GAUI-8)
- Data Rate 53.125Gbps (PAM4) per channel.
- Maximum power consumption 12W
- MPO-16 connector
- RoHS compliant
Application
- 400G Ethernet
- Infiniband interconnects
- Datacenter Interconnect
- Enterprise networking
Product Details
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with OM3 | D | 0.5 | 100 | m | ||
| Power Consumption | 10.5 | W | ||||
| Center Wavelength | λC | 840 | 850 | 860 | nm | |
| Average Launch Power, each Lane |
PAVG | -6.5 | 4 | dBm | ||
| Outer Optical Modulation Amplitude (OMAouter), each Lane |
POMA | -4.5 | 3 | dBm | ||
| Average Receive Power, each Lane |
-8.4 | 4 | dBm | |||
| Receiver Sensitivity (OMAouter), each Lane |
SEN | RS = max(−6.5, SECQ − 7.9) dBm | dBm |
