Fiber Optic Harness MTP Patch Cables Multimode For Harsh Conditions
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Model Number: | Color-PA-MPT-M-MPT-F-5-OM3-150-12-B |
|
Detail Information |
|||
| Fiber Mode: | Multimode | Fiber Count: | 4/8/12/24/48 |
|---|---|---|---|
| Return Loss: | ≥20dB | Insertion Loss: | ≤0.2dB |
| Durability: | ≥1000 Times | Cable Type: | Ribbon/Round |
| Fiber Grade: | G652D/G657A1/G657A2 | Connector Type: | MTP/MPO |
| Highlight: | Harness MTP Patch Cable,MTP Patch Cables Multimode,Harness MTP Fiber Optic Cables |
||
Product Description
MPT Patch Cord Harness Cable for Harsh Conditions -40C- 85C Durability ≥1000 Times
Product Description:

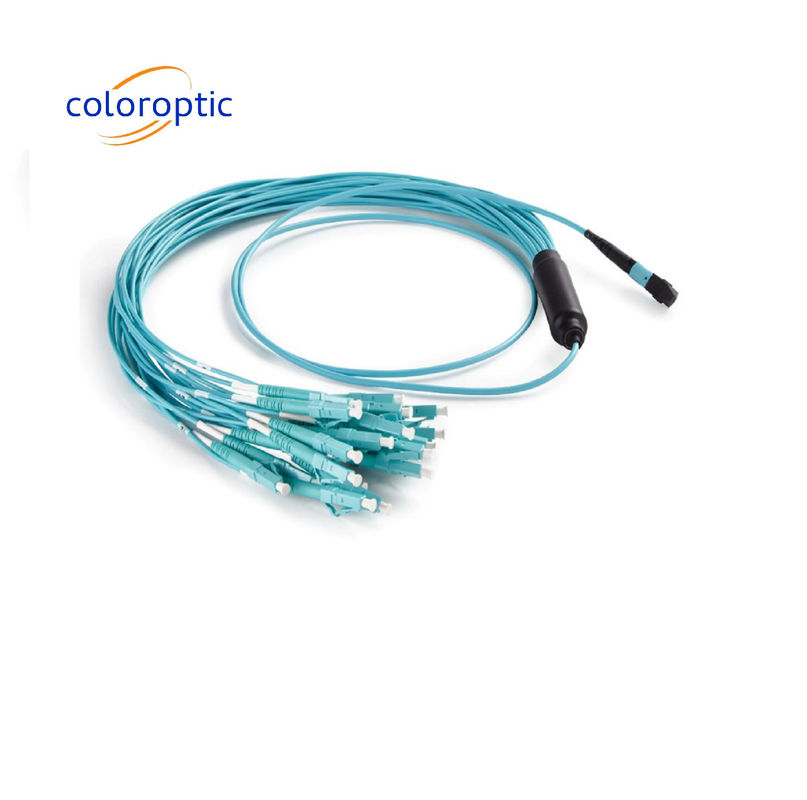

MTP harness cables are a kind of breakout/fanout MPO cable assembly with one MTP/MPO connectoron one end and multiple single-fiber connectors (LC, SC, FC, etc,) on the other end, designed for datadistribution and routing to patch panels. t is used to transitioning from trunk backbone assemblies to fiberrack system. The harness cables are fully configurable, available with a variety of cable and connectorcombinations. For the hardware and equipment in the same cabinet, the longer patch cords can provideflexibility at any location, and the branch cables can be winded into the vertical cable organizer.
Applications:
- Data Center Interconnect
- High-Density Fiber Management
- Telecommunication Networks and CATV networks
- LAN/WAN Premises
Customization:
Customized MTP Patch Cord
- Brand Name: Color Optic
- Model Number: Color-PA-MPT-M-MPT-F-5-OM3-150-12-B
- Place of Origin: China
- Cable Type: Ribbon/Round
- Cable Length: 1M-50M
- Product Name: MTP Patch Cord
- Operating Temperature: -20℃~+70℃
- Durability: ≥1000 Times
- IEC Standard 61754 & 61753-1, TIA/EIA 568.3-D& 604 Series; GR1435-CORE, GR 2866-CORE ,GR 326-CORE.
Specification:
| Construction | Description |
| Fiber Count | 8-288 Fibers |
| Fiber Mode | Single mode:G652/G657 Multimode:OM1OM2 0M3;OM4 |
| Fiber Brand | SMF-28 Ultra opticalfiberCorning ClearCurve" multimode fiber |
| Cable Jacket Material | Low Smoke Zero Halogen (LSZH)PVC |
| Cable Jacket Ratings | Riser(OFNR) Plenum(OFNP) |
| Cable Jacket Color | OS2/G657:Yellow OM1/0M2:Orange OM3: Aqua; OM4: Aqua/Magenta or Customized |
| Polarity | Customized |
| Ferrule | 12F,16F,24F,32F |
| Connector Type | MTP/MPO |
| Connector Brand | US Conec MTP, Senko MPO, Nissin MPO, Sanwa MPO,FURUKAWA MPO |
| Connector Color | Customized |
| Boot Color | Green/Black/ or Customized |
| Single-fiber connector | LC, SC, FC,etc. |
| Pulling eye | Customized |
| Operating Temperature | -20Cto +70°C |
| Storage Temperature | 40Cto+85C |
