DCM Dispersion Compensation Module 1550nm Wavelength For Long Distance Trunk Network
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-DCMC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | TT, LC, Western Union |
|
Detail Information |
|||
| Connect Fiber: | SMF | Wavelength: | 1550NM |
|---|---|---|---|
| Type: | Optical Networking | Storage Temperature: | -40°C To +85°C |
| Reflection Bandwidth(0.5dB): | 0.4 | Product Name: | Passive DCM |
| Relative Humidity: | 5% To 95% | Weight: | 0.5kg |
| Highlight: | DCM Dispersion Compensation Module,Dispersion Compensation Module 1550nm |
||
Product Description
Dispersion Compensation 1550nm Fiber Module For DWDM Long Distance Trunk Network
Product Description:
Dispersion Compensation Module (DCM) is designed to fix the form of optical signals that are deformed by chromatic dispersion. The main constituent of DCM is DCF (Dispersion Compensation Fiber) with a negative chromatic dispersion value within the wavelength range between 1525nm and 1565nm. The module offers a high level of compensation while maintaining a low flat insertion loss as well as a low latency. When combined with our EDFA and OEO, DCM provides a simple, reliable, and cost-effective long-haul transport solution, making signals go further without regeneration.
Features:
| Parametre | Unit | Value | |||
| mim | typical | max | |||
| Dispersion Value | 10KM | ps/nm | -165 | -170 | -175 |
| 20KM | -330 | -340 | -350 | ||
| 40KM | -660 | -680 | -700 | ||
| 60KM | -990 | -1020 | -1050 | ||
| 80KM | -13200 | -1360 | -1400 | ||
| 100KM | -1650 | -1700 | -1750 | ||
| 120KM | -1990 | -2040 | -2090 | ||
| Center wavelength | nm | 1550.12 | |||
| Reflection Bandwidth(0.5dB) | nm | 0.4 | |||
| Insertion loss | 20KM | dB | 3.5 | ||
| 40KM | 5.2 | ||||
| 60KM | 6.8 | ||||
| 80KM | 8.0 | ||||
| 100KM | 9.5 | ||||
| 120KM | 11.5 | ||||
| PMD | ps | 1.0 | |||
| PDL | dB | 0.5 | |||
| Wavelength Stability | nm | 0.07 | |||
| Package | Module | ||||
| 1U rack | |||||
Applications:
- Long-distance trunk network
- DWDM System
Customization:
Color Optic CO-DCMC WDM Model
| Product No. | Product description |

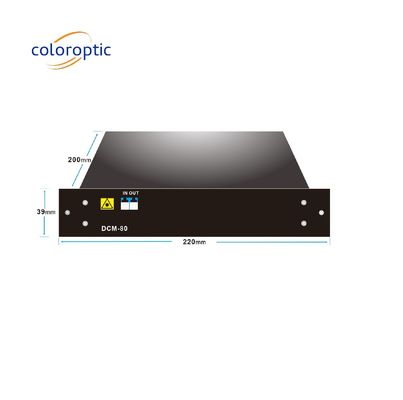

| DCM-10KM | DCM 10KM LC/UPC Plug-in LGX Box |
| DCM-20KM | DCM 20KM LC/UPC Plug-in LGX Box |
| DCM-30KM | DCM 30KM LC/UPC Plug-in LGX Box |
| DCM-40KM | DCM 40KM LC/UPC Plug-in LGX Box |
| DCM-60KM | DCM 60KM LC/UPC Plug-in LGX Box |
| DCM-80KM | DCM 80KM LC/UPC Plug-in LGX Box |

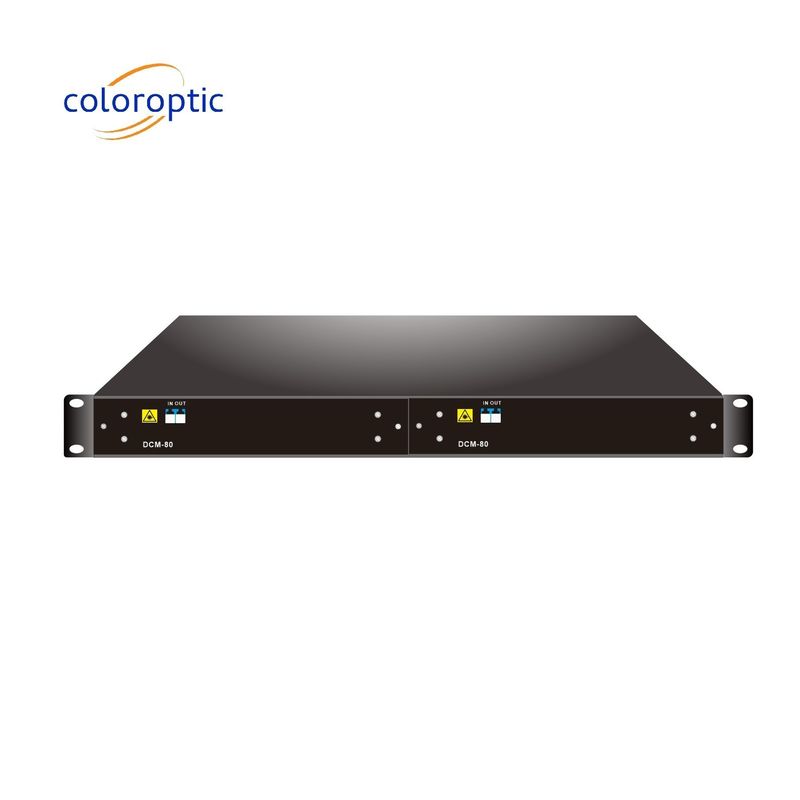

| DCM-100KM | DCM 100KM LC/UPC 1U Rack |
| DCM-120KM | DCM 120KM LC/UPC 1U Rack |
| 1U02-2LGX | 19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm |
Packing and Shipping:
The WDM Model products should be packaged and shipped as follows:
- Ensure that the product is securely wrapped in a bubble wrap or other protective material.
- Place the product in a box or other container with an appropriate cushioning material.
- Seal the product in the box or container with a strong adhesive tape.
- Label the box or container with the appropriate shipping information.
- Securely attach the shipping label to the box or container.
- Send the product to the designated destination.
