Single Fiber WDM Model 40 Channel DWDM AAWG WDM System LC Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-DMUX40CHS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Warranty: | 3 Years | Wavelength: | ITU C Band |
|---|---|---|---|
| Weight: | 1.5kg | Connector: | LC/UPC |
| Dimension: | 250mm X 438mm X 44mm | Storage Temperature: | -40°C To +85°C |
| Channel Spacing: | 50Hz | ITU Band: | ITU C Band |
| Highlight: | WDM Model 40 Channel,AAWG WDM Model,40 Channel Single Fiber WDM |
||
Product Description
WDM Model 40 Channel DWDM AAWG Single Fiber Low Inser Loss WDM System LC Connector
Product Description:

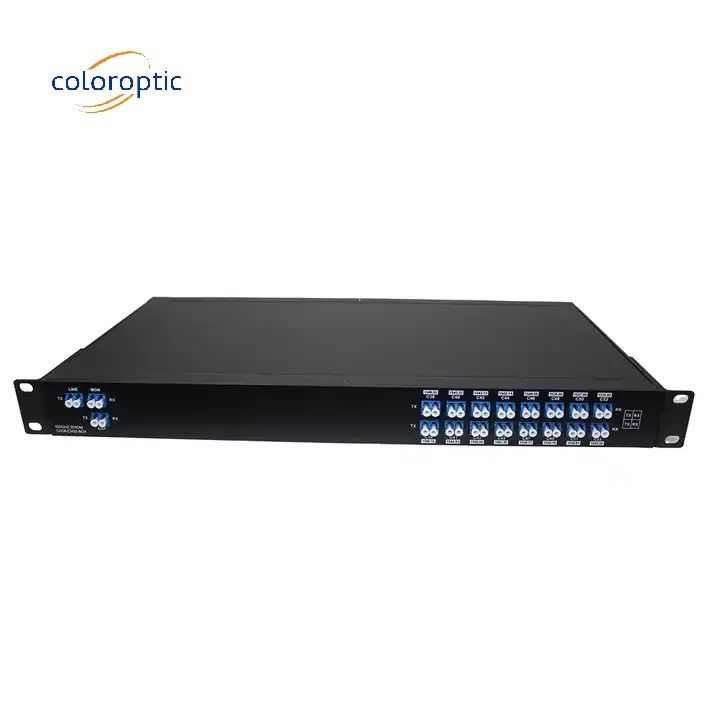

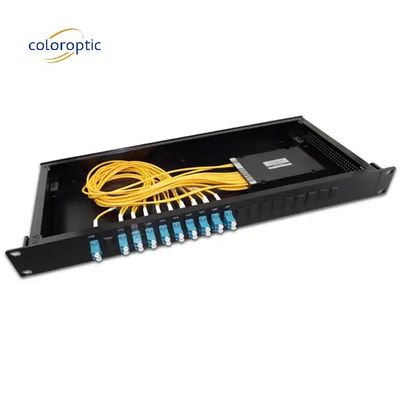

Color Optic CO-DMUX40CHS is Single fiber passive optical multiplexer/demultiplexer, which is made up of AAWG module.
AAWG (Athermal Arrayed Waveguide Grating) module is based on the silica on silicon technology and no electrical power is required.
The specifications serve for C-band AWG Flattop MUX/DEMUX in DWDM system.
That provides a reliable, flexible and efficient high bandwidth carrying solution for the operators, Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Features:
- Low Insertion Loss
- High Isolation
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: ITU C-BAND
- Wide Operating Temperature: -20 to 75°C
Applications:
- DWDM System
- PON Networks
- CATV links
- Fiber optical amplifier
- Wavelength routing
Customization:
|
Parameter |
Specifications |
Unit |
||
| Min | Typ | Max | ||
| Channels | 40 | |||
|
Insertion Loss |
5.0 |
5.5 |
dB | |
| dB | ||||
| Channel Spacing | 100 | GHz | ||
| Channel Bandwidth | λC± 0.11 | nm | ||
| Adjacent Channel Isolation | 25 | dB | ||
| Non-Adjacent Channel Isolation | 30 | dB | ||
| Return Loss | 40 | dB | ||
| ITU Frequency | 192 | 195.9 | THz | |
| Center Frequency Accuracy | 50 | 50 | pm | |
| Insertion Loss Uniformity | 1 | dB | ||
| Ripple | 0.5 | dB | ||
| 1dB Bandwidth | 0.4 | nm | |||
| 3dB Bandwidth | 0.6 | nm | |||
| Polarization Dependent Loss | 0.5 | dB | |||
| Polarization Mode Dispersion | 0.5 | ps | |||
| Chromatic Dispersion | – 20 | 20 | ps/nm | ||
Packing and Shipping:
The WDM Model is packaged and shipped in a high-quality corrugated box that is designed to keep the product safe during transit. The box is marked with the product name, size, and quantity on the outside. Inside the box, each unit is individually wrapped in bubble wrap to protect against shock and impact. The box also includes any necessary instructions or paperwork for assembly or use.
