8 Channels WDM Model CWDM MUX With LC Connector For Access Network
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-CMUX8CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Mux Type: | CWDM MUX | Operating Temperature: | 0°C To +75°C |
|---|---|---|---|
| Weight: | 0.9kg | Connector: | LC/UPC |
| Wavelength: | 1270nm~1610nm | Connect Fiber: | SMF |
| Type: | Optical Networking | Applications: | CATV Links/ WDM Systems |
| Highlight: | 8 Channels WDM Model,CWDM MUX WDM Model |
||
Product Description
WDM Model 8 Channels CWDM MUX With LC Connector For Access Network
Product Description:

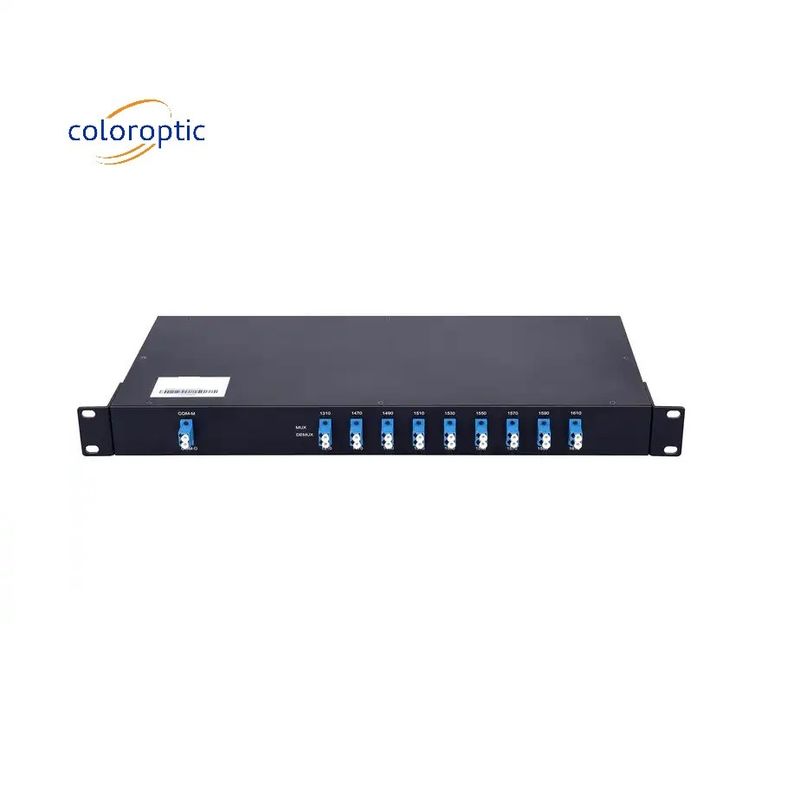

WDM Model is a 1RU chassis device with LC/APC connector, which is capable of 8 channels MUX/DEMUX with a wavelength of 1270nm~1610nm. The model is small and compact, with its dimension.It offers 8 channels CWDM multiplexer/ demultiplexer.
WDM Model is designed to provide perfect performance for optical networks with a wide variety of applications. It is a reliable and cost-effective solution for network upgrade and expansion. The model also offers high port density, low insertion loss, and wide operating temperature range, as well as excellent stability and reliability.
WDM Model is extremely easy to install and configure. With its lightweight and small size, it can be easily mounted in tight spaces. It is also highly compatible with other devices, providing optimal performance and efficient operation.
Features:
- Product Name: CWDM Model
- Storage Temperature: -0°C To +75°C
- Connector: LC/UPC
- Weight: 0.2kg
- Type: Optical Networking
- LC/APC Connector
- 16CHANNELS MUX
- CWDM MUX
Applications:
| Parameters | Specification | ||
|
Insertion Loss(dB) |
Min | Max | |
| 0.8 | 2.6 | ||
| CWDM Central Wavelengths [λc] (nm) Options | 1270,1290,1310,1330,1350,1370,1390,1410,1430, 1450,1470.1490.1510.1530.1550.1570.1590.1610 | ||
| Passband (@-0.5dB bandwidth)(nm) | ±7.5 | ||
|
Insertion |
Adjacent Channel | > 30 | |
| Non-Adjacent Channel | > 40 | ||
| Passband Ripple (dB) | ≤0.40 | ||
| Polarization Dependent Loss (dB) | < 0.30 | ||
| Polarization Mode Dispersion (ps) | < 0.10 | ||
| Return Loss (dB) | > 45 | ||
| Directivity (dB) | > 50 | ||
| Maximum Optical Power (mw) | 500 | ||
| Operating Temperature (℃) | -20 ~ +70 | ||
| Storage Temperature (℃) | -40 ~ +85 | ||
| Fiber Type | SMF-28 Ultra | ||
| Connector Type | COM/1550:LC/UPC Other: LC/UPC | ||
| Pigtail Length (m) | 0.5 | ||
| Package Dimension (mm) | 1RU Rack | ||
Customization:
- Brand Name: Color Optic
- Model Number: CO-CMUX8CH
- Place of Origin: China
- Power Consumption: 2W
- Warranty: 3 Years
- Connect fiber: SMF
- Storage Temperature: -40°C To +85°C
Packing and Shipping:
WDM Model packaging and shipping:
Packaging: The WDM Model is packaged in an anti-static bag for storage and transportation.
Shipping: The WDM Model is shipped using a standard shipping carrier with tracking and signature confirmation. Delivery time is usually between 3-5 business days.
