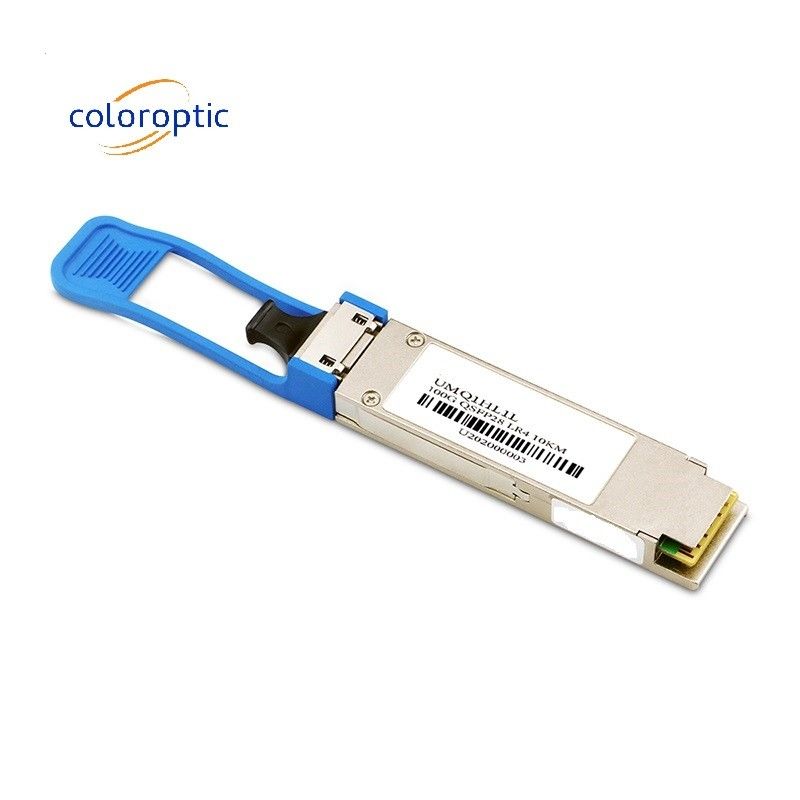

100Gb/s 10km LR4 QSFP28 Optical Transceiver For Infiniband QDR 100G Ethernet
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-Q81H13LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 100G | Wavelength: | LAN-WDM(4x) |
|---|---|---|---|
| Distance: | 10km | Connector: | Duplex LC |
| Form Factor: | QSFP28 | Temperature: | 0~70°C |
| DDM: | Yes | Protocals: | MSA |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Power Dissipation: | <3.5W | Application: | 100GBASE Ethernet Links |
| Highlight: | 10km QSFP28 Optical Transceiver,100G Ethernet QSFP28 Optical Transceiver |
||
Product Description
100Gb/s QSFP28 LR4 10km Transceiver Infiniband QDR and 100GBASE-LR4 Ethernet Links
100G QSFP28 LR4 is a high performance QSFP28 transceiver module for 100 Gigabit Ethernet data links over a single mode fibre pair. The maximum reach is 10km. The four transmitters are cooled 1310nm LAN-WDM lasers generating four optical 25Gbps output signals, which are multiplexed together at the optical output port. The four receivers are PIN photodiodes which detect (after optical de-multiplexing) 4x 25Gbps optical input signals. This transceiver module is compliant with the QSFP28 Multisource Agreement (MSA) and hot pluggable.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3ba.
Key Features
- Hot pluggable QSFP28 MSA form factor
- Compliant to IEEE 802.3ba 100GBASE-LR4
- Supports 103.1Gb/s aggregate bit rate
- Up to 10km reach for G.652 SMF
- Single +3.3V power supply
- Operating case temperature: 0 to 70℃
- Transmitter: cooled 4x25Gb/s LAN WDM DFB TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
- Receiver: 4x25Gb/s PIN ROSA
- 4x25G electrical interface (OIF CEI-28G-VSR)
- Maximum power consumption 4.0W

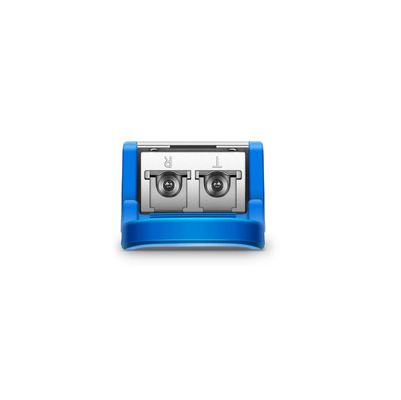

- Duplex LC receptacle
- RoHS-6 compliant
Application
- Data Center Interconnect
- 100G Ethernet
- Infiniband QDR and DDR interconnects
- Enterprise networking
Product Detail
It is uniquely serialized and data-traffic and application tested to ensure that they will integrate into your network seamlessly. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with OM3 | D | 0.002 | 2 | km | ||
| Power Consumption | 3.5 | W | ||||
| Center Wavelength | L0 | 1264.5 | 1271 | 1277.5 | nm | |
| L1 | 1284.5 | 1291 | 1297.5 | nm | ||
| L2 | 1304.5 | 1311 | 1317.5 | nm | ||
| L3 | 1324.5 | 1331 | 1337.5 | nm | ||
| Average Launch Power,each Lane | PAVG | -6.5 | 2.5 | dBm | ||
| OMA, each Lane | POMA | -4 | 2.5 | dBm | ||
| Average Receive Power,each Lane | -11.5 | 2.5 | dBm | |||
| Receive Power(OMA),each Lane | 2.5 | dBm | ||||
| Receiver Sensitivity(OMA) | SEN | -10 | dBm |
Outline Dimensions:
