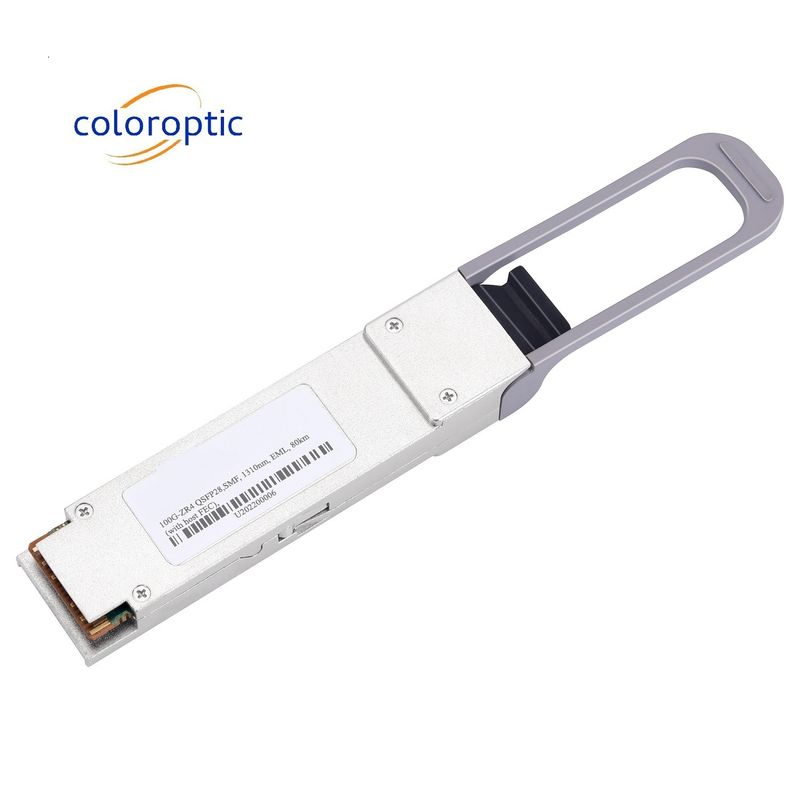

Nokia 3HE11239AA-80 QSFP28 Transceiver Module SMF 80km DOM Duplex LC
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-S81H13ZC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 8 DAYS |
|
Detail Information |
|||
| Fector Type: | QSFP28 | Connector Type: | LC |
|---|---|---|---|
| Wavelength: | 1310nm | Product Name: | QSFP28 Optical Module |
| Receiver Type: | PIN | Voltage Supply: | 3.3V |
| Application: | Ethernet/ OTU4 | Data Rate: | 100G |
| Highlight: | QSFP28 Transceiver Module SMF,QSFP28 Transceiver Module 80km |
||
Product Description
Nokia 3HE11239AA-80 Compatible 100GBase-ZR4 QSFP28 80km DOM Duplex LC SMF Optical Transceiver Modu
Product Description:
SFP Optical Module is a compact, hot-pluggable transceiver used for Ethernet/OTU4 applications. It is compliant with the QSFP28 form factor and the IEEE 802.3ba 40G/100G Ethernet standard. It provides a low power consumption of 3.3V/5V. It features a LC/MPO dual fiber connector to support bidirectional communication, and is suitable for applications such as VCSEL/FP/DFB/EML transmitter type. The SFP Optical Module helps to reduce the overall system cost and power consumption, and is ideal for short-range, high-speed interconnects.
Features:

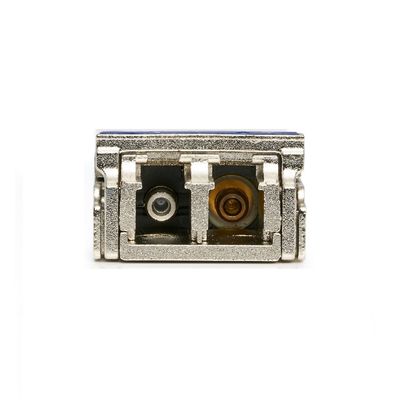

- Duplex LC receptacle optical interface
- Single +3.3V power supply
- Hot-pluggable QSFP28 MSA form factor
- 4x25G Electrical Serial Interface
- Compliant with 4x28G(CEI-28G-VSR)
- Built in digital diagnostic function
- Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
- Receiver: 4x25Gb/s SOA+PIN ROSA
- Operating case temperature range: 0℃ to 70℃
- Up to 80km reach for G.652 SMF with FEC
- Power dissipation < 5.5 W
Technical Parameters:
he 100G QSFP28 ZR4 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are retimed and passed on to four laser drivers, which control four electric-absorption modulated lasers (EML) with 1295, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector. On the receive side, four lanes of optical data streams passed on to a Semiconductor Optical Amplifier(SOA) and are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.
| Form Factor: | QSFP28 |
| TX Wavelength: | 1295/1300/1304/1309nm |
| Reach: | 80km |
| Cable Type | SMF |
| Rate Category: | 100GBase |
| Interface Type: | ZR4 |
| DDM: | Yes |
| Connector Type: | Dual LC |
| Optical Power Budget: | 30dB |
| TX Power Min/Max | 2 to 6.0 dBm |
| RX Power Min/Max | -28 dBm |
Applications:
100G BASE-ZR4 Ethernet Links
Infiniband QDR and DDR interconnects
100G Datacom connections
Packing and Shipping:
SFP Optical Module should be packaged in a static-proof bag and put into a cardboard box. All the parts should be checked carefully before packing to ensure they are in good condition. The shipping carton should be properly sealed with appropriate tape.
To protect the SFP Optical Module from damage, it should be shipped via a reputable carrier and tracked until it reaches its destination. The package should be labeled clearly with the address, contact information and other relevant information.
FAQ:
- Q: Where is the Color Optic SFP Optical Module manufactured?
- A: The Color Optic SFP Optical Module is manufactured in China.
