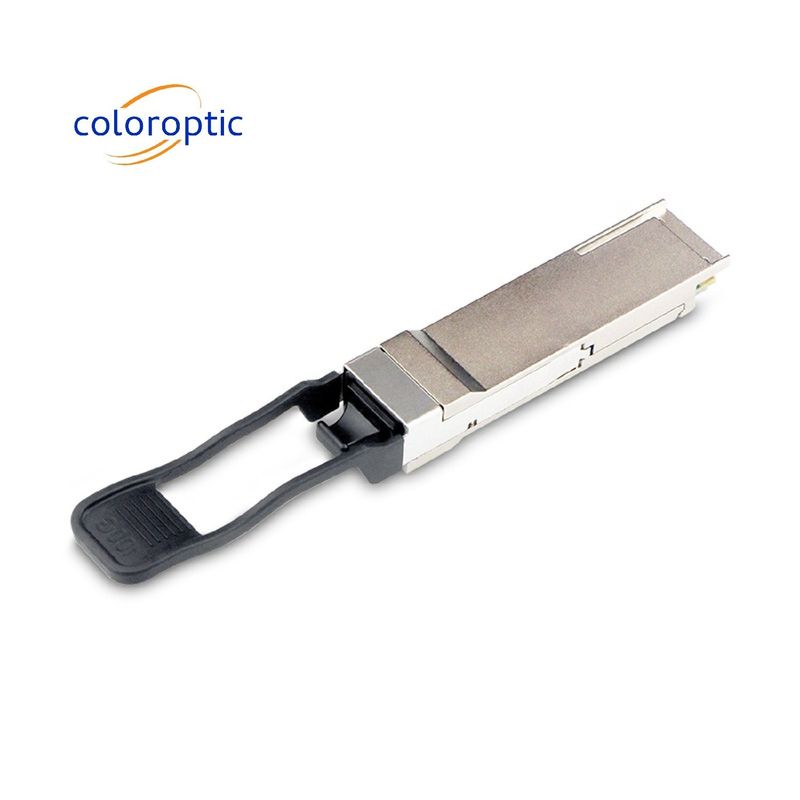

100Gb/S QSFP28 Optical Transceiver Single Lambda 100G Ethernet Optical Transceiver
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-Q81H13DC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 100G | Wavelength: | 1310nm |
|---|---|---|---|
| Distance: | 500m | Connector: | Duplex LC |
| Form Factor: | QSFP28 | Temperature: | 0~70°C |
| DDM: | Yes | Protocals: | MSA |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Power Dissipation: | <3.5W | Application: | 100GBASE Ethernet Links |
| Highlight: | 100Gb/s QSFP28 Optical Transceiver,Single Lambda QSFP28 Optical Transceiver,100G Ethernet Optical Transceiver |
||
Product Description
This is a high performance QSFP28 transceiver module for 100 Gigabit Ethernet data links over a single mode fibre pair. The maximum reach is 500m. An internal DSP-based gearbox converts the 4 electrical input channels (each 25Gbbps NRZ) into one 50GBd PAM4 signal. The transmitter is a CWDM laser generating the optical 50GBd output signal.
The receiver is a PIN photodiode which detect the 50GBd PAM4 optical input signal. This 50GBd data stream is converted into four 25Gbps electrical output signals by the DSP.
This transceiver module is compliant with the QSFP28 Multisource Agreement (MSA) and hot pluggable.
Key Features
- QSFP28 MSA compliant
- Supports 53.125Gbaud
- IEEE 802.3cd 100GBASE-DR Specification compliant
- Up to 500m transmission on single mode fiber (SMF) with FEC
- Operating case temperature: 0 to 70℃
- 4x25G electrical interface (OIF CEI-28GVSR)
- Maximum power consumption 4.5W

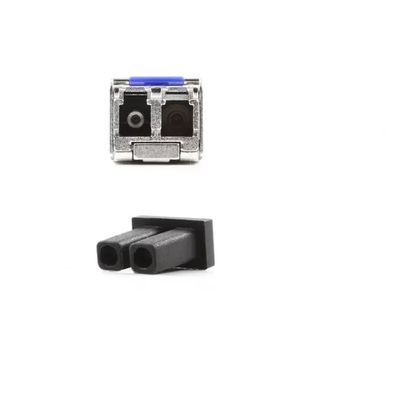

- LC duplex connector
- RoHS compliant
Application
- 100G Data Center Interconnect
- 100G Ethernet
- Enterprise networking
Product Detail
It is uniquely serialized and data-traffic and application tested to ensure that they will integrate into your network seamlessly. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with OM3 | D | 0.002 | 500 | m | ||
| Power Consumption | 4.5 | W | ||||
| Center Wavelength | λC | 1304.5 | 1317.4 | nm | ||
| Average Launch Power | PAVG | -2.9 | 4 | dBm | ||
| Outer Optical Modulation Amplitude (OMAouter) |
POMA | 0.8 | 4.2 | dBm | ||
| Average Receive Power | -5.9 | 4 | dBm | |||
| Receive Power(OMA) | 4.2 | dBm | ||||
| Receiver Sensitivity(OMA) | SEN | max(-3.9,SECQ-5.3) | dBm |
