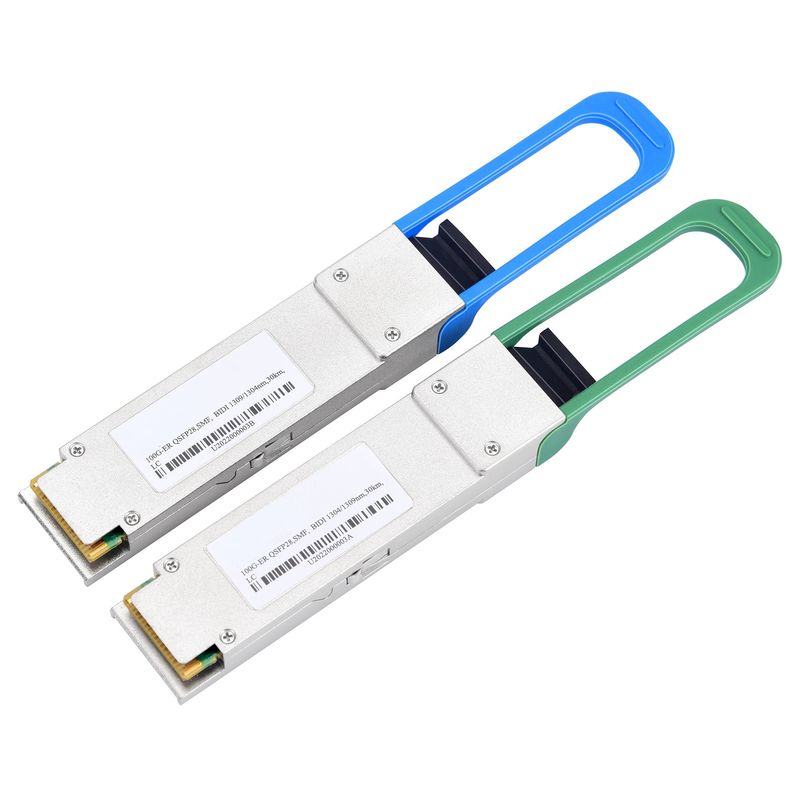

100G QSFP28 Optical Transceiver QSFP28 ER4 40km Duplex LC For Ethernet Links
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-Q81H13ELC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 100G | Wavelength: | LAN-WDM(4x) |
|---|---|---|---|
| Distance: | 40km With FEC | Connector: | Duplex LC |
| Form Factor: | QSFP28 | Temperature: | 0~70°C |
| DDM: | Yes | Protocals: | MSA 100G ER4 Lite |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Power Dissipation: | <3.5W | Application: | Telecom Ethernet Links |
| Highlight: | Ethernet Links QSFP28 Optical Transceiver,40km QSFP28 Optical Transceiver,QSFP28 ER4 40km |
||
Product Description
100G QSFP28 ER4 l40km Optical Transceiver for 100GBASE-ER4 Ethernet Links
100G QSFP28 ER4 is a high performance QSFP28 transceiver module for 100 Gigabit Ethernet data links over a single mode fibre pair. The maximum reach is 40km with FEC. The four transmitters are cooled 1310nm LAN-WDM lasers generating four optical 25Gbps output signals, which are multiplexed together at the optical output port. The four receivers are PIN photodiodes which detect (after optical de-multiplexing) 4x 25Gbps optical input signals. This transceiver module is compliant with the QSFP28 Multisource Agreement (MSA) and hot pluggable.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3ba.
Key Features
- Hot pluggable QSFP28 MSA form factor
- Compliant to IEEE802.3 ba-2010
- Supports 103.1Gb/s aggregate bit rate
- Up to 40km reach for G.652 SMF W/O FEC
- Single +3.3V power supply
- Operating case temperature: 0~70℃
- Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58,1309.14nm)
- Receiver: 4x25Gb/s PIN+SOA ROSA
- 4x25G electrical interface (OIF CEI-28G-VSR)
- Maximum power consumption 5W

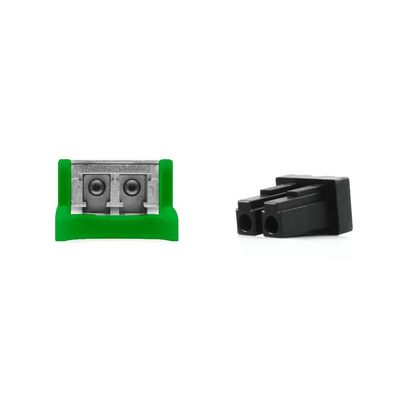

- Duplex LC receptacle
Application
- 100GBASE-ER4 Ethernet Links
- Infiniband QDR and DDR interconnects
- Client-side 100G Telecom connections
Product Detail
It is uniquely serialized and data-traffic and application tested to ensure that they will integrate into your network seamlessly. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with G.652(with FEC) | D | 40 | km | |||
| Power Consumption | 5 | W | ||||
| Center Wavelength | L0 | 1294.53 | 1295.56 | 1296.59 | nm | |
| L1 | 1299.02 | 1300.05 | 1301.09 | nm | ||
| L2 | 1303.54 | 1304.58 | 1305.63 | nm | ||
| L3 | 1308.09 | 1309.14 | 1310.19 | nm | ||
| Average Launch Power,each Lane | PAVG | -2.9 | 2.9 | dBm | ||
| OMA, each Lane | POMA | 0.1 | 4.5 | dBm | ||
| Average Receive Power,each Lane | -20.9 | -3.5 | dBm | |||
| Receive Power(OMA),each Lane | -3.5 | |||||
| Receiver Sensitivity(OMA),each Lane | SEN | -21.4 | dBm | BER<1e-12 |
Outline Dimensions:
