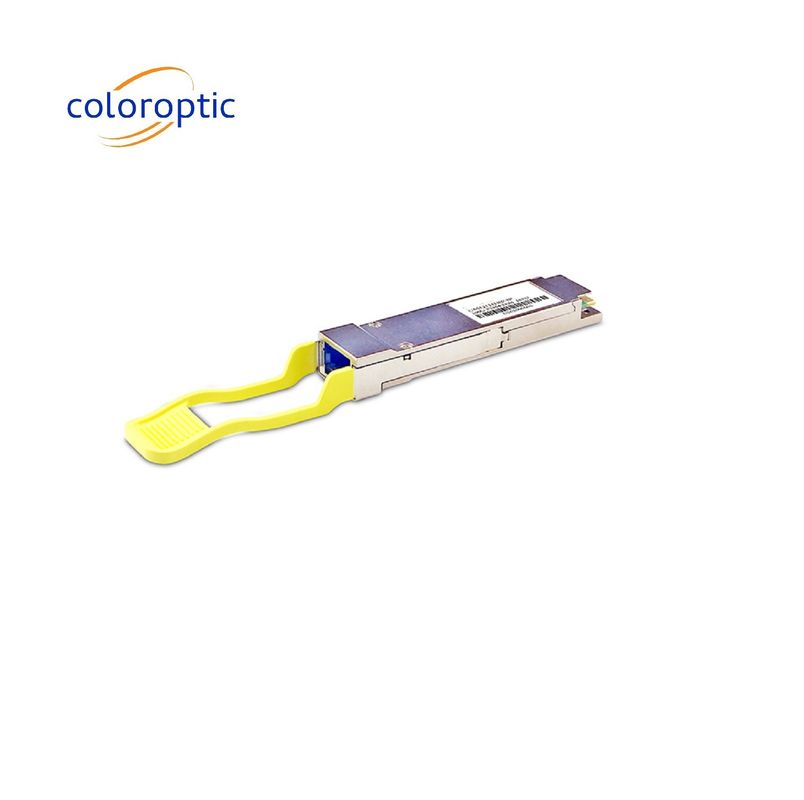

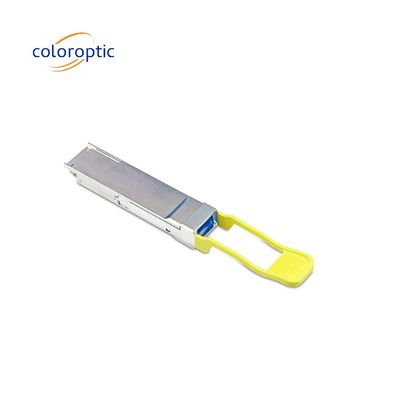

PSM4 QSFP28 Optical Transceiver 100GBase-LR SMF 1310nm 2KM MPO Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-Q81H13PSC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 100G | Wavelength: | LAN-WDM(4x) |
|---|---|---|---|
| Distance: | 2km | Connector: | Male MPO |
| Form Factor: | QSFP28 | DDM: | Yes |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Power Dissipation: | <3.5W | Application: | Telecom Ethernet Links |
| Highlight: | QSFP28 Optical Transceiver 100GBase-LR,QSFP28 Optical Transceiver SMF,PSM4 Transceiver SMF |
||
Product Description
QSFP28 PSM4 Transceiver 100GBase-LR SMF,1310nm 2KM,MPO Connector For Ethernet Link
Color Optic's OSFP28 PSM4 2km is a Four-Channel, Pluggable, Parallel, Fiber-Optic OSFP28 Transceiver for 100G Ethernet Applications. The QSFP28 full-duplex optical moduleoffers 4 independent transmit and receive channels, each capable of 26Gbps operatiorfor an aggregate data rate of 104Gbps 2km using single mode fiber. These modules aredesigned to operate over single mode fiber systems using DFB laser array. An opticafiber ribbon cable with an MPO/MTPTM connector can be plugged into the OSFP28module receptacle. OSFP28 PSM4 is one kind of parallel transceiver which providesincreased port density and total system cost savings.
Key Features
- Four-channel full-duplex transceiver modules
- Transmission data rate up to 26Gbit/s per channel
- Up to 2km transmission of single mode fiber
- Low power consumption <3.5W
- Operating case temperature 0℃ to 70℃
- 3.3V power supply voltage
- RoHS 6 compliant
- Hot Pluggable QSFP28 form factor
- Single MPO connector receptacle
- Built-in digital diagnostic function
Application
- 100GBASE Ethernet Links
- Proprietary High Speed Intercon
- Client-side 100G Telecom connections
Product Detail
It is uniquely serialized and data-traffic and application tested to ensure that they will integrate into your network seamlessly. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with G.652(with FEC) | D | 2 | km | |||
| Power Consumption | 3.5 | W | ||||
| Center Wavelength | L0 | 1294.53 | 1295.56 | 1296.59 | nm | |
| L1 | 1299.02 | 1300.05 | 1301.09 | nm | ||
| L2 | 1303.54 | 1304.58 | 1305.63 | nm | ||
| L3 | 1308.09 | 1309.14 | 1310.19 | nm | ||
| Average Launch Power,each Lane | PAVG | -6 | 2.0 | dBm | ||
| OMA, each Lane | POMA | -5 | 2.2 | dBm | ||
| Damage Threshold | 3 | dBm | ||||
| Overload, each Lane | 2.5 | |||||
| Receiver Sensitivity(OMA),each Lane | SEN | -11.35 | dBm | BER<1e-12 |
Outline Dimensions:
Innovations
The manufacturing environment is strictly compliant with most advanced technological standards, ensuring our products a long term reliability.
Quality & Assurance
Our Cutting-Edge test equipment verifies that each of our products meets our high-quality standards
Customization
Thanks to the specialists of our Engineering Department, we have full control over both the hardware and the software of all our transceivers. Need your personal labelling? No problem, just ask and we provide!
Multi-Compatibility
ColorOptic offers a true cost-effective solution for all major platforms including the original vendor firmware.
Technical Support
Any issues with your equipment? We are already dispatching an engineer to your premises to fix it. We are 7x24 hours online supports.
