Dual Fiber WDM 40CH C21-C60 Passive Dwdm Mux Demux With 1310nm Port
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-CMUX40CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Connector: | LC/UPC | Type: | Optical Networking |
|---|---|---|---|
| Fiber Channels: | 8 CH | Relative Humidity: | 5% To 95% |
| Operating Temperature: | -40°C To +85°C | Warranty: | 3 Years |
| Wavelength: | C Band | Weight: | 0.4kg |
| Highlight: | Dual Fiber WDM MUX DEMUX,40ch DWDM MUX DEMUX,Passive DWDM MUX DEMUX |
||
Product Description

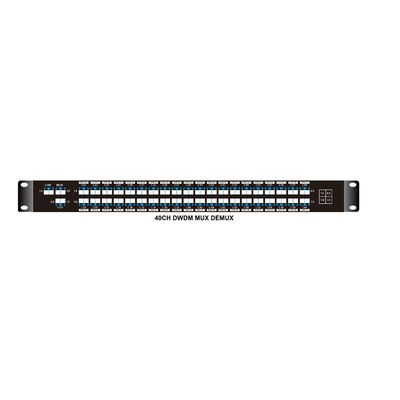

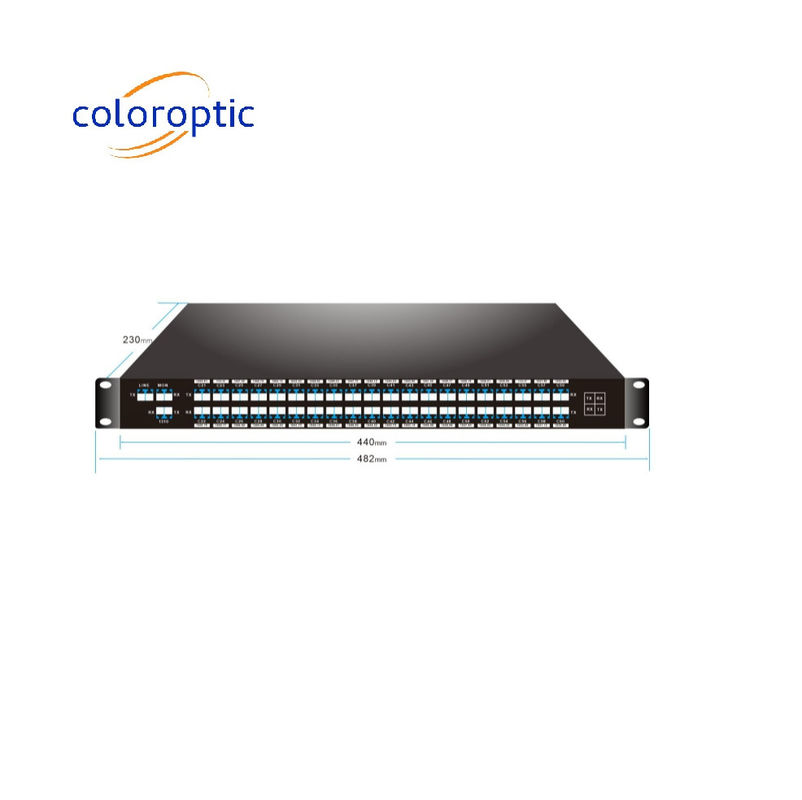

WDM Model Dual Fiber 40CH C21-C60 Passive Dwdm Mux Demux With 1310nm Monitor Port LC / UPC Connector
Product Description:
The 40ch DWDM MUX DEMUX is designed by Color Optic , wavelength from C21 to C60(1560.61nm~1529.55nnm), in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.
The 40ch DWDM with 1310nm port is totally passive DWDM device, and support low insertion loss( wavelength ports＜3.5dB; 1310nm port＜0.8dB). And it conjunct with The DWDM amplifiers and DCM device, the 40ch DWDM transfer system can support a long distance transmiss
Features:
- 1310nm port can support 1G LX/SX, 10G LR, 40G ER4/LR4, 100G LR/ER4/LR4/ZR4; it for Existing Legacy Traffic.
- Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.
Applications:
Color Optic's 40 Channels DWDM MUX DEMUX and with 1310nm Port, supports 40 channels difference business in two optical fiber for point-to-point transmission. It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
FAQ:
- Q: What is WDM Model?
- A: WDM Model is a Color Optic product, model number CO-CMUX8CH, made in China.
- Q: What are the features of WDM Model?
- A: WDM Model supports 8 independent channels for bidirectional transmission, and provides a total of 16 wavelength channels. It also supports up to 4km transmission per channel and has a high speed of 2.4Gbps.
- Q: What is the application of WDM Model?
- A: WDM Model is suitable for a variety of applications, such as fiber to the home (FTTH), fiber to the building (FTTB), long-distance fiber communication, cable TV (CATV) systems, etc.
- Q: What types of connectors does WDM Model support?
- A: WDM Model supports SC/PC connectors.
- Q: Does WDM Model support bidirectional transmission?
- A: Yes, WDM Model supports 8 independent channels for bidirectional transmission.
