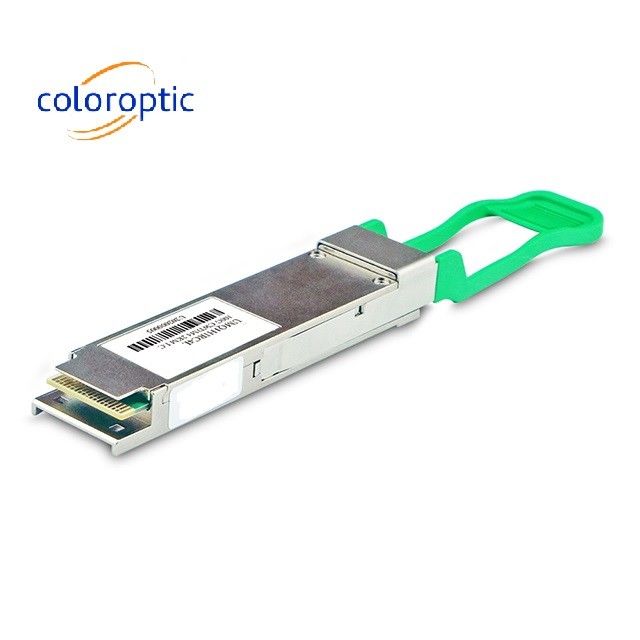

Arista QSFP-100G-SWDM4 QSFP28 150m DOM Duplex LC MMF Optical Transceiver Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-S81H85SWC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 5 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Distance: | 150m With OM5 | Transmitter Type: | M VCSEL |
|---|---|---|---|
| Data Rate: | 100G | Fiber Type: | MMF |
| Voltage Supply: | 3.3V | Wavelength: | 850nm |
| Temperature Range: | -40~85℃ | Product Name: | QSFP28 Optical Module |
| Highlight: | Arista QSFP-100G-SWDM4,150m DOM Transceiver,MMF DOM Transceiver |
||
Product Description
Arista QSFP-100G-SWDM4 Compatible 100GBase-SWDM4 QSFP28 150m DOM Duplex LC MMF Optical Transceiver Mod
Product Description:
The ColorOptic's 100G QSFP28 SWDM4 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. Four channels/lanes in the 850-940nm region @ 25.78Gbps to transport the Ethernet signal. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA..
Features:
- • Compliant with QSFP28 MSA
- • Compliant with SWDM MSA
- • Supports 103 Gbps aggregate bit rate
- • Up to 150m reach for OM5 MMF
- • Single +3.3V power supply
- • Transmitter: 4x25Gb/s 850mm VCSEL-based (850nm, 880nm, 910nm, 940nm)
- • Receiver: 4x25 Gb/s PIN ROSA
- • 4x25 Gb/s Compliant with IEEE802.3bm CAUI-4
- • Maximum power consumption 3.5W
- • RoHS-6 compliant (lead-free)
- • Duplex LC receptacle
- • I 2C interface with integrated Digital Diagnostic Monitoring
- • Operating Case Temperature
- Standard: 0°C to +70 °C o
- Extended -5°C to +85 °C
Technical Parameters:
| Form Factor: | QSFP28 |
| TX Wavelength: | 850, 880, 910, 940nm |
| Reach: | 150m |
| Cable Type | MMF |
| Rate Category: | 100GBase |
| Interface Type: | SWDM4 |
| DDM: | Yes |
| Connector Type: | Dual LC |
Applications:
100G Ethernet links
Packing and Shipping:
Packaging and Shipping SFP Optical Module:
- The SFP Optical Module will be packaged in an anti-static bag.
- The bag will be placed in a corrugated cardboard box.
- The box will be labeled with the SFP Optical Module model number.
- The box will be securely sealed with tape.
- The box will be shipped via a reputable courier service.
