800G SR8 OSFP Module 50m Parallel Multi mode Transceiver With MPO-12/APC
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-OP8H85SC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 800G | Wavelength: | 850nm |
|---|---|---|---|
| Distance: | 50m | Connector: | MPO-12/APC |
| Form Factor: | OSFP | Temperature: | 0~70°C |
| DDM: | Yes | Warranty: | 3 Years |
| Label: | Can Be Customized | Protocols:: | OSFP MSA |
| Modulation Format: | PAM4 | Application: | Data Center Interconnect |
| Highlight: | SR8 OSFP Module,OSFP Module 50m,Parallel Multi Mode Transceiver |
||
Product Description

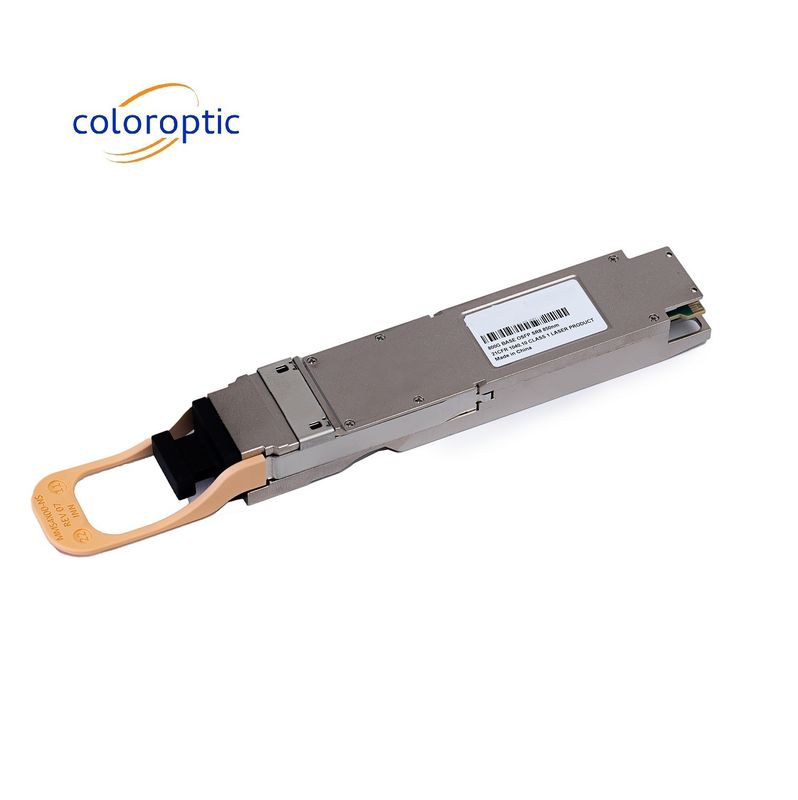

OSFP Module 800G SR8 50m Multimode Parallel Transceiver With MPO-12/APC
This is an InfiniBand and Ethernet 800Gb/s 2x400Gb/s Twin port OSFP, SR8 multimode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb/s each. The parallel multimode, short reach 8-channel (SR8) uses 100G-PAM4 modulation and has a maximum fiber reach of 50-meters using 8 multimode fibers. The 50-meter length assumes two optical patch panels in the link.
The transceiver firmware supports both InfiniBand and Ethernet and is automatically enabled based on the switch protocol. The switches require finned-top OSFP shells for extra transceiver cooling. The main application for C-OP8H85SC is linking two switches together with up to 50-meter transceivers (marked blue).A flat-top version offered for liquid-cooled and switches systems links.
Key Features
- InfiniBand (IB) and Ethernet (ETH) support
- 800G SR8 multimode transceiver
- 8-channels of 100G-PAM4 electrical and optical modulation
- Supports two straight 400Gb/s or two 1:2 splitter fiber cables for 200Gb/s
- Finned-top OSFP for air-cooled switches
- Flat-top OSFP for DGX- H100 or liquid-cooled
- 850nm VCSEL
- Maximum reach: 30m using OM3 fiber 50m using OM4 fiber

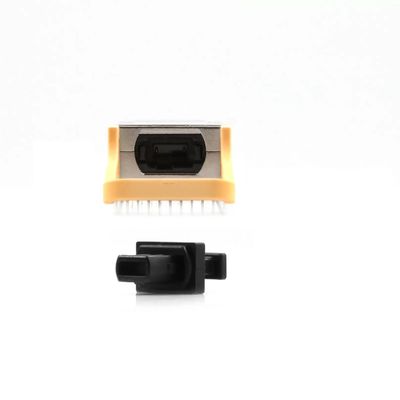

- Two MPO-12/APC optical connector
- 17 Watts max power
- 1.5 Watt low-power sleep mode
- Single 3.3V power supply
- Class 1 laser safety
- Hot pluggable, RoHS compliant
- OSFPmsa.org compliant
- CMIS 4.0 compliant
- Case temperature range 0°C to +70°C
Application
- 800G Ethernet
- Infiniband interconnects
- Datacenter Interconnect
- Enterprise networking
