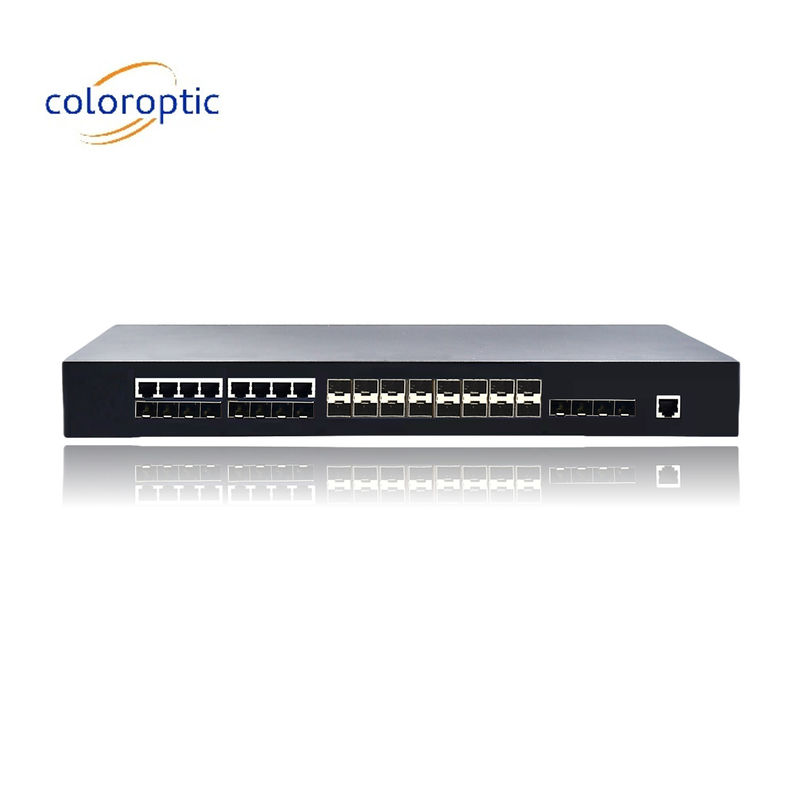

2 Layer Poe Switches With 16 SFP 8 COMBO 4 10GE Ports Support Wire Speed Switching
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-16GF8GC4X-L2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 50000 pieces/month |
|
Detail Information |
|||
| Network Media: | 10BASE-T/ 100BASE-T/1000BASE-TX | Layer: | 2 |
|---|---|---|---|
| Security: | Yes | Temperature Range: | -40°C To +70°C |
| Power Supply: | AC100-240V 50/60Hz | Network Protocols: | IEEE802.3 |
| Product Name: | Poe Switches | Dimensions: | 440mm*360mm*44mm (W*D*H) |
| Highlight: | 2 Layer Poe Switches,16 SFP Poe Switches |
||
Product Description
Poe Switches With 16*SFP +8*COMBO + 4*10GE Ports Support Wire-Speed Switching SNMP V1/V2/V3
Product Description:
CO-16GF8GC4X-L2+ including 16GE SFP,8GE COMBO,4*10GE ports and 1 console port Layer 2+ managed fiber Ethernet switch. Perfect security control strategy and CPU protect policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection; The device supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions. Advanced security functions and advanced quality of service (QoS), can be used as core layer, distribution layer or access layer switch with high density port, switch stacking and easy management, are ideal for various commercial network applications.
Features:
- 16GE SFP +8GE COMBO + 4*10GE Ports
- Comply with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z standards
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Support port auto flip (Auto MDI/MDIX)
- Exchange mechanism using store-and-forward
- All ports support wire-speed switching
- Automatically supplied to adaptive devices
- Panel indicator monitoring status and help failure analysis
- QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2；
- Support STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, support remote loopback monitoring and control(802.3ah OAM); Support IPV4/IPV6
- Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN;
- Support IP address + MAC address + VLAN+Port binding, DHCP Snooping, support IP source and DAI protection;
Technical Parameters:
| Items | CO-16GF8GC4X-L2+ |
| Connector Type | 16GE SFP + 8GE COMBO + 4*10GE Ports,1*console |
| Network Protocols | IEEE802.3;IEEE802.3u;IEEE802.3z;IEEE802.3ab; IEEE802.3ae; IEEE802.3x |
| Network Media |
10BASE-T: Cat 3,4,5 UTP(≤100 meter) 100BASE-T: Cat 5 UTP(≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
| Performance Specification | Bandwidth:128Gbps |
| Forwarding Capacity:95.23Mpps | |
| MAC Address:16K | |
| Flash:32M | |
| DRAM:256M | |
| Power Supply | Power input: AC100-240V 50/60Hz |
| Working Environment |
Operating Temperature: 0℃ ~ 45℃; Storage Temperature: -25℃ ~ 70℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 90%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
| MTBF | 100,000 hours |
| Outline dimensions | 440mm*208mm*44mm (W*D*H) |
Applications:
|
|
|
|
| L2 features | MAC |
MAC Black Hole Port MAC Limit |
| VLAN |
4K VLAN entries Port-based/MAC-based/IP subnet-based VLAN PVLAN to realize port isolation and save public-vlan resources GVRP |
|
| Spanning tree protocol |
IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP) |
|
| Port |
Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring and traffic mirroring |
|
| Security features | User’s security |
Anti-ARP-spoofing Anti-ARP-flooding IP Source Guard create IP+VLAN+MAC+Port binding Port Isolation MAC address binds to port and port MAC address filtration IEEE 802.1x and AAA/Radius authentication |
| Device security |
Anti-DOS attack(such as ARP,Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users |
|
| Network security |
User-based MAC and ARP traffic examination automatic ARP protection based on MAC address and ARP packet suppression or automatic user block of ARP traffic detection Dynamic ARP table-based binding IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet Port-based broadcast/multicast suppression and auto-shutdown risk port URPF to prevent IP address counterfeit and attack DHCP Option82 and PPPoE+ upload user’s physical location DHCP snooping / IP source Guard / 802.1X / rich security features Plaintext authentication of OSPF,RIPv2 and BGPv4 packets and MD5 cryptograph authentication |
|
| Service features | ACL |
Standard and extended ACL Time Range ACL Packet filter providing filtering based on source/destination MAC address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range, or invalid frame. System supports concurrent identification at most 50 service traffic Packet filtration of L2～L7 even deep to 80 bytes of IP packet head |
| QoS |
Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark transmission of high-priority packets with various traffic classification and QoS flow control functions CAR(Committed Access Rate),Traffic Shaping and flow statistics Packet mirror and redirection of interface and self-defined flow Super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR. Congestion avoid mechanism,including Tail-Drop and WRED |
|
| Multicast |
IGMPv1/v2/v3 IGMPv1/v2/v3 Snooping IGMP Filter MVR and cross VLAN multicast copy IGMP Fast leave IGMP Proxy PIM-SM/PIM-DM/PIM-SSM MLDv2/MLDv2 Snooping |
|
| Route | Functions | Static route |
| Reliability | Loop protection |
ERRP Loopback-detection |
| Link protection |
FlexLink RSTP/MSTP LACP BFD |
|
| Maintenance | Network maintenance |
Telnet-based statistics RFC3176 sFlow LLDP 802.3ah Ethernet OAM RFC 3164 BSD syslog Protocol Ping and Traceroute |
| Device management |
Command-line interface(CLI), Console, Telnet and WEB configuration System configuration with SNMPv1/v2/v3 RMON (Remote Monitoring)1/2/3/9 groups of MIB NTP(Network Time Protocol) WEB-based network management Ping and Traceroute |
|
Customization:
- Brand Name: As customer in needs;
- Model Number: As customer in needs;
- Place of Origin: China
- Security: Yes, providing a secure CCTV network
- Network Media: 10BASE-T/100BASE-T/1000BASE-TX
- Layer: As customer in needs;
- Temperature Range: -40°C To +70°C
- Power over Ethernet: Yes, As customer in needs;
Support and Services:
At Poe Switches, we offer extensive technical support and service for our products. Our technical support team is on hand to answer any questions you may have and provide solutions for any issues you encounter. We provide detailed documentation for all our products, as well as video tutorials and online support forums. We also offer free firmware updates to ensure that your product is always up to date. If you ever need help with installation or setup, our team of certified technicians is available to help. We also offer a one-year warranty on all of our products, so you can rest assured that your purchase is protected.
