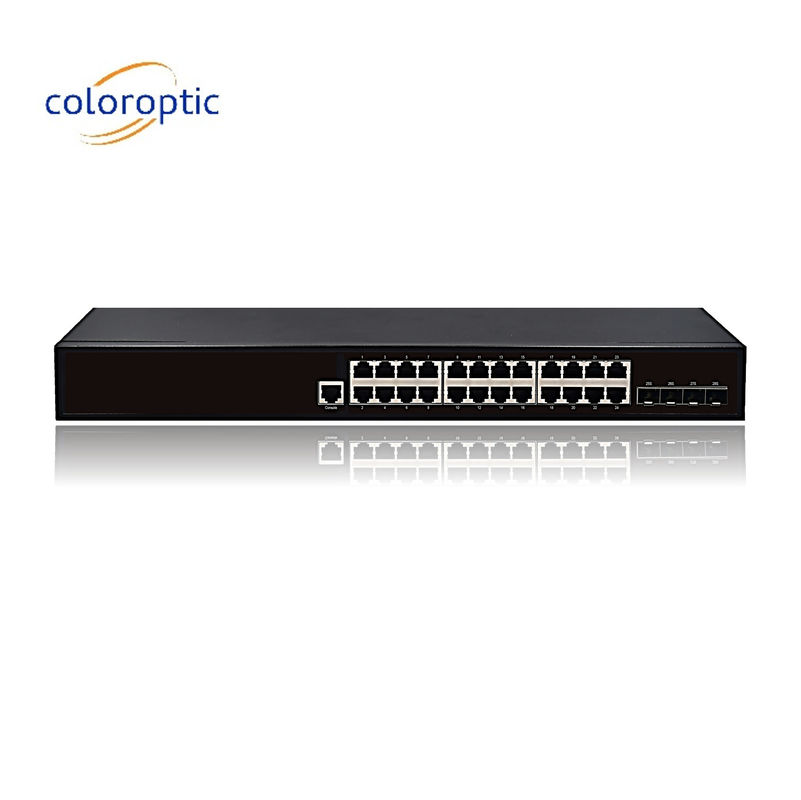

Layer 2 Intelligent POE Ethernet Switch With 24 Ports 10/100/1000M 4GE SFP Ports
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-24GP4F-L2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Security: | 802.1x, SSH, SSL | Dimensions: | 440mm*220mm*44mm |
|---|---|---|---|
| Layer: | 2 | Network Protocols: | IEEE |
| Redundancy: | Yes | Warranty: | 3 Years |
| Management: | Web-based GUI | Connector Type: | 48*10/100/1000M+6*10GE Ports |
| Highlight: | Intelligent POE Ethernet Switch,4GE SFP POE Ethernet Switch,24 Ports Layer 2 Ethernet Switch |
||
Product Description
Layer 2 Intelligent POE Ethernet Switch with 24*10/100/1000M(POE)+ 4GE SFP Ports
Product Description:
CO-24GP4F-L2 Managed GE Intelligent Ethernet Switch, black iron shell design, built-in DC 12V Power supply, light and simple, with LED indicator on the panel, can dynamically display the connection and operation of equipment, provide simple fault detection methods, and facilitate maintenance and management; this series of switches provide advanced network management functions: redundant ring network, VLAN, cluster, QoS, speed control, port image, fault alarm and firmware online upgrade.
The adaptive port can automatically adapt to the 10/100/1000M(POE) networks, and can automatically adapt to the full duplex or half duplex mode; It adopts High-Quality and High-Speed Network IC and the most stable POE Chip. The POE port meets the IEEE802.3af or IEEE802.3at standard.This model can provide seamless connection for 10/100/1000M Ethernet, and the POE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The Non-POE devices are forcibly powered and only transmitdata.
Features:
-
Items CO-24GP4F-L2 Connector Type 24*10/100/1000M(POE) + 4GESFP Ports, 1*console Network Protocols IEEE802.3;IEEE802.3u;IEEE802.3z;IEEE802.3ab; IEEE802.3ae; IEEE802.3x Network Media 10BASE-T: Cat 3,4,5 UTP(≤100 meter)
100BASE-T: Cat 5 UTP(≤100 meter)
1000BASE-TX: Cat5 or more UTP (≤100 meter)
Performance Specification Bandwidth: 56Gbps Packet Forwarding Rate: 41.66Mbps MAC Address: 8K Flash:16MByte DRAM: 128MByte Power Supply Power input: AC100-240V 50/60Hz, DC12V 3A
Maximum(PoE on): 280/390W(option)
POE power IEEE802.3af(15.4W) IEEE802.3at(30W) Fans 2*Fans Working Environment Operating Temperature: -15℃ ~ 55℃;
Storage Temperature: -40℃ ~ 85℃;
Operating Humidity: Max 90%, non-condensing
Storage Humidity: Max 95%, non-condensing
Working Height: Max to 10,000 feet (3,000 meters)
Storage Height: Max to 10,000 feet (3,000 meters)
MTBF 100,000 hours Outline dimensions 440mm*220mm*44mm (W*D*H)
Technical Parameters:
|
|
|
|
| L2 features | MAC |
MAC Black Hole Port MAC Limit |
| VLAN |
4K VLAN entries Port-based/MAC-based/IP subnet-based VLAN PVLAN to realize port isolation and save public-vlan resources GVRP |
|
| Spanning tree protocol |
IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP) |
|
| Port |
Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring and traffic mirroring |
|
| Security features | User’s security |
Anti-ARP-spoofing Anti-ARP-flooding IP Source Guard create IP+VLAN+MAC+Port binding Port Isolation MAC address binds to port and port MAC address filtration IEEE 802.1x and AAA/Radius authentication |
| Device security |
Anti-DOS attack(such as ARP,ICMP attack), ARP detection, worm and Msblaster worm attack SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users |
|
| Network security |
User-based MAC and ARP traffic examination automatic ARP protection based on MAC address and ARP packet suppression or automatic user block of ARP traffic detection Dynamic ARP table-based binding IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet DHCP Option82 and PPPoE+ upload user’s physical location DHCP snooping / IP source Guard / 802.1X / rich security features |
|
| Service features | ACL |
Standard and extended ACL Time Range ACL Packet filter providing filtering based on source/destination MAC address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range, or invalid frame. System supports concurrent identification at most 50 service traffic Packet filtration of L2～L7 even deep to 80 bytes of IP packet head |
| QoS |
Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark transmission of high-priority packets with various traffic classification and QoS flow control functions CAR(Committed Access Rate),Traffic Shaping and flow statistics Packet mirror and redirection of interface and self-defined flow Super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR. Congestion avoid mechanism,including Tail-Drop and WRED |
|
| Multicast |
IGMPv1/v2/v3 IGMPv1/v2/v3 Snooping IGMP Filter MVR and cross VLAN multicast copy IGMP Fast leave IGMP Proxy MLDv2/MLDv2 Snooping |
|
| Reliability | Loop protection | Loopback-detection |
| Link protection |
RSTP/MSTP LACP |
|
| Maintenance | Network maintenance |
Telnet-based statistics LLDP 802.3ah Ethernet OAM RFC 3164 BSD syslog Protocol Ping and Traceroute |
| Device management |
Command-line interface(CLI), Console, Telnet and WEB configuration System configuration with SNMPv1/v2/v3 RMON (Remote Monitoring)1/2/3/9 groups of MIB NTP(Network Time Protocol) WEB-based network management Ping and Traceroute |
|
Applications:
- Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
- Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
Customization:
The Color Optic CO-24GP4F-L2 POE Network Switch is designed to provide reliable and secure connectivity for optical broadband networks. With 48*10/100/1000M+6*10GE ports, it provides a high-performance solution for home and enterprise networks.
The CO-24GP4F-L2 is designed for maximum reliability and maintenance. It supports various network media such as 10BASE-T/100BASE-T/1000BASE-TX, as well as advanced security measures such as 802.1x, SSH, and SSL. It also supports Layer 3 QoS for optimized performance.
The Color Optic CO-24GP4F-L2 is made in China and offers an excellent solution for your optical broadband network needs.
Packing and Shipping:
Core Network Switches are shipped in suitable packaging to ensure safe transportation. The packaging is done in accordance with the following guidelines:
- Switches are placed in anti-static bags or bubble wrap for additional protection.
- The switches are then placed in custom-made boxes with protective foam lining.
- The boxes are sealed with packing tape.
- The switches are shipped using reliable and efficient courier services.
