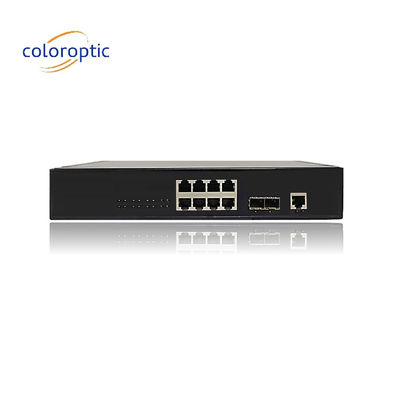

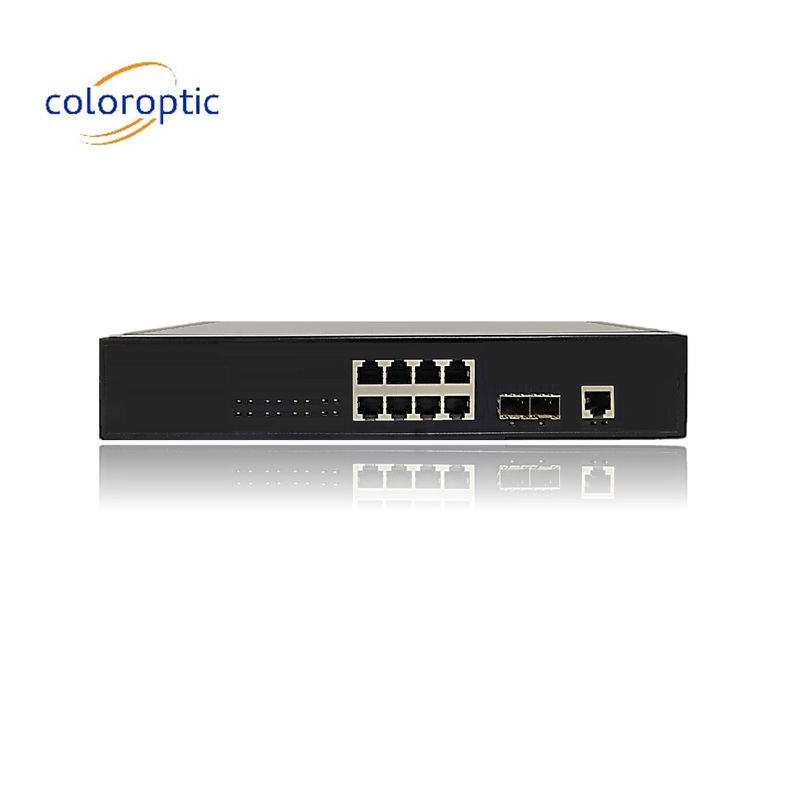

Efficient Poe Switches 8 Port 10/100/1000M 2*GE SFP Ethernet Uplink 140W
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-8GP2F-L2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000 pieces/month |
|
Detail Information |
|||
| Network Media: | 10BASE-T/ 100BASE-T/1000BASE-TX | Security: | Yes |
|---|---|---|---|
| Power Over Ethernet: | Yes | Dimensions: | 280mm*180mm*44mm (W*D*H) |
| QoS: | Yes | Temperature Range: | -40°C To +70°C |
| Product Name: | Poe Switches | Layer: | 2/3/4 |
| Highlight: | Efficient Poe Switches,SFP Poe Switches,Poe Switch 8 Port 140W |
||
Product Description
Efficient Poe Switches With 8*10/100/1000M(POE) Ports + 2*GE SFP Vlan Mode Extend 250 Meters Mode
Product Description:
CO-8GP2F-L2 Managed GE Intelligent Ethernet Switch, black iron shell design, built-in DC 12V Power supply, light and simple, with LED indicator on the panel, can dynamically display the connection and operation of equipment, provide simple fault detection methods, and facilitate maintenance and management; this series of switches provide advanced network management functions: redundant ring network, VLAN, cluster, QoS, speed control, port image, fault alarm and firmware online upgrade
Features:
- 8*10/100/1000M(POE) Ports + 2*GE SFP Ethernet Uplink Ports
- Comply with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE802.3af/at standards
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Support port auto flip (Auto MDI/MDIX)
- Exchange mechanism using store-and-forward
- All ports support wire-speed switching
- Automatically supplied to adaptive devices
- Panel indicator monitoring status and help failure analysis
- Support Vlan Mode Extend 250 meters Mode
Technical Parameters:
| Items | CO-8GP2F-L2 | ||||||
| Connector Type | 8 Ports 10/100/1000M(PoE) + 2*GE SFP Ethernet Uplink | ||||||
| Network Protocols |
IEEE802.3;IEEE802.3u; IEEE802.3x;IEEE802.3ab |
||||||
| PoE Parameters | PoE Standard: IEEE802.3af /IEEE802.3at | ||||||
|
Max each port: 15.4W ( IEEE 802.3af ); Max each port:30W ( IEEE 802.3at ) |
|||||||
| Network Media |
10BASE-T: Cat 3,4,5 UTP(≤100 meter) 100BASE-T: Cat 5 UTP(≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
||||||
| Performance Specification | Bandwidth: 20Gbps | ||||||
| MAC Address: 8K | |||||||
| Packet Buffer Memory: 4M | |||||||
| Packet Forwarding Rate: 14.88Mpps | |||||||
| Forwarding Mode: Store-And-Forward | |||||||
| Power Supply |
Power input: AC100-240V 50/60Hz, Output: 52V2.3A, Power Budget: 140W |
||||||
| Working Environment |
Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 85℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
||||||
| Physical Parameter |
Product Dimensions: 280*180*44mm Package Dimensions: 425*262*44.5mm N.W: 2.0KG G.W: 2.8KG |
||||||
| Led indicator |
|
||||||
| MTBF | 100,000 hours |
Applications:
|
|
|
|
| L2 features | MAC |
MAC Black Hole Port MAC Limit |
| VLAN |
4K VLAN entries Port-based/MAC-based/IP subnet-based VLAN PVLAN to realize port isolation and save public-vlan resources GVRP |
|
| Spanning tree protocol |
IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP) |
|
| Port |
Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring and traffic mirroring |
|
| Security features | User’s security |
Anti-ARP-spoofing Anti-ARP-flooding IP Source Guard create IP+VLAN+MAC+Port binding Port Isolation MAC address binds to port and port MAC address filtration IEEE 802.1x and AAA/Radius authentication |
| Device security |
Anti-DOS attack(such as ARP,ICMP attack), ARP detection, worm and Msblaster worm attack SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users |
|
| Network security |
User-based MAC and ARP traffic examination automatic ARP protection based on MAC address and ARP packet suppression or automatic user block of ARP traffic detection Dynamic ARP table-based binding IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet DHCP Option82 and PPPoE+ upload user’s physical location DHCP snooping / IP source Guard / 802.1X / rich security features |
|
| Service features | ACL |
Standard and extended ACL Time Range ACL Packet filter providing filtering based on source/destination MAC address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range, or invalid frame. System supports concurrent identification at most 50 service traffic Packet filtration of L2～L7 even deep to 80 bytes of IP packet head |
| QoS |
Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark transmission of high-priority packets with various traffic classification and QoS flow control functions CAR(Committed Access Rate),Traffic Shaping and flow statistics Packet mirror and redirection of interface and self-defined flow Super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR. Congestion avoid mechanism,including Tail-Drop and WRED |
|
| Multicast |
IGMPv1/v2/v3 IGMPv1/v2/v3 Snooping IGMP Filter MVR and cross VLAN multicast copy IGMP Fast leave IGMP Proxy MLDv2/MLDv2 Snooping |
|
| Reliability | Loop protection | Loopback-detection |
| Link protection |
RSTP/MSTP LACP |
|
| Maintenance | Network maintenance |
Telnet-based statistics LLDP 802.3ah Ethernet OAM RFC 3164 BSD syslog Protocol Ping and Traceroute |
| Device management |
Command-line interface(CLI), Console, Telnet and WEB configuration System configuration with SNMPv1/v2/v3 RMON (Remote Monitoring)1/2/3/9 groups of MIB NTP(Network Time Protocol) WEB-based network management Ping and Traceroute |
|
Customization:
Color Optic CO-S885LC Poe Switches offer fast delivery, are in stock, and come with powerful features such as web/CLI/SNMP management, Quality of Service, 10BASE-T/ 100BASE-T/1000BASE-TX network media, and IEEE 802.3at/af PoE standard.
