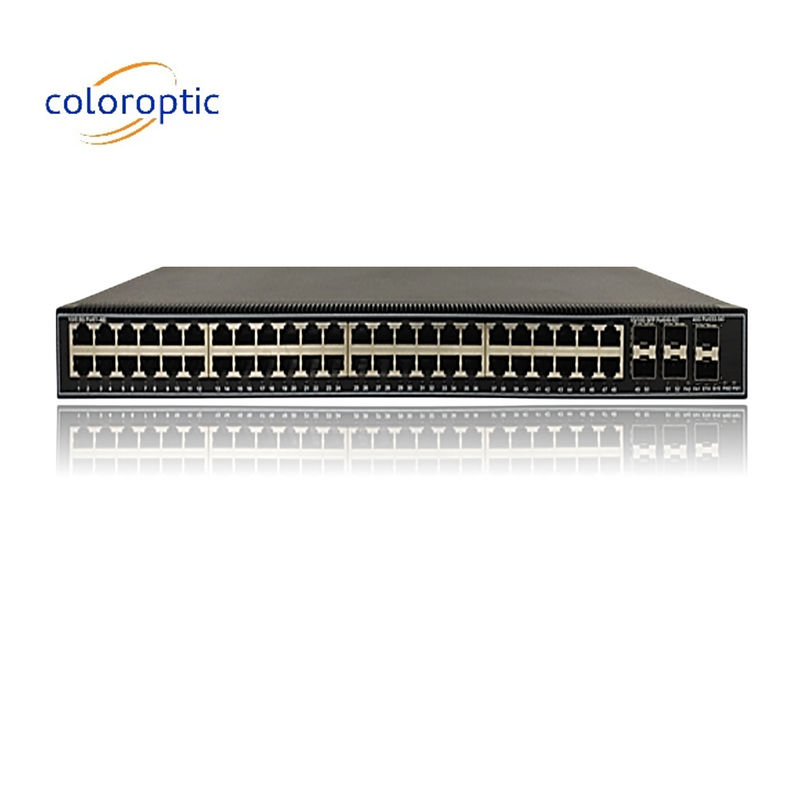

48 Port Gigabit Poe Switches QoS 10/100/1000M POE , 6*10GE SFP+ Ports
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-48GP6X-L2+ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | T/T, L/C, Western Union |
|
Detail Information |
|||
| Management: | Web-based GUI | Routing Protocols: | OSPF, BGP, RIP, EIGRP |
|---|---|---|---|
| Warranty: | 3 Years | Network Protocols: | IEEE |
| Dimensions: | 440mm*220mm*44mm | Operating Temperature: | -40 To 70°C |
| Connector Type: | 48*10/100/1000M+6*10GE Ports | Redundancy: | Yes |
| Highlight: | Gigabit Poe Switches,QoS Poe Switches,SFP+ 48 Port Poe Switch |
||
Product Description
Poe Switches:48-Port, Gigabit, Power Over Ethernet, QoS 48*10/100/1000M + 6*10GE SFP+ Ports
Product Description:
CO-48GP6X-L2+ Managed 10GE Intelligent Ethernet Switch, black iron shell design, built-in DC 12V Power supply, light and simple, with LED indicator on the panel, can dynamically display the connection and operation of equipment, provide simple fault detection methods, and facilitate maintenance and management; this series of switches provide advanced network management functions: redundant ring network, VLAN, cluster, QoS, speed control, port image, fault alarm and firmware online upgrade.
The adaptive port can automatically adapt to the 10/100/1000M(POE) networks, and can automatically adapt to the full duplex or half duplex mode; It adopts High-Quality and High-Speed Network IC and the most stable POE Chip. The POE port meets the IEEE802.3af or IEEE802.3at standard. This model can provide seamless connection for 10/100/1000M Ethernet, and the POE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The Non-POE devices are forcibly powered and only transmit data.
.
Features:
- 48*10/100/1000M POE+6*10GE SFP+ Ports
- Comply with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z standards
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Compatible witth IEEE 802.3at (30w) and IEEE802.3af (15.4w)
- Support port auto flip (Auto MDI/MDIX)
- Exchange mechanism using store-and-forward
- All ports support wire-speed switching
- Automatically supplied to adaptive devices
- Panel indicator monitoring status and help failure analysis
- Support POE Power Management;
- Support POE Watchdog
Technical Parameters:
| Items | CO-48GP6X-L2+ |
| Connector Type | 48*10/100/1000M POE+6*10GE Ports, 1*console |
| Network Protocols | IEEE802.3;IEEE802.3u;IEEE802.3z;IEEE802.3ab; IEEE802.3ae; IEEE802.3x |
| Network Media |
10BASE-T: Cat 3,4,5 UTP(≤100 meter) 100BASE-T: Cat 5 UTP(≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
| Performance Specification | Bandwidth: 216Gbps |
| Packet Forwarding Rate: 162Mbps | |
| MAC Address: 16K | |
| Flash: 16MByte | |
| DRAM: 512MByte | |
| Power Supply |
Power input: AC100-240V 50/60Hz Maximum(PoE on): 560/780W (option) |
| POE power | IEEE802.3af(15.4W) |
| IEEE802.3at(30W) | |
| Fans | 4*Fans |
| Working Environment |
Operating Temperature: -15℃ ~ 55℃; Storage Temperature: -40℃ ~ 75℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 90%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
| MTBF | 100,000 hours |
| Outline dimensions | 440mm*280mm*44mm (W*D*H) |
Applications:
Color Optic CO-48GP6X-L2+ Core Network Switch is a reliable and secure switch that can provide 48*10/100/1000M+6*10GE Ports, VLAN Support and QoS. It is ideal for organizations that need to provide high-speed and secure networking services. With its 48 ports and advanced Power Supply, it ensures superior service features and maintenance. It is designed to meet the most demanding network reliability requirements and provide the highest level of security for data transmission. Its advanced features ensure secure communications and reliable data transmission. It provides high-end performance and superior reliability, making it the perfect choice for any organization that requires a reliable network switch.
Customization:
- Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
- Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
- Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
- Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
Packing and Shipping:
Packaging and Shipping of Core Network Switch:
- The product will be packed in a sealed box containing the switch and all its accessories.
- The box containing the switch will be cushioned with foam to provide extra protection during shipping.
- The box will then be placed in an outer cardboard box with additional cushioning to prevent damage during shipping.
- The box will be labeled with the contents and address of the recipient.
- The package will be shipped with a trusted courier.
