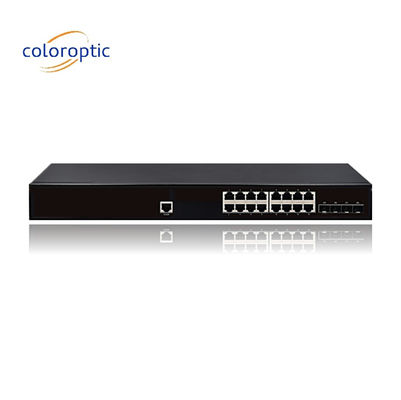

IEEE802.3 Layer 2 POE Switch 16 4GE SFP Ports 10/100/1000M 1 Console Auto MDI/MDIX
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-16GP4F-L2 |
|
Detail Information |
|||
| Connector Type: | 16*10/100/1000M(POE) + 4GE SFP Ports | Power Supply: | AC100-240V 50/60Hz |
|---|---|---|---|
| Dimensions: | 440mm*220mm*44mm (W*D*H) | Network Protocols: | IEEE802.3 |
| PoE Standard: | IEEE 802.3at/af | Layer: | 2 |
| Temperature Range: | -40°C To +70°C | QoS: | Yes |
| Highlight: | 4GE SFP Layer 2 POE Switch,IEEE802.3 Layer 2 POE Switch,1 Console POE Switch 16 Port |
||
Product Description

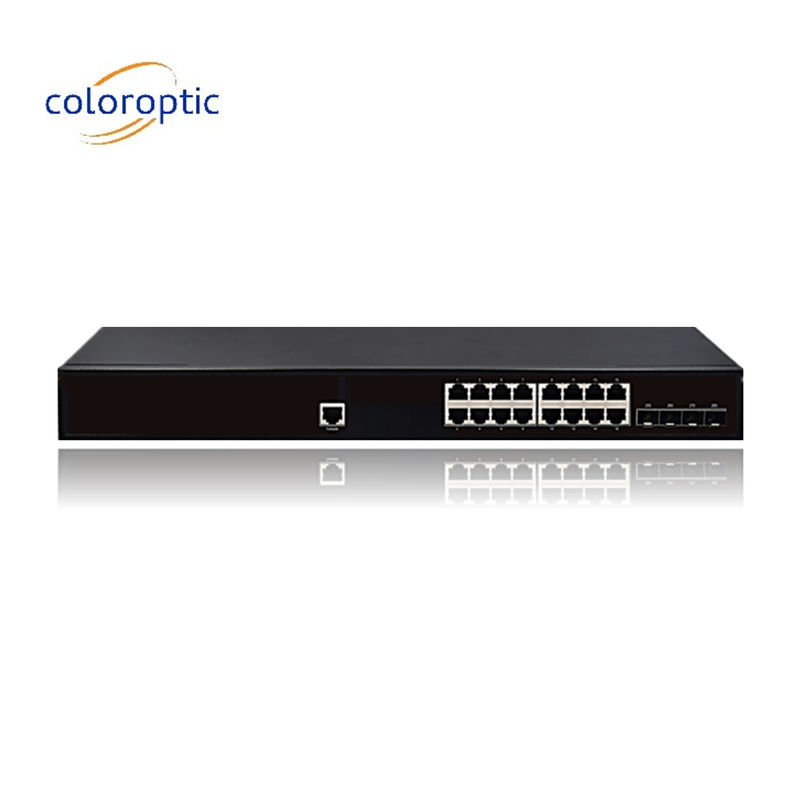

Layer 2 POE Switch 16*10/100/1000M(POE) + 4GE SFP Ports, 1*Console Auto MDI/MDIX
Product Description:
Poe Switches are designed to deliver fast, reliable, and secure data transmission for applications requiring high speed and power over Ethernet (PoE). With a temperature range of -40°C to +70°C, PoE Switches can operate in extreme environments. They are compliant with IEEE 802.3 standards for PoE, and are capable of supporting IEEE802.3 network protocols. With their web, command line, or SNMP management, these robust switches provide an efficient and reliable solution for high-speed PoE applications. Poe Switches are in stock and ready for fast delivery.
Features:
- 16*10/100/1000M(POE) + 4GE SFP Ports
- Comply with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z standards
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Compatible with IEEE802.3at (30w) and IEEE802.3af (15.4w);
- Support port auto flip (Auto MDI/MDIX)
- Exchange mechanism using store-and-forward
- All ports support wire-speed switching
- Automatically supplied to adaptive devices
- Panel indicator monitoring status and help failure analysis
- Support POE Power Management;
- Support POE Watchdog
Technical Parameters:
| Items | CO-24GP4F-L2 |
| Connector Type | 16*10/100/1000M(POE) + 4GE SFP Ports, 1*console |
| Network Protocols | IEEE802.3;IEEE802.3u;IEEE802.3z;IEEE802.3ab; IEEE802.3ae; IEEE802.3x |
| Network Media |
10BASE-T: Cat 3,4,5 UTP(≤100 meter) 100BASE-T: Cat 5 UTP(≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
| Performance Specification | Bandwidth: 56Gbps |
| Packet Forwarding Rate: 41.66Mbps | |
| MAC Address: 8K | |
| Flash: 16MByte | |
| DRAM: 512MByte | |
| Power Supply |
Power input: AC100-240V 50/60Hz, DC12V 3A Maximum(PoE on): 280/390W(option) |
| POE power | IEEE802.3af(15.4W) |
| IEEE802.3at(30W) | |
| Fans | 2*Fans |
| Working Environment |
Operating Temperature: -15℃ ~ 55℃; Storage Temperature: -40℃ ~ 85℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
| MTBF | 100,000 hours |
| Outline dimensions | 440mm*220mm*44mm (W*D*H) |
Applications:
Poe Switches are the perfect solution for your security CCTV network. Color Optic's CO-24GP4F-L2 has everything you need for reliable performance. This switch offers 2/3/4 layers of network media along with IEEE802.3 network protocols. It also supports 10BASE-T/ 100BASE-T/1000BASE-TX with Power over Ethernet and is compatible with AC100-240V 50/60Hz power supply. With all these features, you can be assured that your network will be secure and reliable. Plus, Color Optic's Poe Switches are always in stock, so you don't have to worry about stocking up or running out. Get your Poe Switches today and enjoy the benefits of a secure and reliable network.
Customization:
|
|
|
|
| L2 features | MAC |
MAC Black Hole Port MAC Limit |
| VLAN |
4K VLAN entries Port-based/MAC-based/IP subnet-based VLAN PVLAN to realize port isolation and save public-vlan resources GVRP |
|
| Spanning tree protocol |
IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP) |
|
| Port |
Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring and traffic mirroring |
|
| Security features | User’s security |
Anti-ARP-spoofing Anti-ARP-flooding IP Source Guard create IP+VLAN+MAC+Port binding Port Isolation MAC address binds to port and port MAC address filtration IEEE 802.1x and AAA/Radius authentication |
| Device security |
Anti-DOS attack(such as ARP,ICMP attack), ARP detection, worm and Msblaster worm attack SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users |
|
| Network security |
User-based MAC and ARP traffic examination automatic ARP protection based on MAC address and ARP packet suppression or automatic user block of ARP traffic detection Dynamic ARP table-based binding IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet DHCP Option82 and PPPoE+ upload user’s physical location DHCP snooping / IP source Guard / 802.1X / rich security features |
|
| Service features | ACL |
Standard and extended ACL Time Range ACL Packet filter providing filtering based on source/destination MAC address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range, or invalid frame. System supports concurrent identification at most 50 service traffic Packet filtration of L2～L7 even deep to 80 bytes of IP packet head |
| QoS |
Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark transmission of high-priority packets with various traffic classification and QoS flow control functions CAR(Committed Access Rate),Traffic Shaping and flow statistics Packet mirror and redirection of interface and self-defined flow Super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR. Congestion avoid mechanism,including Tail-Drop and WRED |
|
| Multicast |
IGMPv1/v2/v3 IGMPv1/v2/v3 Snooping IGMP Filter MVR and cross VLAN multicast copy IGMP Fast leave IGMP Proxy MLDv2/MLDv2 Snooping |
|
| Reliability | Loop protection | Loopback-detection |
| Link protection |
RSTP/MSTP LACP |
|
| Maintenance | Network maintenance |
Telnet-based statistics LLDP 802.3ah Ethernet OAM RFC 3164 BSD syslog Protocol Ping and Traceroute |
| Device management |
Command-line interface(CLI), Console, Telnet and WEB configuration System configuration with SNMPv1/v2/v3 RMON (Remote Monitoring)1/2/3/9 groups of MIB NTP(Network Time Protocol) WEB-based network management Ping and Traceroute |
|
.
Support and Services:
At Poe Switches, we strive to provide our customers with the best possible technical support and service. We offer a range of services for troubleshooting and resolving any issues you may have with our products.
- Installation Support: Our team can help you install and set up your Poe Switches products, ensuring that you get the best performance from them.
- Technical Support: Our technical support team is available to answer any questions you may have about our products and help you troubleshoot any issues you may be having.
- Warranty Service: All Poe Switches products come with a one-year limited warranty. If you experience any issues with your product during the warranty period, we will repair or replace it at no cost to you.
If you have any questions or concerns, please don't hesitate to contact us.
