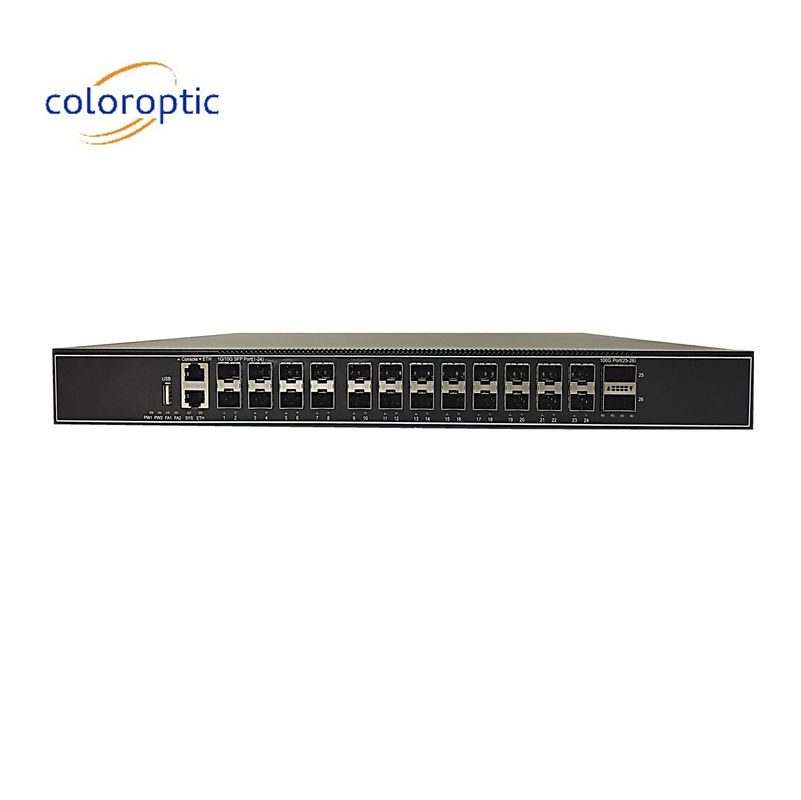

24 Ports 10GE Layer 3 Core Network Switch With 2*40GE Ports And SSH Security
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-24X2Q-L3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Layer: | 3 | Security: | 802.1x, SSH, SSL |
|---|---|---|---|
| Port Number: | 24 | Connector Type: | 24*10GE, 2*40GE Ports |
| Warranty: | 3 Years | Operating Temperature: | -40 To 70°C |
| Network Media: | 10BASE-T/100BASE-T/ 1000BASE-TX | Management: | Web-based GUI |
| Highlight: | 10GE Core Network Switch,SSH Security Core Network Switch,Network 24 Port Layer 3 Switch |
||
Product Description
Feature-Packed Core Network Switch With 24*10GE, 2*40GE Ports And SSH Security
Product Description:
CO-24X2Q-L3 including 24*10GE,2*40GE ports and 1 console port Layer 3 managed Ethernet switch. Perfect security control strategy and CPU protect policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection; The device supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions. Advanced security functions and advanced quality of service (QoS), can be used as core layer, distribution layer or access layer switch with high density port, switch stacking and easy management, are ideal for various commercial network applications.
Features:
- 24*10GE + 2*40GE Ports
- Comply with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z standards
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Support port auto flip (Auto MDI/MDIX)
- Exchange mechanism using store-and-forward
- All ports support wire-speed switching
- Automatically supplied to adaptive devices
- Panel indicator monitoring status and help failure analysis
- L3 management, support DHCP Server, QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2；
- Support STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, support remote loopback monitoring and control(802.3ah OAM); Support IPV4/IPV6
- Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN;
- Support IP address + MAC address + VLAN+Port binding, DHCP Snooping, support IP source and DAI protection;
Technical Parameters:
| Items | CO-24X2Q-L3 |
| Connector Type | 24*10GE + 2*40GE Ports,1*console |
| Network Protocols | IEEE802.3;IEEE802.3u;IEEE802.3z;IEEE802.3ab; IEEE802.3ae; IEEE802.3x |
| Network Media |
10BASE-T: Cat 3,4,5 UTP(≤100 meter) 100BASE-T: Cat 5 UTP(≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
| Performance Specification | Bandwidth:880Gbps |
| Forwarding Capacity:480Mpps | |
| MAC Address:16K | |
| Flash:1G | |
| DRAM:1G | |
| Power Supply | Power input: AC100-240V 50/60Hz |
| Working Environment |
Operating Temperature: 0℃ ~ 45℃; Storage Temperature: -25℃ ~ 70℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 90%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
| MTBF | 100,000 hours |
| Outline dimensions | 440mm*320mm*44mm (W*D*H) |
Applications:
Color Optic CO-24X2Q-L3 Core Network Switch is a highly reliable and secure networking equipment, with a 3-year warranty and outstanding service features. It is a great choice for businesses and organizations that need a reliable, easy-to-manage network topology. It has a wide range of routing protocols including OSPF, BGP, RIP, and EIGRP and offers Quality of Service (QoS) to prioritize traffic and prioritize applications. The device also supports robust network security, with advanced authentication and encryption protocols in place. Its dimensions of 440mm*220mm*44mm and operating temperature of -40 to 70°C make it ideal for a wide range of scenarios and applications. It is also easy to maintain and manage, with a comprehensive device management interface.
Customization:
|
|
|
|
| L2 features | MAC |
MAC Black Hole Port MAC Limit |
| VLAN |
4K VLAN entries Port-based/MAC-based/IP subnet-based VLAN PVLAN to realize port isolation and save public-vlan resources GVRP |
|
| Spanning tree protocol |
IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP) |
|
| Port |
Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring and traffic mirroring |
|
| Security features | User’s security |
Anti-ARP-spoofing Anti-ARP-flooding IP Source Guard create IP+VLAN+MAC+Port binding Port Isolation MAC address binds to port and port MAC address filtration IEEE 802.1x and AAA/Radius authentication |
| Device security |
Anti-DOS attack(such as ARP,Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users |
|
| Network security |
User-based MAC and ARP traffic examination automatic ARP protection based on MAC address and ARP packet suppression or automatic user block of ARP traffic detection Dynamic ARP table-based binding IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet Port-based broadcast/multicast suppression and auto-shutdown risk port URPF to prevent IP address counterfeit and attack DHCP Option82 and PPPoE+ upload user’s physical location DHCP snooping / IP source Guard / 802.1X / rich security features Plaintext authentication of OSPF,RIPv2 and BGPv4 packets and MD5 cryptograph authentication |
|
| IP routing | IPv4 |
ARP Proxy DHCP Relay DHCP Server Static route RIPv1/v2 OSPFv2 BGPv4 ECMP Strategy route Route policy MPLS L3VPN,MPLS L2VPN and VPLS |
| IPv6 |
ICMPv6 ICMPv6 redirection DHCPv6 ACLv6 OSPFv3 BGP RIPng IPv6 and IPv4 dual stack |
|
| Service features | ACL |
Standard and extended ACL Time Range ACL Packet filter providing filtering based on source/destination MAC address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range, or invalid frame. System supports concurrent identification at most 50 service traffic Packet filtration of L2～L7 even deep to 80 bytes of IP packet head |
| QoS |
Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark transmission of high-priority packets with various traffic classification and QoS flow control functions CAR(Committed Access Rate),Traffic Shaping and flow statistics Packet mirror and redirection of interface and self-defined flow Super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR. Congestion avoid mechanism,including Tail-Drop and WRED |
|
| Multicast |
IGMPv1/v2/v3 IGMPv1/v2/v3 Snooping IGMP Filter MVR and cross VLAN multicast copy IGMP Fast leave IGMP Proxy PIM-SM/PIM-DM/PIM-SSM MLDv2/MLDv2 Snooping |
|
| Route | VRRP | Support VRRP route backup |
| Functions | Static route | |
| RIP(V1/V2) / OSPF(V2) / BGP | ||
| Reliability | Loop protection |
ERRP Loopback-detection |
| Link protection |
FlexLink RSTP/MSTP LACP BFD |
|
| Device protection |
VRRP host backup Double fault-tolerant backup of host program and configuration files Strictly follow the relevant standards, and other mainstream manufacturers fully interoperability |
|
| Maintenance | Network maintenance |
Telnet-based statistics RFC3176 sFlow LLDP 802.3ah Ethernet OAM RFC 3164 BSD syslog Protocol Ping and Traceroute |
| Device management |
Command-line interface(CLI), Console, Telnet and WEB configuration System configuration with SNMPv1/v2/v3 RMON (Remote Monitoring)1/2/3/9 groups of MIB NTP(Network Time Protocol) WEB-based network management Ping and Traceroute |
|
Packing and Shipping:
Core Network Switch is packaged with the utmost care to ensure your product arrives in perfect condition. The product is packaged in an anti-static bag, bubble wrap, and a cardboard box. This ensures that your product is protected from any damage during shipping.
Once the product is packaged, it is shipped via a reliable courier service. The courier will ensure that your product is delivered to the desired location in a timely manner. The shipping cost will depend on the destination and weight of the package.
At Core Network Switch, we take great care to make sure your product is properly packaged and shipped in a safe and secure manner.
