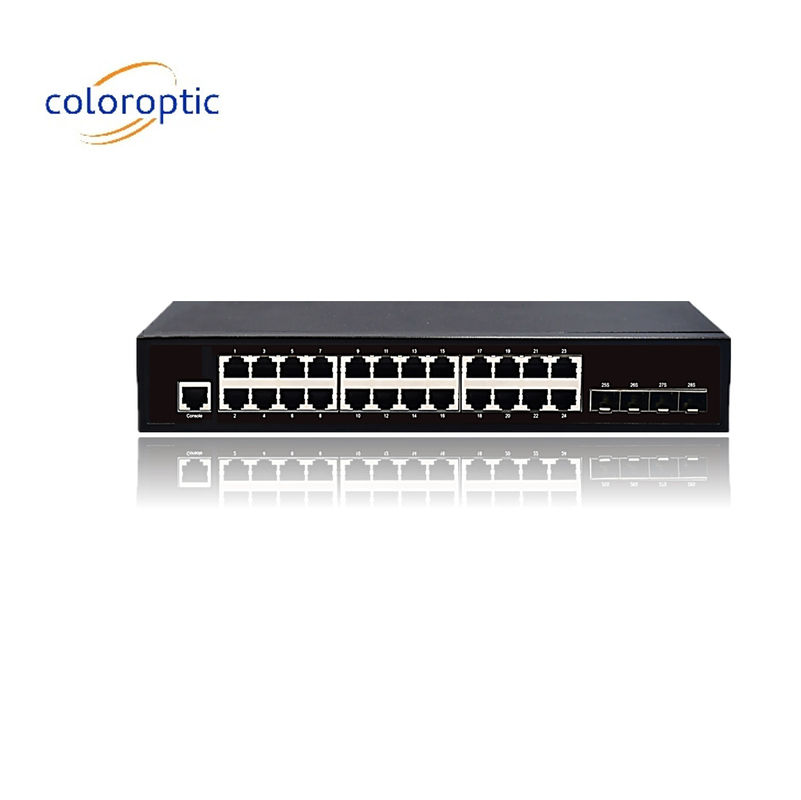

3 Layer 24 Ports Core Network Switch 10/100/1000M 4*GE SFP Ethernet Uplink
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-24G4F-L2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Management: | Web-based GUI | VLAN Support: | Yes |
|---|---|---|---|
| Layer: | 3 | QoS: | Yes |
| Routing Protocols: | OSPF, BGP, RIP, EIGRP | Network Media: | 10BASE-T/100BASE-T/ 1000BASE-TX |
| Network Protocols: | IEEE | Dimensions: | 440mm*220mm*44mm |
| Highlight: | 3 Layer Core Network Switch,SFP Core Network Switch,Uplink 24 Ports Network Switch |
||
Product Description
Core Network Switch With L2 SNMP Management 24 Ports 10/100/1000M + 4*GE SFP Ethernet Uplink
Product Description:
Features:
-
Items CO-24G4F-L2 Connector Type 24 Ports 10/100/1000M + 4*GE SFP Ethernet Uplink Network Protocols IEEE802.3;IEEE802.3u;
IEEE802.3x;IEEE802.3ab
Network Media 10BASE-T: Cat 3,4,5 UTP(≤100 meter)
100BASE-T: Cat 5 UTP(≤100 meter)
1000BASE-TX: Cat5 or more UTP (≤100 meter)
Performance Specification Bandwidth: 44Gbps MAC Address: 8K Packet Buffer Memory: 4M Packet Forwarding Rate: 14.88Mpps Forwarding Mode: Store-And-Forward Power Supply Power input: AC100-240V 50/60Hz,
Output: 52V2.3A,
Power Budget: 45W
Working Environment Operating Temperature: -20℃ ~ 50℃;
Storage Temperature: -40℃ ~ 85℃;
Operating Humidity: Max 90%, non-condensing
Storage Humidity: Max 95%, non-condensing
Working Height: Max to 10,000 feet (3,000 meters)
Storage Height: Max to 10,000 feet (3,000 meters)
Physical Parameter Product Dimensions: 280*180*44mm
Package Dimensions: 425*262*44.5mm
N.W: 2.2KG
G.W: 3KG
Led indicator PWR Power supply indicator Lighting:Powered
Un-Light:No Power
1-10
RJ-45 ACT indicator
(Green)
Lighting:Connecting
Flashing:Data Transmit
Un-Light:Disconnect
MTBF 100,000 hours
Technical Parameters:
| Port Management | Enable/Disable Port |
| Speed,Duplex,MTU Setting | |
| Flow-control | |
| Port Information Check | |
| Port Mirroring | Supports both side-way port mirroring |
| Port Speed Limit | Supports port-based input / output bandwidth management |
| Port Isolation | Support the downlink port isolation, and can communicate with the uplink port |
| Storm Suppression |
Supports unknown unicast, multicast, unknown multicast, broadcast type storm suppression Storm suppression based on bandwidth regulation and storm filtering |
| Link Aggregation |
Support static manual aggregation Support LACP dynamic aggregation |
| VLAN | Access Trunk Hybrid |
| Support port, protocol, MAC-based VLAN partitioning | |
| Support GVRP dynamic VLAN registration | |
| Voice VLAN | |
| MAC | Support static addition, deletion |
| MAC address learning limit | |
| Support dynamic aging time setting | |
| Spanning tree |
Support STP spanning tree protocol Supports RSTP Rapid Spanning Tree Protocol Supports MSTP Rapid Spanning Tree Protocol |
| Multicast |
Support static addition, deletion IGMP-snooping |
| Support MLD-Snooping | |
| Support v1/2/3 dynamic multicast monitor | |
| DDM | Support SFP/SFP+DDM |
| ACL | Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port |
| Qos | Based on 802.1p (COS) classification |
| Based on DSCP classification | |
| Classification based on source IP, destination IP, and port number | |
| Support SP, WRR scheduling strategy | |
| Support flow rate limit CAR | |
| LLDP | Support LLDP link discovery protocol |
| User settings | Add/delete users |
| Log | User login, operation, status, events |
|
Anti-attack |
DOS defense |
| Support CPU protection and limits the rate of sending cpu packets | |
| ARP binding (IP, MAC, PORT binding) | |
| Certification | Support 802.1x port authentication |
| Support AAA certification | |
| Network diagnosis | Support ping,telnet,trace |
| System Management | Device reset, configuration save/restore, upgrade management, time setting, etc. |
| CLI | Support serial port command line management |
| SSH | Support SSHv1/2 remote management |
| TELNET | Support telnet remote management |
| WEB | Support Layer 2 settings, Layer 2 and Layer 3 monitor |
| SNMP | SNMP V1/V2/V3 |
| Support trap:ColdStart,WarmStart,LinkDown,LinkUp | |
| RMON | Support RMON v1 |
| Other functions | Support DHCP Snooping,Option82 |
| Support dynamic ARP detection | |
| Support TACACS+ certification | |
| Support DNS certification | |
| Support port security settings | |
| Support MVR protocol | |
| Support cable detection VCT function | |
| Support UDLD protocol |
Applications:
The Color Optic CO-1X1CP Core Network Switch is a powerful and reliable solution for optical broadband networks and route applications. This switch supports 48*10/100/1000M+6*10GE ports, providing high-performance data transmission and switching capabilities. With Quality of Service (QoS) support, this switch can prioritize data traffic and ensure high-speed and reliable communications. It also operates in a wide temperature range of -40 to 70°C, making it suitable for harsh environments. Its compact design makes it easy to install and maintain, while its three-year warranty ensures long-term reliability.
Ideal for network media applications, the Color Optic CO-1X1CP Core Network Switch ensures secure and reliable data transmission with its high-performance features. The switch is equipped with QoS, enabling it to prioritize different types of data traffic and ensure fast and reliable communication. It also offers a wide operating temperature range of -40 to 70°C, making it suitable for harsh environments. With its dimensions of 440mm*220mm*44mm, the switch is compact and easy to install and maintain. The three-year warranty ensures long-term reliability of this powerful and reliable switch.
Customization:
Color Optic's CO-1X1CP Core Network Switch is designed to offer the ultimate in reliability and performance. With 48*10/100/1000M+6*10GE Ports, 10BASE-T/100BASE-T/1000BASE-TX network media, and a dimension of 440mm*220mm*44mm, the CO-1X1CP is perfect for any networking application. Our switch is designed with redundancy and link protection for the highest level of reliability, and the flexibility to adapt to any network. With its high performance and reliable features, the CO-1X1CP Core Network Switch is the perfect choice for your networking needs.
Packing and Shipping:
Packaging and Shipping for Core Network Switch:
The Core Network Switch is packaged with a foam-lined box and securely sealed to protect it during transit. Boxes can be shipped by air or ground, depending on the customer's preference and destination.
The product is labeled with a unique serial number and barcode for easy tracking. All shipments are insured and include a return address for any returns or repairs.
