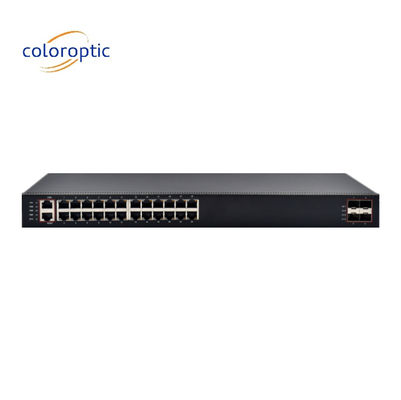

High Performance Layer 3 Core Network Switch With 24 Ports 4*10G SFP+ Ports
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-24G4X-L3R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Connector Type: | 24GE + 4*10GE Ports,1*console | Power Supply: | AC/DC |
|---|---|---|---|
| Management: | Web-based GUI | Redundancy: | Yes |
| Routing Protocols: | OSPF, BGP, RIP, EIGRP | Port Number: | 24 |
| Dimensions: | 440mm*220mm*44mm | Network Protocols: | IEEE |
| Highlight: | Core Network Switch 24 Ports,Layer 3 Core Network Switch,High Performance Layer 3 Network Switch |
||
Product Description
High-Performance Layer 3 Core Network Switch With 24-Port And 4*10G SFP+ Ports
Product Description:
CO-24G4X-L3R including 24GE,4*10GE ports and 1 console port Layer 3 managed Ethernet switch. Perfect security control strategy and CPU protect policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection; The device supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions. Advanced security functions and advanced quality of service (QoS), can be used as core layer, distribution layer or access layer switch with high density port, switch stacking and easy management, are ideal for various commercial network applications
Features:
- 24GE + 4*10GE Ports
- Comply with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z standards
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Support port auto flip (Auto MDI/MDIX)
- Exchange mechanism using store-and-forward
- All ports support wire-speed switching
- Automatically supplied to adaptive devices
- Panel indicator monitoring status and help failure analysis
- QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2；
- Support STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, support remote loopback monitoring and control(802.3ah OAM); Support IPV4/IPV6
- Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN;
- Support IP address + MAC address + VLAN+Port binding, DHCP Snooping, support IP source and DAI protection;
Technical Parameters:
| Items | CO-24G4X-L3R |
| Connector Type | 24GE + 4*10GE Ports,1*console |
| Network Protocols | IEEE802.3;IEEE802.3u;IEEE802.3z;IEEE802.3ab; IEEE802.3ae; IEEE802.3x |
| Network Media |
10BASE-T: Cat 3,4,5 UTP(≤100 meter) 100BASE-T: Cat 5 UTP(≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
| Performance Specification | Bandwidth:128Gbps |
| Forwarding Capacity:95.23Mpps | |
| MAC Address:16K | |
| Flash:32M | |
| DRAM:256M | |
| Power Supply | Power input: AC100-240V 50/60Hz |
| Working Environment |
Operating Temperature: 0℃ ~ 45℃; Storage Temperature: -25℃ ~ 70℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 90%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
| MTBF | 100,000 hours |
| Outline dimensions | 280mm*180mm*44mm (W*D*H) |
Applications:
| Items | DES-24G4X-L3R |
| Connector Type | 24GE + 4*10GE Ports,1*console |
| Network Protocols | IEEE802.3;IEEE802.3u;IEEE802.3z;IEEE802.3ab; IEEE802.3ae; IEEE802.3x |
| Network Media |
10BASE-T: Cat 3,4,5 UTP(≤100 meter) 100BASE-T: Cat 5 UTP(≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
| Performance Specification | Bandwidth:128Gbps |
| Forwarding Capacity:95.23Mpps | |
| MAC Address:16K | |
| Flash:32M | |
| DRAM:256M | |
| Power Supply | Power input: AC100-240V 50/60Hz |
| Working Environment |
Operating Temperature: 0℃ ~ 45℃; Storage Temperature: -25℃ ~ 70℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 90%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
| MTBF | 100,000 hours |
| Outline dimensions | 280mm*180mm*44mm (W*D*H) |
.
Customization:
- Brand Name: Color Optic
- Model Number: CO-24G4X-L3R
- Place of Origin: China
- Management: Web-based GUI
- QoS: Yes
- Dimensions: 440mm*220mm*44mm
- Redundancy: Yes
- Port Number: 48
- Reliability: High reliability with strict quality and safety standards
- Network Protocols: Support various network protocols, including IPV4, IPV6, ARP, OSPF and more
- Device management: Easy to manage with web-based GUI
Packing and Shipping:
The Core Network Switch is packaged securely in an appropriate box with all components securely held in place. The box is then sealed and labeled with a clear address label.
The package is then shipped via a reliable carrier such as UPS, FedEx, or DHL, with tracking information available.
