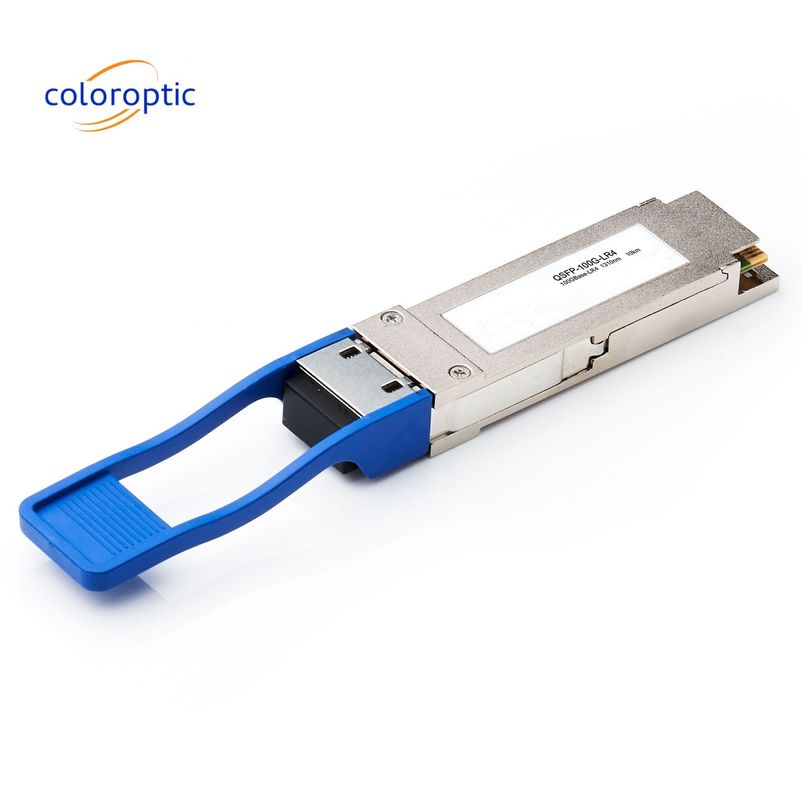

1310nm QSFP28 Transceiver Module SMF 20km Duplex LC Optical Receptacle
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-S81H13L2C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Fiber Type: | SMF | Distance: | 20km |
|---|---|---|---|
| Product Name: | QSFP28 Optical Module | Data Rate: | 100G |
| Voltage Supply: | 3.3V | Temperature Range: | -40~85℃ |
| Receiver Type: | APD | Application: | Ethernet/ OTU4 |
| Highlight: | 1310nm QSFP28 Transceiver Module,QSFP28 Transceiver Module 20km |
||
Product Description
Cisco QSFP-100G-ER4L-S Compatible 100GBase-ER4L QSFP28 40km DOM Duplex LC SMF Optical Transceiver
Product Description:
100G QSFP28 LR4 optical Transceiver integrates receiver and transmitter path on one module. The laser drivers control 4- Distributed Feedback Laser (DFB) with center wavelength of 1296 nm, 1300nm, 1305nm and 1309 nm. The optical signals are multiplexed to a single –mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically demultiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a PIN photo-detector and trans-impedance amplifier, retimed.
This module features a hot-pluggable electrical interface, low power consumption and 2-wire serial interface. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3ba
Features:
- Compliant with 100GBASE-LR4
- Support line rates to 103.125 Gbps
- Integrated LAN WDM DML TOSA / PIN ROSA for up to 20 km reach over SMF
- Digital Diagnostics Monitoring Interface
- Duplex LC optical receptacle
- No external reference clock
- Electrically hot-pluggable
- Compliant with QSFP28 MSA with LC connector
- Case operating temperature range:0 to 70°C
- Power dissipation < 4.5W
Technical Parameters:
| Form Factor: | QSFP28 |
| TX Wavelength: | 1295/1300/1304/1309nm |
| Reach: | 20Km |
| Cable Type | SMF |
| Rate Category: | 100GBase |
| Interface Type: | LR4 |
| DDM: | Yes |
| Connector Type: | Dual LC |
| TX Power Min/Max | -4.3 to 4.5 dBm |
| RX Power Min/Max | -8.6~4.5 dBm |
Applications:
• 100G-LR4 Ethernet
• Datacenter Enterprise networking
Packing and Shipping:
The packaging and shipping of SFP Optical Module is as follows:
- The SFP Optical Module will be packed in a moisture-proof plastic bag and placed in a foam box.
- The box is then placed in a cardboard box with a cushioning material to prevent any unexpected damage.
- The cardboard box will be sealed and placed in a wooden box before shipping.
- The package will be sent out by air, sea or land according to the customer's needs.
