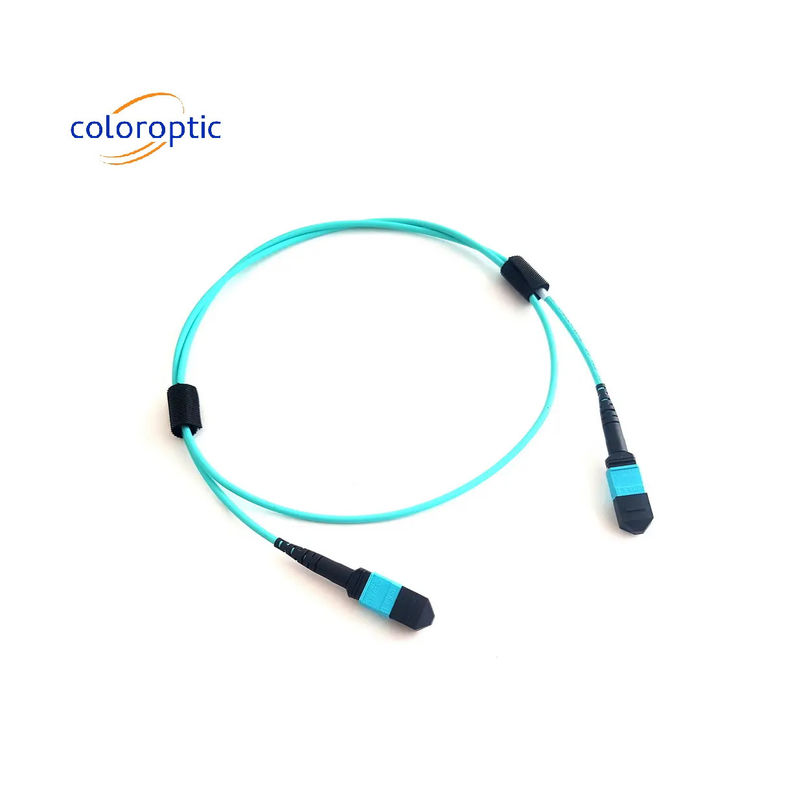

MTP (MPO) 12 FIBRE PATCH CABLE OM3 (50/125) M400 Series US Conec
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE, |
| Model Number: | CO-MPO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 50000 pieces/month |
|
Detail Information |
|||
| Fiber Mode: | OM3 | Storage Temperature: | -40℃~+85℃ |
|---|---|---|---|
| Fiber Count: | 12 | Cable Jacket: | OFNP |
| Connector A: | MPO Female | Operating Temperature: | -20℃~+70℃ |
| Polarity: | Type B | Polish Type: | APC To APC |
Product Description
Supporting SR4 40G and 100G and SR4.2 400G over multimode fibre
Complete Connect’s M400 Series MTP® (MPO) contains a full range or patch cords, breakouts, conversion cables and trunks for SR4 connectivity over multimode or PSM4 over singlemode fibre.
QSFP+, QSFP28 QSFP-DD direct connect

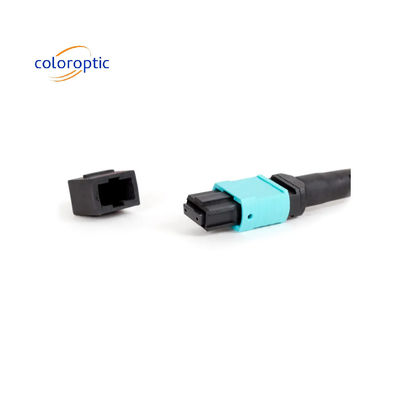

MTP® (MPO) 12 fibre patch cables are mainly used to directly connect between QSFP type SR4 or SR4.2 transceivers or to connect these transceivers to MTP® (MPO) trunks. Polarity B MTP® (MPO) patch cables with female connectors will enable a direct connection for SR4 transmission between two QSFP type transceivers.
Patch to MTP® (MPO) trunk cables
We also stock MTP® (MPO) patch cables that can connect to MTP® (MPO) trunks/backbones. These will typically also be polarity B but will have different gender connectors (male to female).
The polarity and gender of your patch cords will depend on your network layout and type of MTP® (MPO) adaptor used.
Features:
-
Product Series M400-B Polarity Type B (Type A also in stock) Cable 12 fibre micro core cable for internal use Cable Diameter 3 mm Glass Cores Corning® Clearcurve® OM3 MTP (MPO) End 1 MTP Elite® 12 fibre UPC MTP (MPO) End 2 MTP Elite® 12 fibre UPC Insertion Loss Typical < 0.12 dB | 97% of channels ≤ 0.25 dB Return Loss ≥ 25 dB Product Warranty 25 years
Applications
- 40G SR4 (QSFP+)
- 100G SR4 (QSFP28)
- 200G SR4 (QSFP-DD)
- 400G SR4.2 (QSFP-DD)
Transceiver to transceiver connection
These transceivers all require a type B cable with female MTP® (MPO) connector.
Customization:
| Glass Core | Corning® Clearcurve® OM3 |
| Standards | IEC 60793-2-10 Type A1.a.3 ITU G651.1 |
| OMB @ 850 nm | 3500 MHz⋅km to IEC 60793-1-41 |
| OMB @ 1300 nm | 500 MHz⋅km to IEC 60793-1-41 |
| Att. @ 850 nm | ≤ 2.3 dB/km |
| Att. @ 1300 nm | ≤ 0.6 dB/km |
| EMB | 4700 MHz⋅km to IEC 60793-1-49 |
.
Packing and Shipping:
MTP Patch Cords are packaged in protective, durable packaging to ensure safe delivery and optimal protection during shipping. Each patch cord is individually packaged and labeled for easy identification.
Standard packaging includes:
- Plastic bag packaging for individual patch cords
- Carton box packaging for multiple patch cords
- Bubble wrap or foam padding for added protection
Custom packaging options are also available upon request.
We offer a variety of shipping methods to best meet your needs and budget. Our standard shipping options include:
- Express Shipping: 3-5 business days
- Air Freight: 5-7 business days
- Ocean Freight: 20-30 business days
We also offer expedited shipping options for urgent orders.
For international shipments, we provide all necessary shipping documents, including:
- Commercial Invoice
- Packing List
- Certificate of Origin
- Bill of Lading
Please note that any additional documents required by the destination country must be requested at the time of order.
For more information on packaging and shipping, please contact our sales team.
